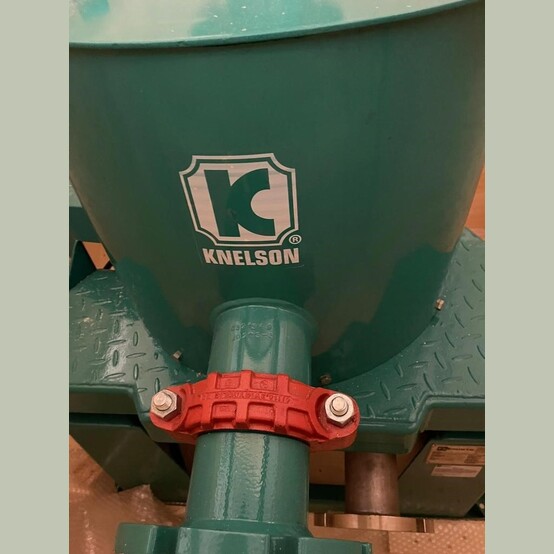

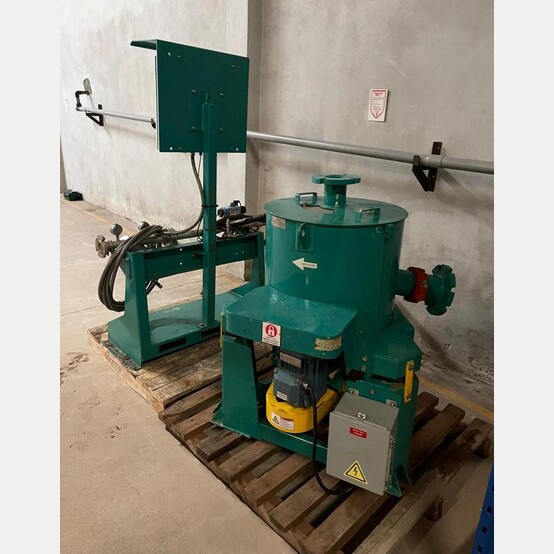

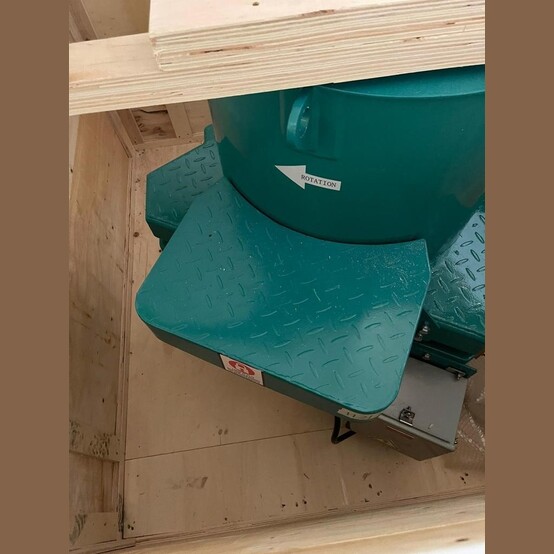

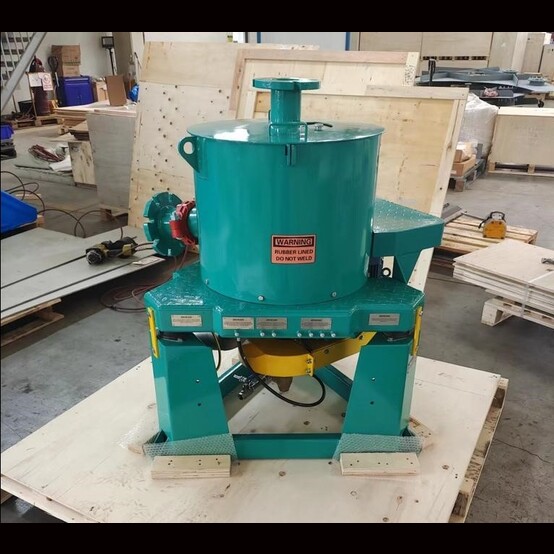

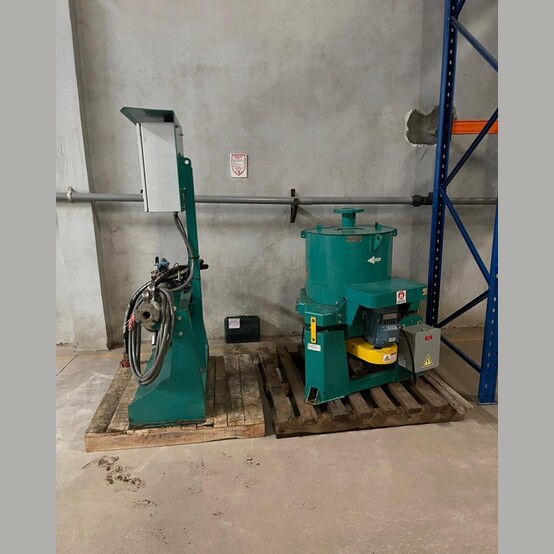

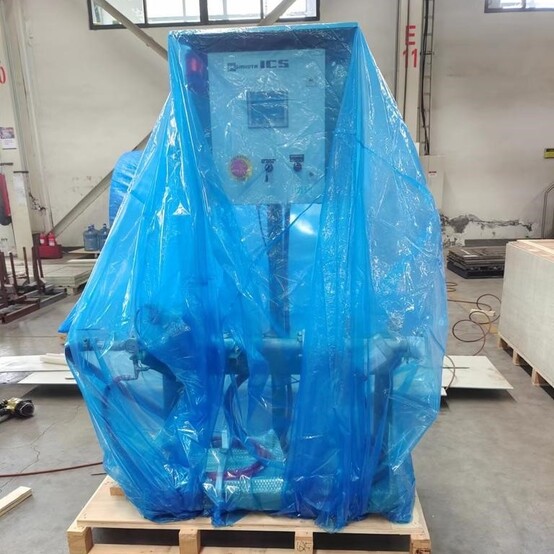

Knelson CD12 Gold Concentrator

• Make: Knelson
• Model: CD12
• Style: Semi-Continuous Center Discharge
• Type: Concentrator
• Condition: Lightly Used - Under 1 Week
• Complete With:
  • Jr. Automation System
  • G5 Urethane Bowl


• General Model Specifications:
  • Solids Feed Capacity: 6.6-22 Tons Per Hour
  • Fluidization Water Required: 18-25 US GPM (4.1-5.7m³/hr.)
  • Max Volumetric Throughput: 120 US GPM (27m³/hr.)
  • Feed Size:
    • Recommended: 1.7mm (10 Mesh)
    • Max: 6mm (1/4in)
  • Active Capture Area: 1,044cm² (162in²)
  • Concentrate Volume: 1.6 Liters
  • Concentrate Weight: 2.5-4.5kg (6-10 Lbs.)
  • Concentrator Net Weight: 263kg (580 Lbs.)
  • Motor Power: 2.3kW (2-3HP)


• Location: Africa
