• Features:
    • Easily Portable.
    • Easy to remove from skid by pulling pins for packing or flying.
    • Excellent drilling performance for size.
    • Weighs very little but well-built and strong.
  • Package Includes:

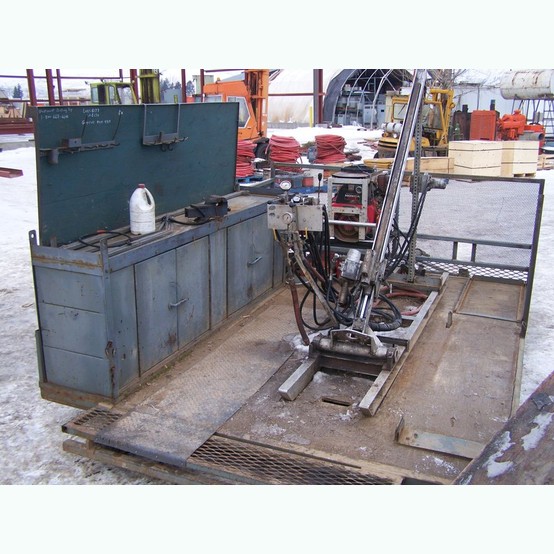

    • Hydracore Pack Drill on Skid Frame:
      • Feed:
        • Length: 40 In. or 68 In.
        • Max Thrust: 2400 lbs. At 2500 P.S.I.
        • Max Pull: 4400 lbs. At 2500 P.S.I.
      • Depth Capacities:
        • Approx. 350 ft. with AW.
      • Hydraulic Reservoir:
        • Capacity – 2 Gallons.
        • With built in heat exchanger.
    • GX620 20 HP Honda Gas Engine.
    • Hydraulic Pump:
      • Type: Gear Pump(Head), Gear Pump (Feed).
      • Volume: .488in/Rev (Head), .071in/Rev (Feed).
      • Relief Pressure: 3000 P.S.I. (Head), 2500 P.S.I. (Feed).
    • Wireline.
    • Mast.
    • 13 GPM Pump with 6.5hp Honda drive motor.
    • Drill rods are AQ TK. 1 1/16” core.
      • Qty: 350’.
      • Plus 70’ of casing.
  • 2,500 ft. of waterline.
  • Station on the one side for core tube emptying/helper station.
