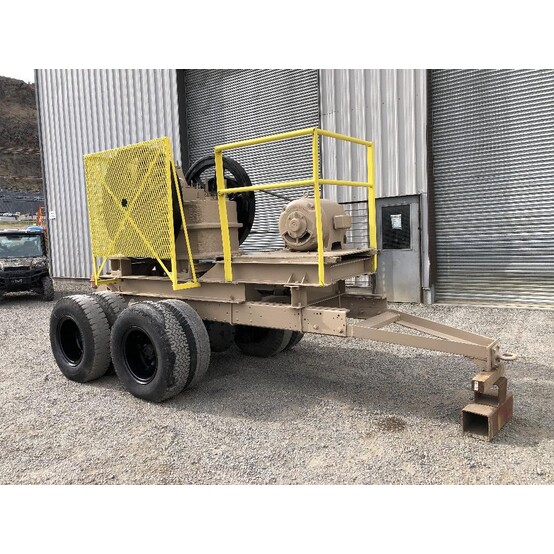

Hadfields 10" x 20" Jaw Crusher

• Make: Hadfields
• Model: 10" x 20"
• S/N: 766A
• Description: Freshly Repainted Hadfields 10"x 20" Jaw Crusher.  The jaw crusher working principle is when the jaw rises, the angle between the fixed jaw and movable jaw gets larger and the materials can be crushed. All stone jaw crushers are used to crush hard rock and block material.

General Model Specifications:

• Jaw Size: 10" x 20"
• Double Toggle Design
• Babbitt Bearings
• Corrugated Jaw Liners (90% Life)
• Belt Driven by English Electric Motor
  • Power Output: 50HP
  • Speed: 1200 RPM
  • Voltage: 480 Volt
  • Phase: 3-Phase
  • Frequency: 60 Hz
• Comes with Belt and Flywheel Guarding
• Mounted on Tandem Axle In-Pit Portable Design
  • With Pintle Hitch
• Fresh Paint Job
• Shipping Dimensions:
  • Length: 12ft
  • Width: 8ft
  • Height: 7.5ft


• Location: Savona, British Columbia, Canada
