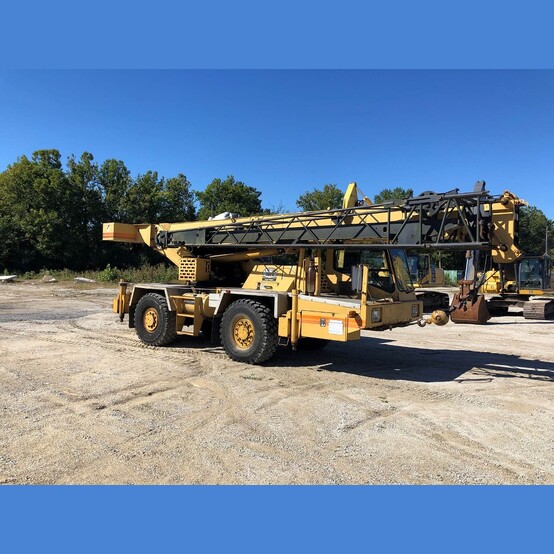

Grove AT422 Crane

  • Make: Grove
  • Model: AT422
  • Year: 1987
  • Hours: 13,533 Hours
  • 16.00R20 Tires
  • Repacked Swivel
  • Rear Steer Option Disabled. Owner Locked the Cylinder-shaft
  • 4 Wheel Drive
  • Max Speed: 90km/h (55mph)

  • 27ft. to 70 ft. (8.3m - 21.4m) Three-Section Full Power Boom
    • Maximum Tip Height: 78ft. (23.8m)
  • 25 ft. to 43 ft. (7.6m to 13.1m) Telescopic Lattice Swing-away Extension Off-Settable at 0°, 15° or 30°.
    • Maximum Tip Height: 121ft. (36.9m)

  • Hoist
    • Maximum Single Line Speed:
      • Bottom Layer: 210 FPM (65m/min)
      • Intermediate Layer: 245 FPM (75m/min)
      • Top Layer: 265 FPM (81m/min)
    • Maximum Single Line Pull:
      • Bottom Layer: 8,100 lbs. (3675 kg)
      • Intermediate Layer: 7,400 lbs. (3355 kg)
      • Top Layer: 6,350 lbs. (2880 kg)

  • Engine
    • Make: Cummins
    • Model: 6BTA 5.9
    • Six Cylinders, Turbocharged and Aftercooled
    • 359 cu. in. (5.9 L)
    • 190 HP (141 kW) @2,500 RPM.
    • 435 ft. lbs. (590 N.m) @1,700 RPM.

  • Transmission
    • 6 Speeds Forward and 3 Reverse.
    • Fully Automatic APC 100 with Engine Mounted Torque Converter.

  • Fuel Tank Capacity: 40 gallons (151 L).

  • Hydraulic System
    • 3 Main Gear Pumps, Combined Capacity 90 G.P.M. (340 LPM)
    • 66 Gallon (250 L) Reservoir
    • System Pressure Test Ports with Quick Release Type Fittings for Each Circuit.

  • Swing
    • Planetary Swing with Foot Applied Multi-Disc Wet Brake.
    • Spring Applied, Hydraulically Released Parking Brake and Plunger Type, 2 Position, Mechanical 360° House Lock, Operated from Cab.
    • Maximum Speed: 2.0 RPM.

  • Overall Dimensions:
    • Length: 32' 8¼" (10,014mm)
    • Width: 7' 10" (2432mm)
    • Height: 11' (3350mm)
    • Weight: 37,780 lbs.(17,135 kg)

  • Location: USA
