• Processing plant includes impact crushing bay, milling circuit, and flotation circuit.
  • Primary ore bin with grizzly and belt feeder.
  • Jeffrey 3 ft. x 5 ft. vibrating feedr.
  • Forano 36 in. wide x 125 ft. long feed conveyor for crusher.

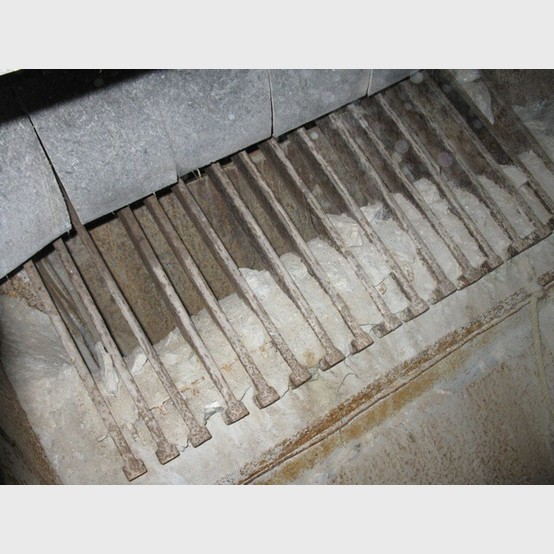

  • Jeffrey 3 ft. x 4 ft. vibrating grizzly feeder.
  • Hazemag AP4 primary impact crusher.
  • Hazemag AP4 secondary impact crusher.

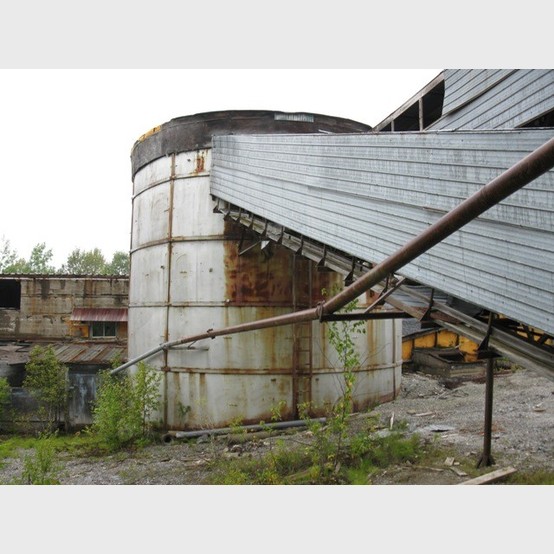

  • Fine ore bin.
  • Forano 30 in. wide x 75 ft. long conveyor.

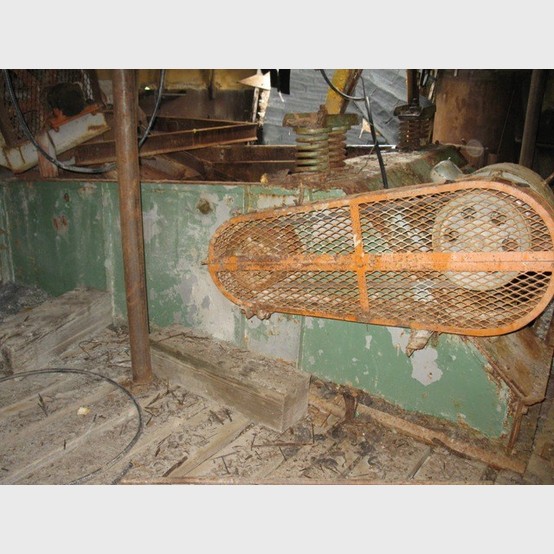

  • Symons 5 ft. x 8 ft. single deck screen.
  • Forano 24 in. wide x 75 ft. long oversize return conveyor.
  • Approx. 30 ft. wide x 25 ft. high steel walled ore bin and house.
  • Norblo bag house dust collector.
  • 3 - Jeffrey 24 in. x 30 in. bin discharge feeders.
  • Forano 24 in. wide x 60 ft. long ball mill feed conveyor.

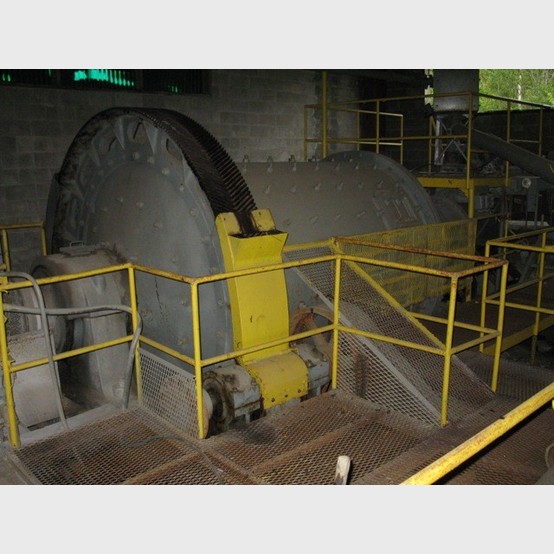

  • Allis Chalmers 7 ft. dia. x 8 ft. long ball mill.
    • 200 hp.

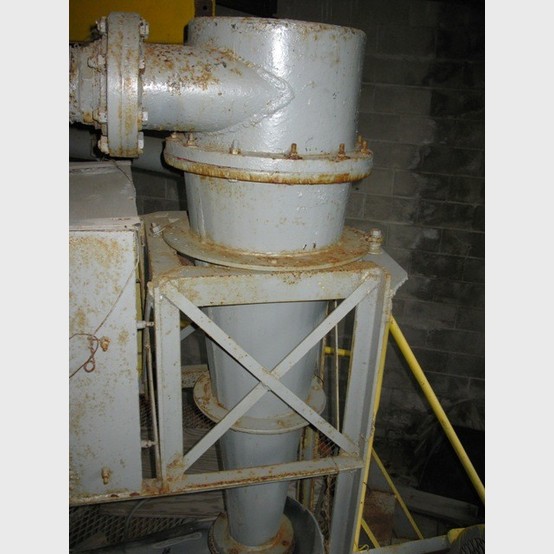

  • After market 15 in. diameter cyclone.
  • Forano 14 in. wide x 20 ft. long ball mill trash oversize conveyor.
  • Allis Chalmers SRL slurry pumps.
    • 1 - 2 in. x 2 in.
    • 2 - 6 in. x 6 in.

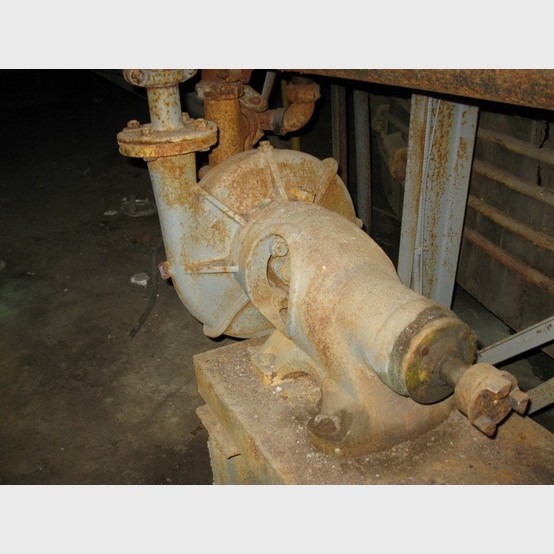

  • 2 - Denver SRL 3 x 3 slurry pumps.

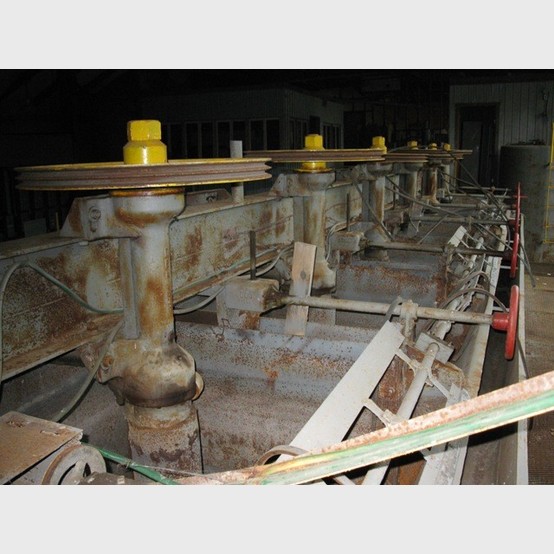

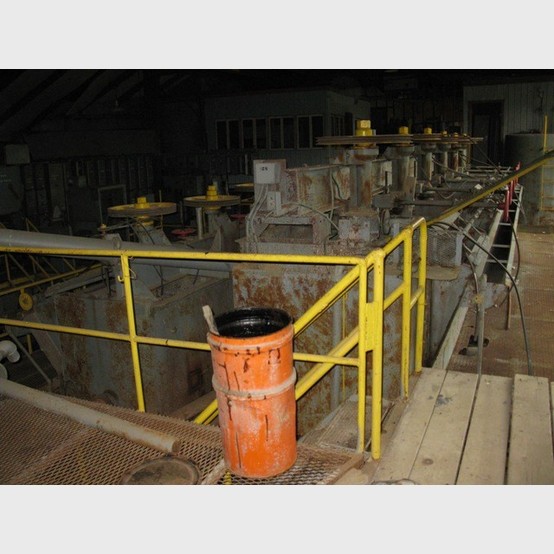

  • Denver DR-30 rougher flotation cells.
    • Bank of 6.

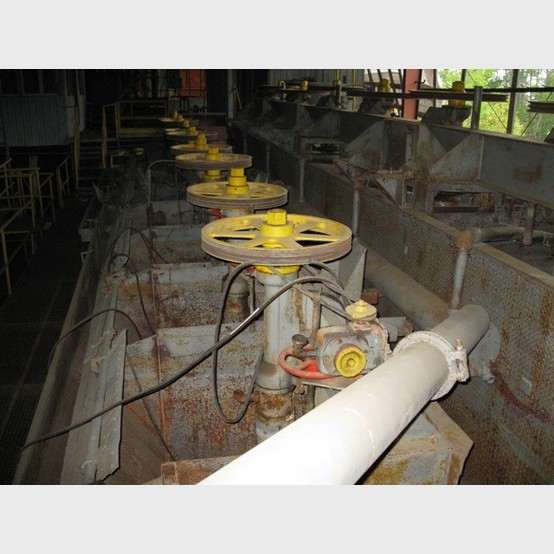

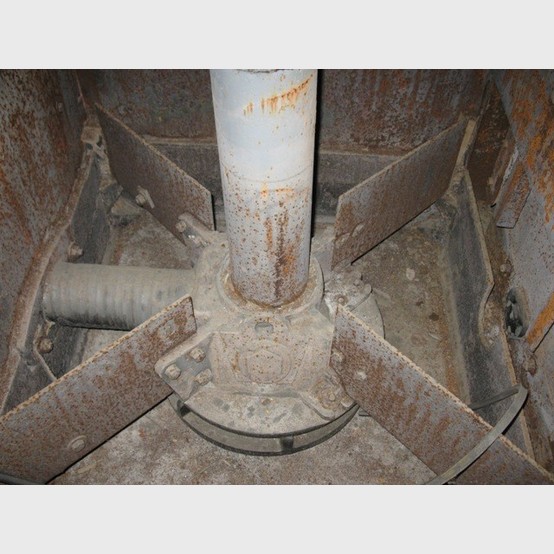

  • Denver DR-24 cleaner flotation cells.
    • Bank of 8.
  • Wood stave 24 ft. dia. x 9 ft. high thickener tank.
  • Dorr Co. 24 ft. dia thickener drive with bridge.

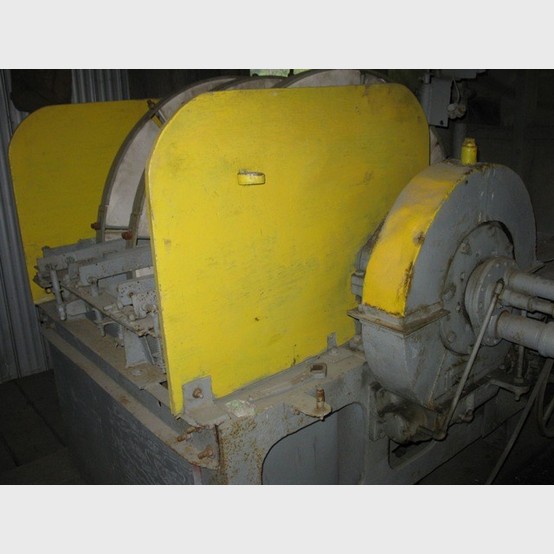

  • Eimco 4 ft. dia. disc filter.
    • 3 discs.
  • 2 - Atlas Copco 500 CFM electric air compressors.
  • Atlas Copco 750 CFM diesel air compressors.
  • 120 ft. long x 50 ft. wide steel frame building with block walls.
