Sold

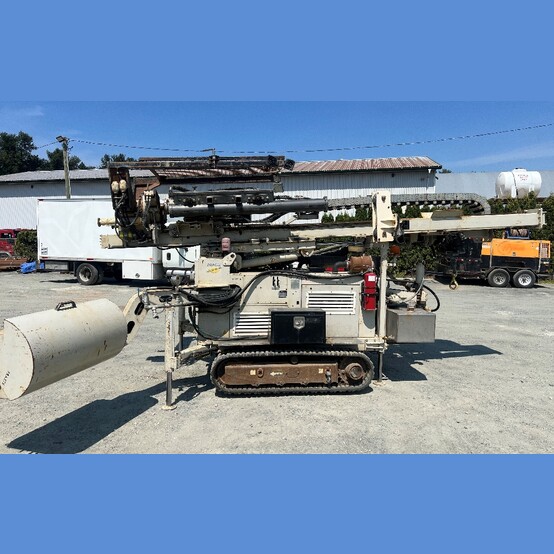

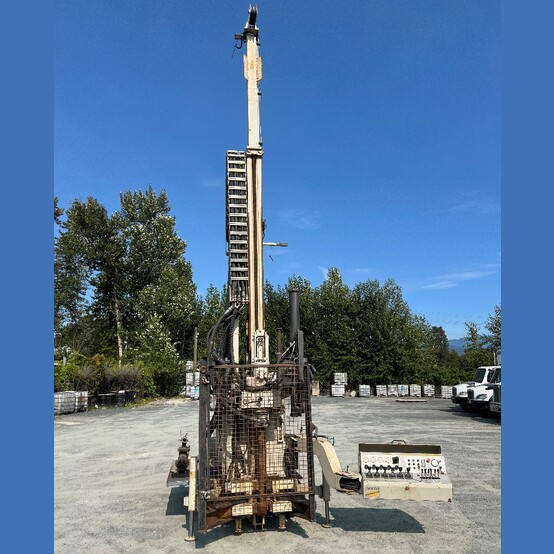

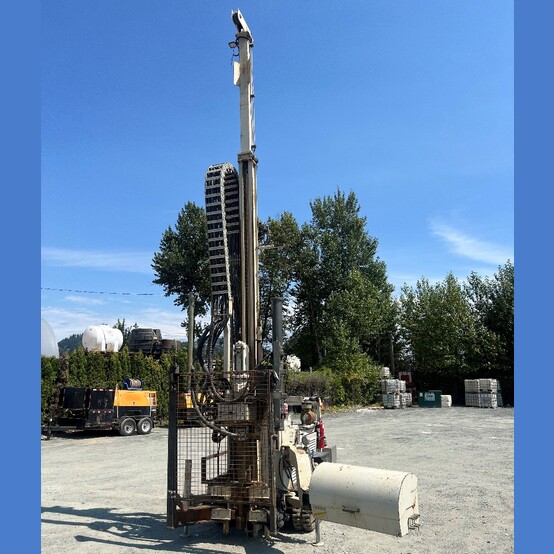

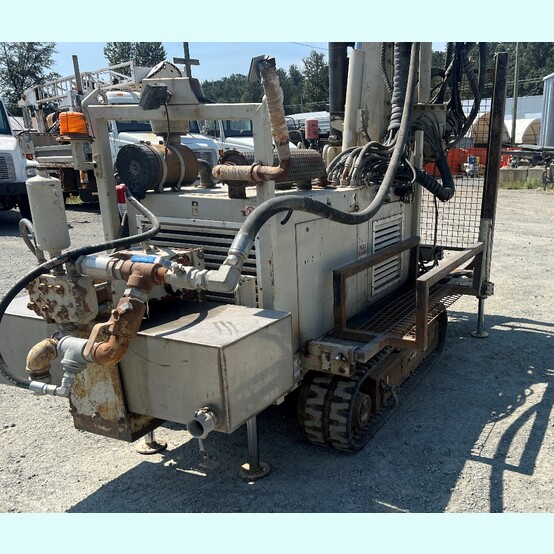

Fraste Multidrill ML Drill Rig

• Make: Fraste
• Model: MULTIDRILL ML
• Type: All Drilling Systems
  • Rotary Drilling with Direct/Reverse Fluid or Air Circulation
  • DTH Hammer
  • Roto-Percussion System
  • Conventional and Wire-Line Coring
• Year: 2012
• Hours: 3,208 Hours on Meter
• Condition: Used Condition
  • Has New Fuel Pump, Alternator and Starter
• Engine Type: Kubota V3800
  • Power Output: 100HP (70.2kW)
  • Emissions: EPA Tier 3
• Winches: Yes
  • Dinamic Oil P6/E Hoisting Winch
• 10ft Stroke
• 20ft Winch Line
• Water Pump: FMC L0618 HD Bean Pump
• Rod Clamp: Dual Breakout Clamp
  • Hydraulic Break-Out Clamp
• Integrated Casing Puller
• Folding Tower
• Factory Designed and Built Safety Cage
• Autohammer: Yes
• Auger Racks: Yes
• Rod Storage: Yes
• Water Tank: Yes


• General Model Specifications:
  • Power: KUBOTA V3800 - Stage IIIA - Tier 3 - 74 Kw (100 Hp)
  • Rotary Head Stroke: 3,500 mm (11.5ft)
  • Pull-Up: 6000 daN (13488 lb-ft)
  • Pull-Down: 3100 daN (6969 lb-ft)
  • Max Rotary Head Torque: 1180 daNm (8703 ft-lbf)
  • Max Rotary Head Speed: 1100 rpm
  • Clamp: Ø 40-250 mm (1.6in-10in)
  • Weight: ~ 6,000 Kg (~ 13,227 lbs.)


• Overall Dimensions:
  • Width: 5ft (1.6m)
    • Operating Width: 6ft-11ft (1.9m-3.4m)
  • Length: 17.5ft (5.3m)
  • Walking Height (Mast Down): 9ft (2.8m)


• Location: Western Canada
