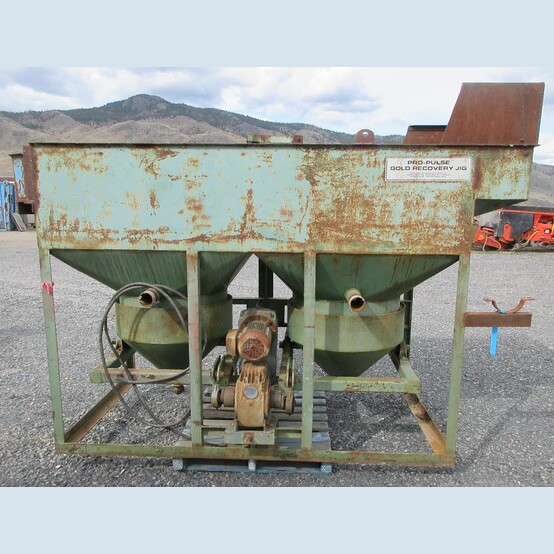

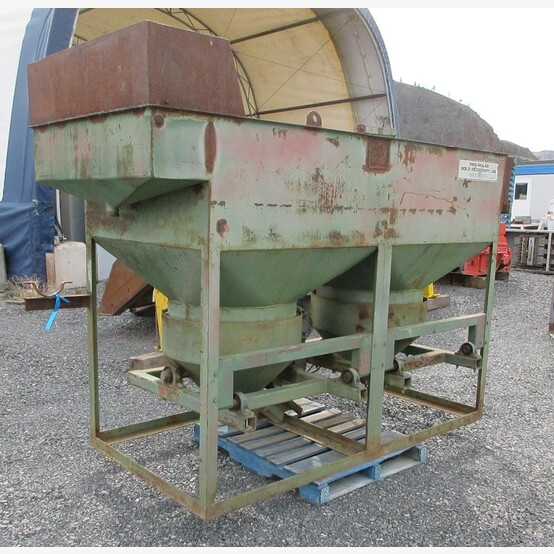

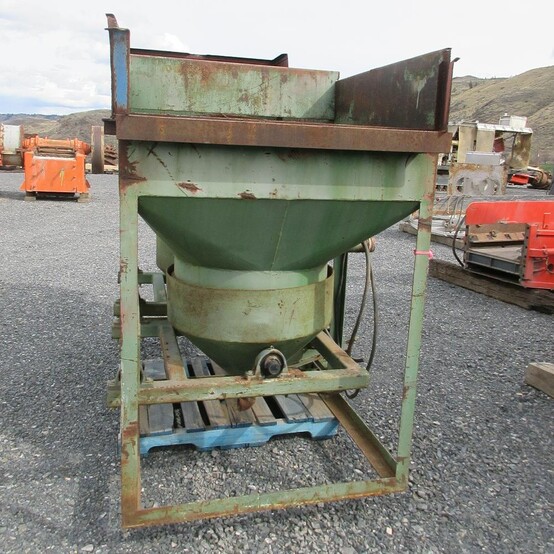

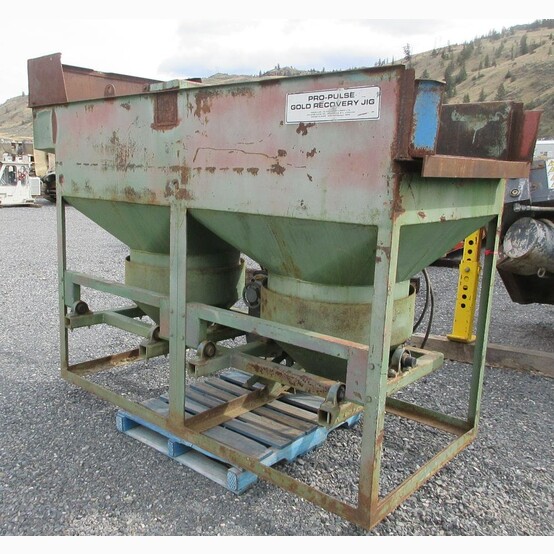

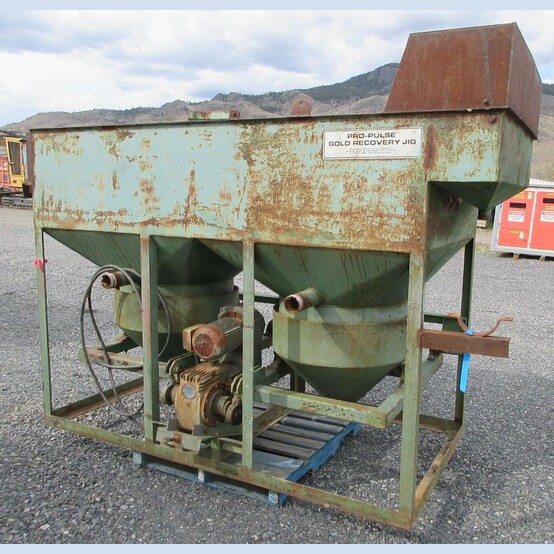

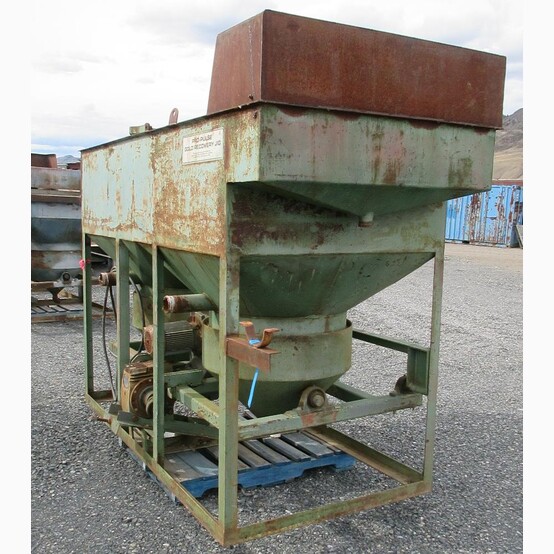

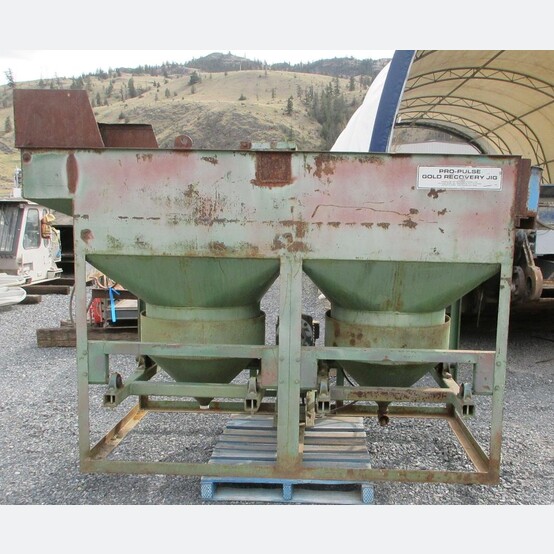

Pro Pulse 4ft Mineral Jig

• Make: Pro Pulse
• Type: Gold Recovery Jig / Mineral Jig

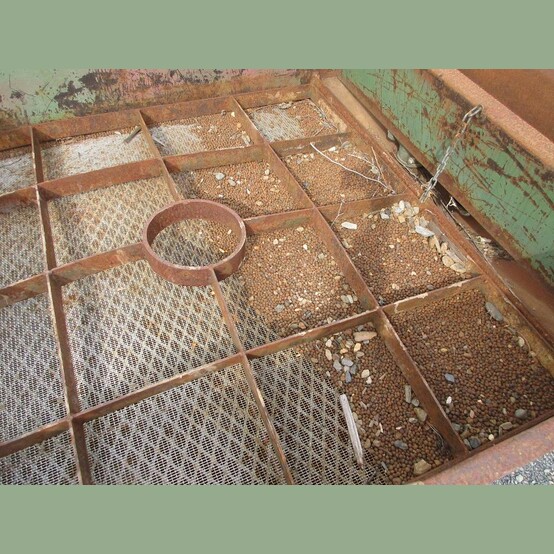

• Hydraulically-Activated Removable Screen Bed
• Size: 4ft Wide x 8ft Long

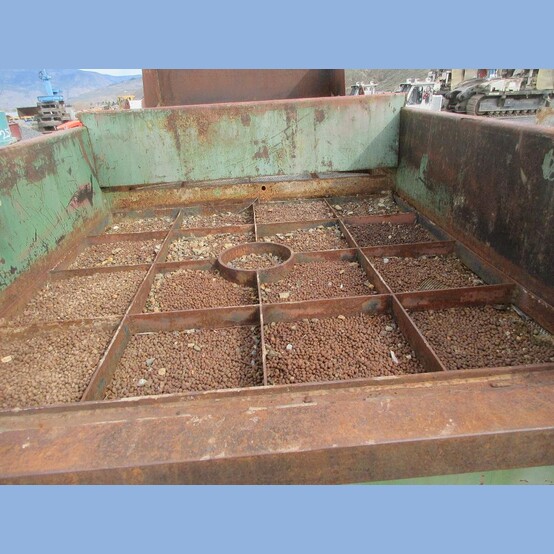

• Screen Beds: Duplex - (2) Screen Beds
  • Screen Bed Size: 48in x 48in
• Capacity: 24-32 YPH Per Screen Bed - 1.5-2yds³ of Solids Per Hour Per Square Foot of Screen Bed Area
• Max Feed Size: Minus 0.5in (½")
• Dilution of Feed: 1:1 - 2:1 by Weight
• Water Requirements: 12-16 GPM Per Square Foot of Jig Area
  • Pressure: 6-8 Lbs. PSI
• 12in High Welded Extension
• Fresh Water Inlet Diameter: 3in Dia.
• Bottom Discharge: 2in Dia.

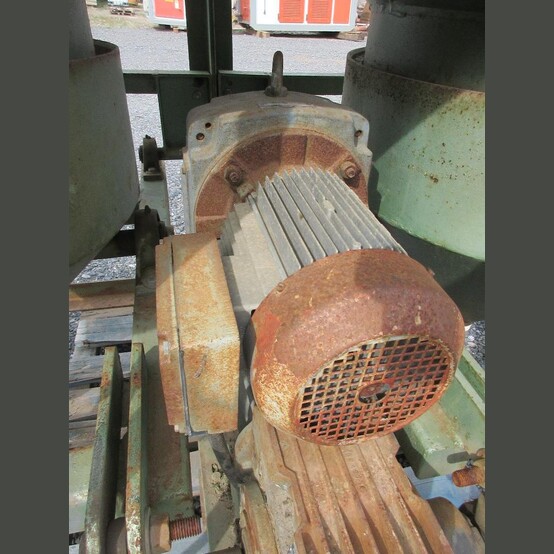

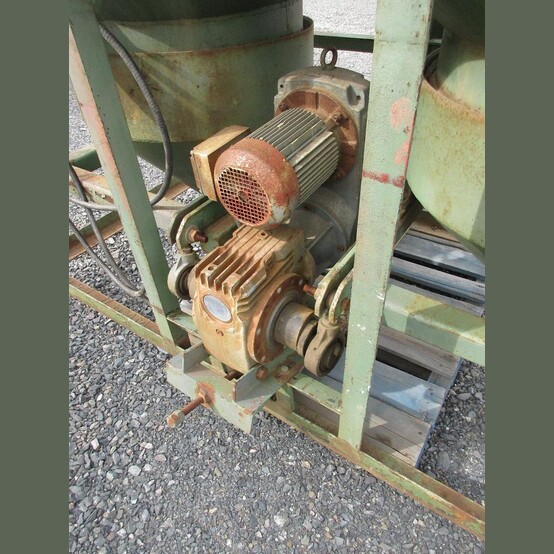

• Drive: SEW Eurodrive Electric Motor
  • Power Output: 5HP
  • Rotating Speed: 47-279 RPM
  • Voltage: 330/575 Volt
  • Current: 9.41/5.40 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase

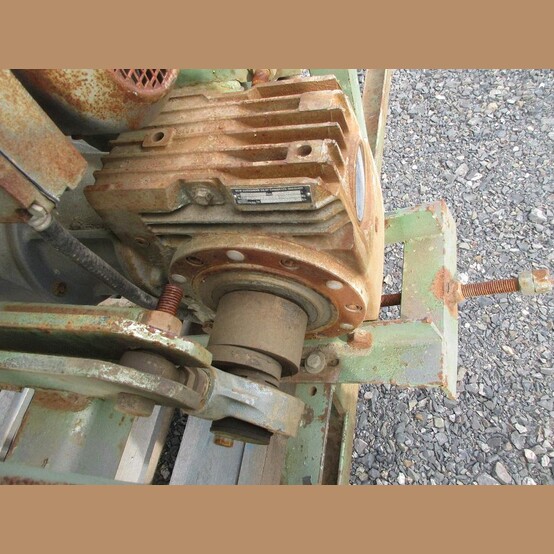

  • Reducer(s):

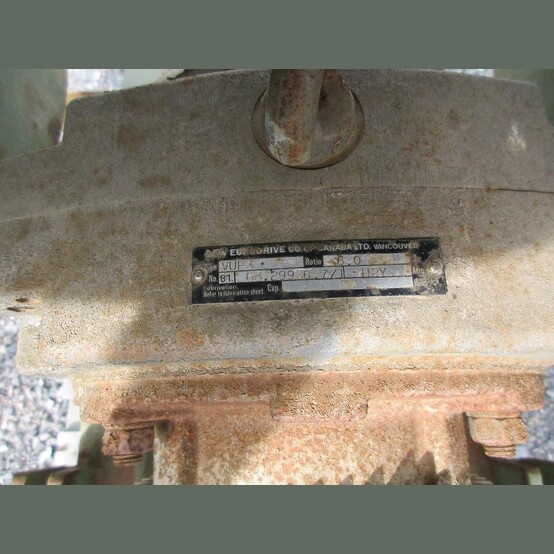

    • SEW Eurodrive VUF
      • Ratio: 6.0-1

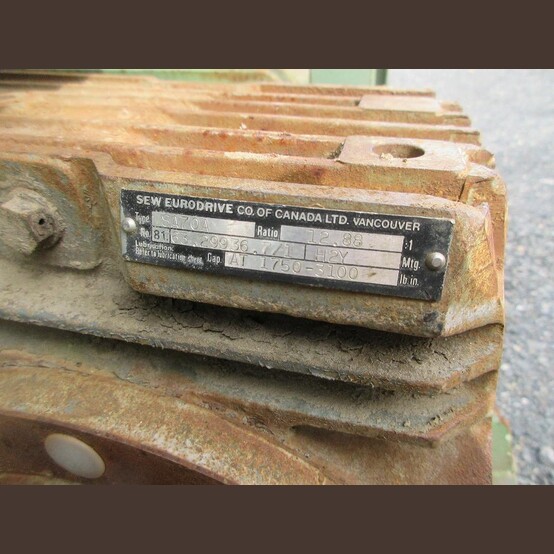

    • SEW Eurodrive SA70A
      • Ratio: 12.88-1


• Overall Dimensions:
  • Length: 117in
  • Width: 64in
  • Height: 86in


• Location: Savona, British Columbia, Canada
