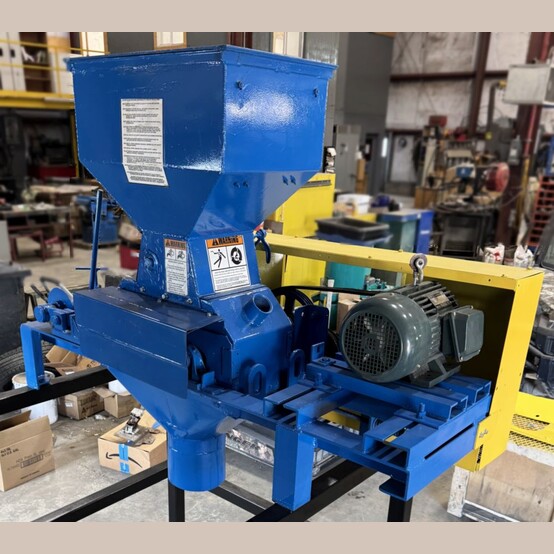

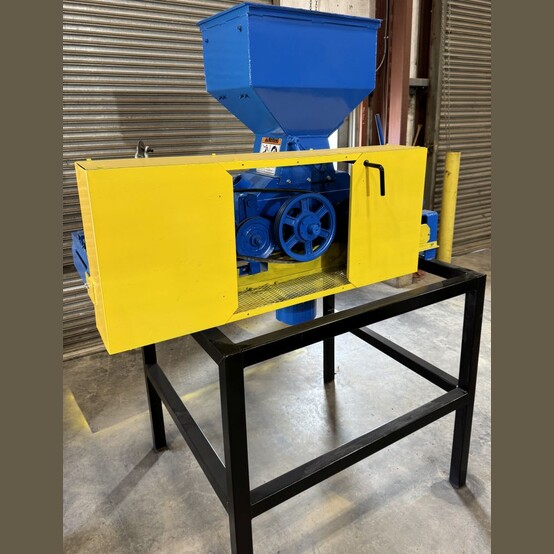

Franklin Miller RM1010M Roll Crusher

• Make: Franklin Miller
• Model: RM 1010M

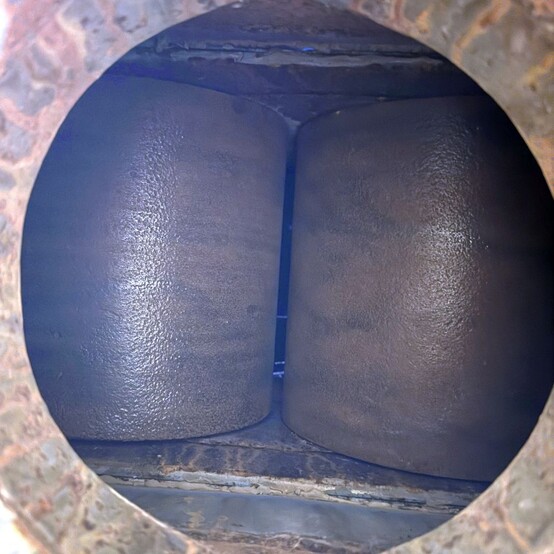

• Rolls Diameter: 10in Diameter x 10in Long
• Manual discharge gap adjustment from .008 in. - .313 in.
• Infeed Hopper Dimensions:

  • Length: 25in
  • Width: 18in
  • Height: 23in
• Discharge Hopper Dimensions:
  • Length: 17in
  • Width: 23in
  • Depth: 8in
  • With 8in Diameter Discharge
• Drive Shive: 12in Dia. x 1.75in Wide - 3 Groove
• Motor:
  • 3hp.
  • 575 Volt
• Mounted on 2.5in x 2.5in Tubing Frame


• Overall Dimensions:
  • Length: 75in
  • Width: 48in
  • Height: 93in


• Location: Savona, British Columbia, Canada
