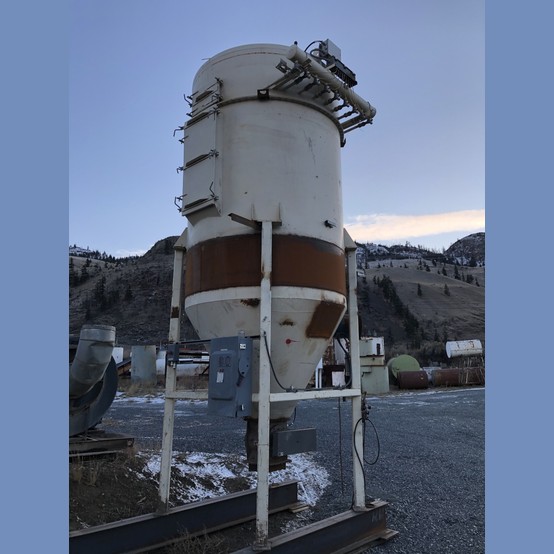

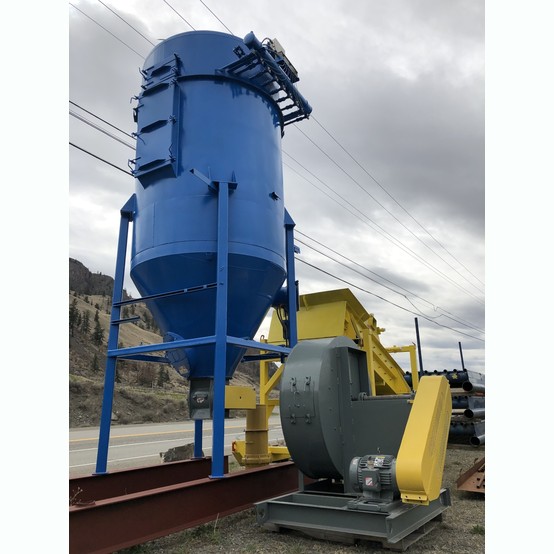

• Model: 58CTBC72IIIG
  • Clean Air Outlet: 12 in. Dia.
  • Contaminated Air Inlet: 12 in. Dia.
  • Sock Dimensions: 6 ft. Dia. x 76 in. Long
    • Approx. 1100 Cubic Feet of Filter Area
  • Cylinder Sections: 7 ft. Dia. x 10 ft. Long
  • Conical Section: 4 ft. 6 in. Long
  • Cake Discharge: 12 in. x 12 in.
    • With 12 in. Rotary Air Lock
    • Chain Driven by an Opperman 2 HP Gear-Head Motor
    • 208-230/460 Volt
    • 57.27 - 1 Ratio
  • Mounted on 4 x 4 SQ Tubing Frame
    • 10 ft. Long x 67 in. x 67 in.
  • Comes with a Chicago 32 in. Dia. Centrifugal Blower.
    • Inlet: 16 in. Diameter.
    • Outlet: 16 in. Dia. x 20 in. High.
    • Fan Dimension: 32 in. Dia. x 15 in. Wide.
    • Belt Driven by Baldor Motor.
      • 15 hp.
      • 208-230/460 Volt.
      • 1760 rpm.
      • Frame: 254T.
  • Overall Dimensions: 60 in. Dia. x 52 in. Wide x 64 in. High.
  • Location: British Columbia, Canada
