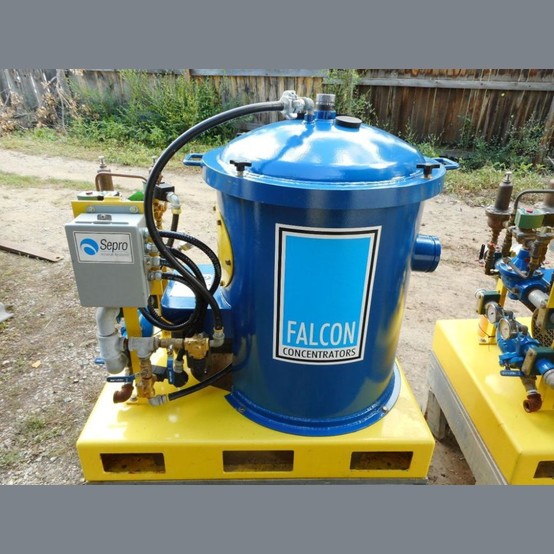

• Model SB250
  • Recommended Solids Capacity: 1-10 t/h.
  • Approximate Slurry Capacity: 20 m3/hr.
  • Concentrating Surface Area: 0.17 m2.
  • G-Force Range
    • Upper: 200.
    • Lower: 50.
  • Motor3 HP high efficiency TEFC electric motor.
  • Process Water Consumption: 1.8-2.7 m3/hr.
  • Continuous Water Supply Pressure: 2-3 bar.
  • Recommended Max Feed Particle Size: 2.0 mm / 2/25 in.
  • Absolute Maximum Particle Size:  2.5 mm / 1/10 in.
  • Maximum Feed Percent Solids: 55-70%.
  • Concentrate Slurry Slush Volume: 50 l.
  • Concentrate Solids Flush Volume: 1010 cm3.
  • Dimensions: 3.4 ft. X 2.2 ft. X 3.34 ft.
  • Includes:
    • E1022 screen/keypad.
    • Mitsubishi PLC.
    • VFD and dynamic brake with standard Falcon control software capable of remote monitoring by customer.

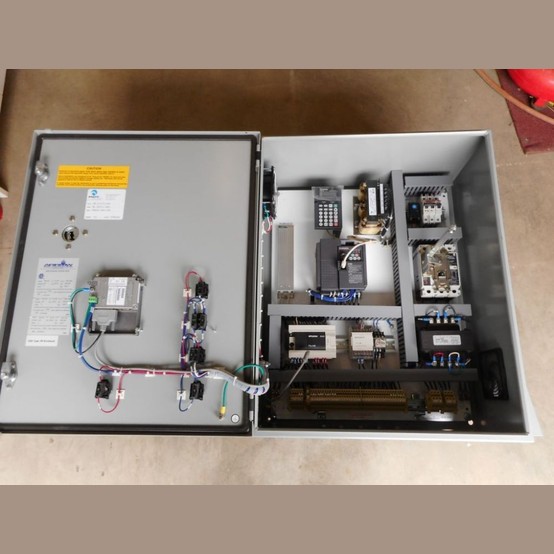

    • 110V control transformer, relays, selector switches, indicator lamps, breakers, and isolators.

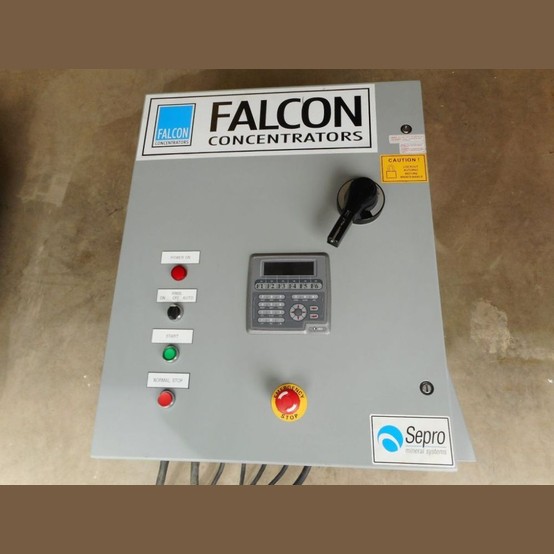

    • Single NEMA 3R panel
  • Rotor: Two stage rotor with polyurethane stratification zone.
  • Concentrate Basket: Replaceable UHMW concentrate basket retention zone.
  • Frame: Heavy duty structural steel frame with oversized shaft, sealed bearings and gear box drive.
  • Features:
    • Rubber lined tailings launder, removable domed lid and impeller.
    • Central feed pipe, rinse manifold and inspection ports.
    • Fluidization piping including water strainer, pressure reducing valve, rotating union & pressure gauge.
    • PRV, flush and rinse solenoids all wired to machine junction box.
  • Weight: 584 lbs/265 kg.
  • Only 1 unit available.
