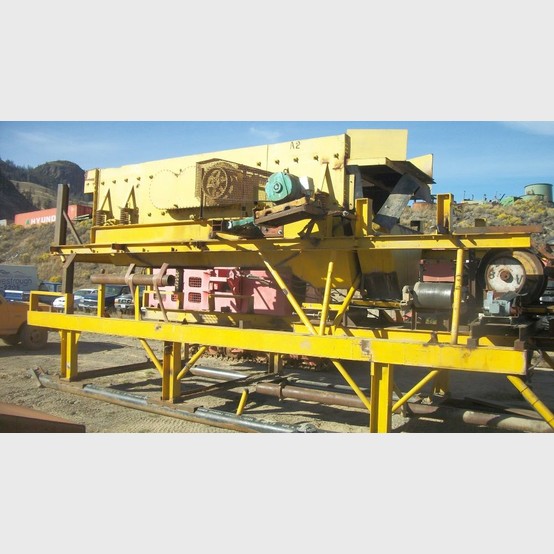

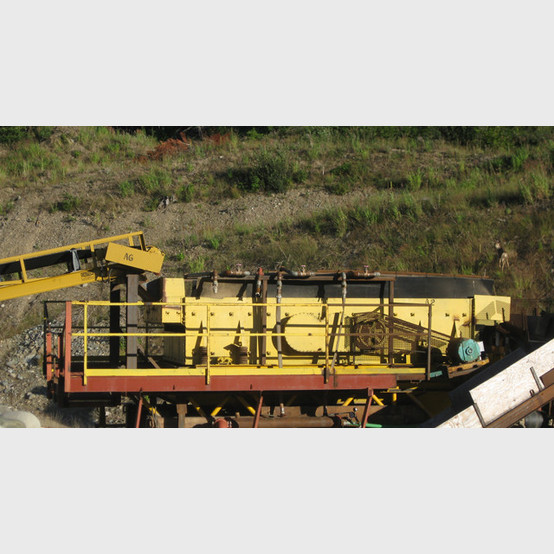

Eljay 6ft x 16ft Horizontal Screen Deck

• Size: 6ft. Wide x 16ft. Long
• Type: Horizontal 2-Deck Wash Screen
• 30HP Drive Motor

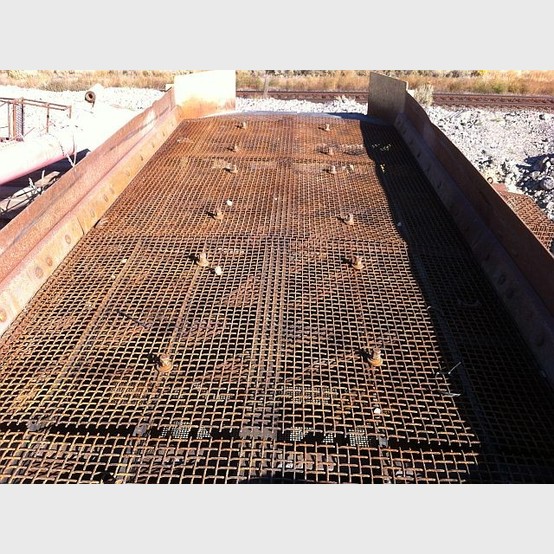

• 7/8 inch Top Screen
• 3/8 inch Bottom Screen
• Wash Bars

• 40in. Wide x 14.5ft. Long Discharge Conveyor
• Driven by 15HP Electric Motor
• Browning 25:1 Ratio Shaft Mount Reducer
• Motor Equipped with a Stearns Auto-Brake
• 12in. Dia. Lagged Head Pulley
• 12in. Plain Steel Tail Pulley
• All Mounted to 8in. Pipe Steel Skid & Wide Flange Support Frame

• Overall Dimensions:
  • Length: 33ft
  • Width: 11ft
  • Height: 13.5ft


• Location: Savona, British Columbia, Canada
