Eimco 4ft Dia. x 4ft Long Disc Filter

• Make: Eimco
• Condition: Used Condition
• Size: 4ft Dia. x 4ft Long
• Discs: (4) Disc Sections
• Drive: General Electric Electric Motor
  • Power Output: 0.75HP
  • Rotation Speed: 1725RPM
  • Voltage: 440 Volts
  • Frequency: 60Hz
  • Phase: 3-Phase
• Reducer: Pacific Motorized Speed Reducer
  • Power Output: 0.75HP
  • Rotation Speed: 45RPM
• Overall Filter Dimensions:
  • Length: 73in
  • Width: 64in
  • Height: 67in


• Filtrate Pump and Tank


• Blower: Sutorbilt 6M-B Rotary Lobe Blower

  • Make: Sutorbilt
  • Model: 6M-S
  • Inlet: 4in Dia. Steel Pipe - Connected to 4in PVC
  • Outlet: 4in Dia. Steel Pipe - Connected to Victaulic Fittings, 2in Dia. Reducer, Pressure Valve

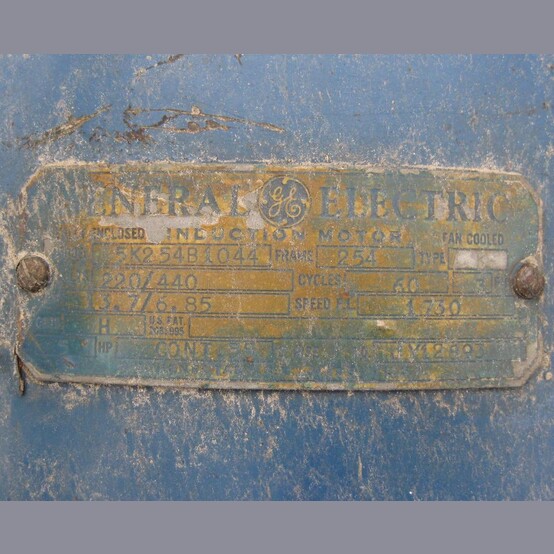

  • Drive: General Electric Motor
    • Power Output: 5HP
    • Rotation Speed: 1730RPM
    • Voltage: 220/440 Volts
    • Frequency: 60Hz
    • Phase: 3-Phase
  • Mounted to a Skid

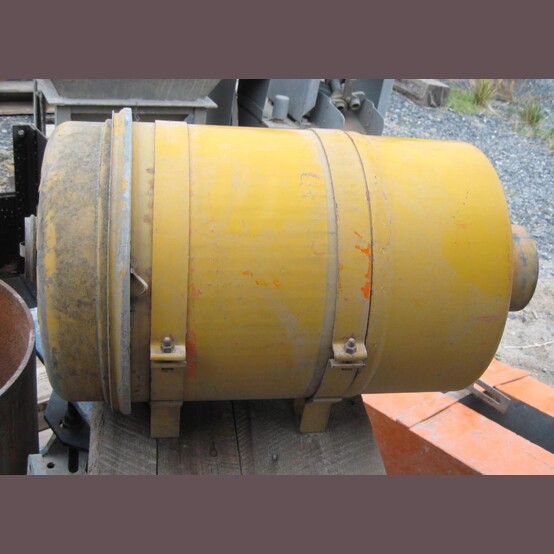

  • Intake Filter:
    • Housing Size: 13in Dia. x 21in Long
    • Top Inlet: 5in Dia.
    • Bottom Inlet: 3in Dia.
    • Side Outlet: 4in Dia.


• Location: Savona, British Columbia, Canada
