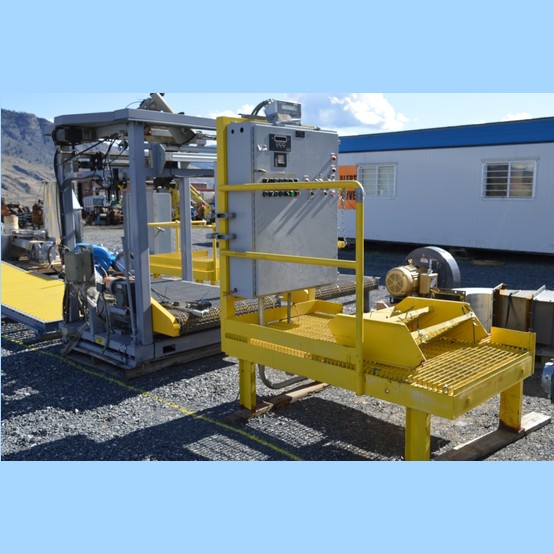

Custom Equip. Design (CED) Bulk Bag Weigh Filling System ID: 506187
Need this? Click here Have one? Click here
- 4 Point (Post) System

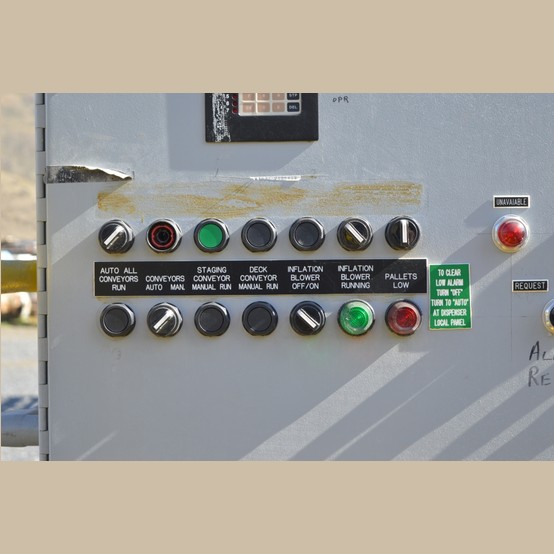

- All Manual Pneumatic Controls
- 12 in. Dia. Bag Feed Spout with
- Dust Control Connection
- Bag Handle Holder (Upper Frame)
- 2 Holders Fixed 2 Holders Movable (20 in. Travel)
- Upper Bag Holding Frame Adjustable for Various Bag Sizes from Approx. 3 ft. - 6 ft. Bags
- Height Adjust Chain Driven Through Right Angle Reducer with
- Gast Air Vane Motor
- Chain Link Conveyor
- Main Bag Support Deck 48 in. Wide x 7 ft. Long Falkgear Head Motor Drive

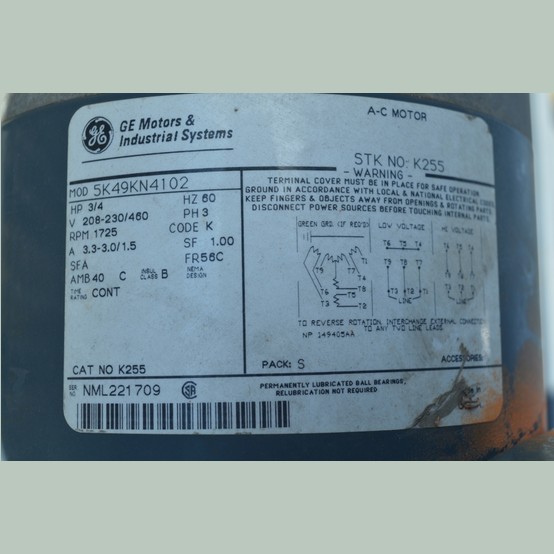

- GE 3/4 HP Motor
- Conveyor Mounted on 4 Air Bags
- Whole Unit C/W Sub Frame with 4 Load Cells
- Various Eye Sensor Detect Bag Presence
- Location: British Columbia, Canada
