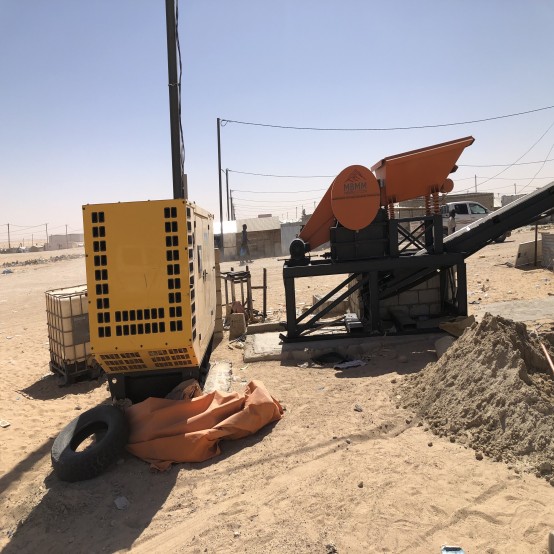

4-5 TPH Gold Plant Description.

Turn Key system utilizes Jaw Crusher Module, Fine Ore Hopper Feeder Module,
2- Hammer Mills, and 2 Shaker Tables. Components built into structural framework
on skids for ease of setup and portability.

• Model: 4-5 TPH Turn-Key Ore Processor
• Year: 2018
• Hours: 116

Plant Component Details:

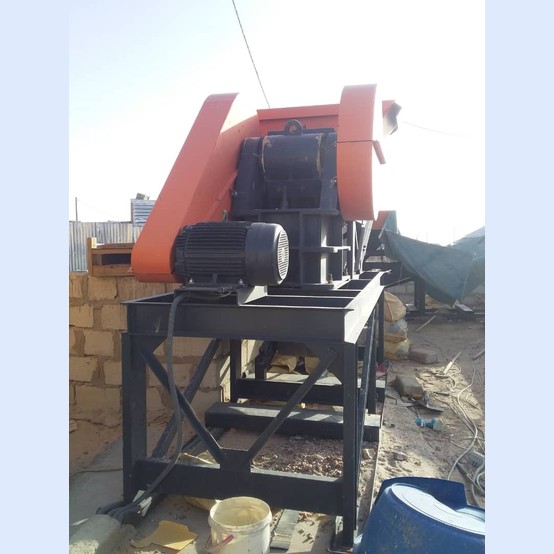

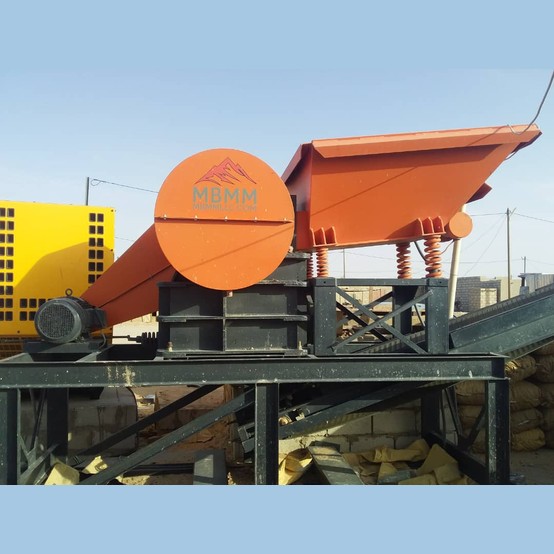

10 in. x 16 in. Module Jaw Crusher:

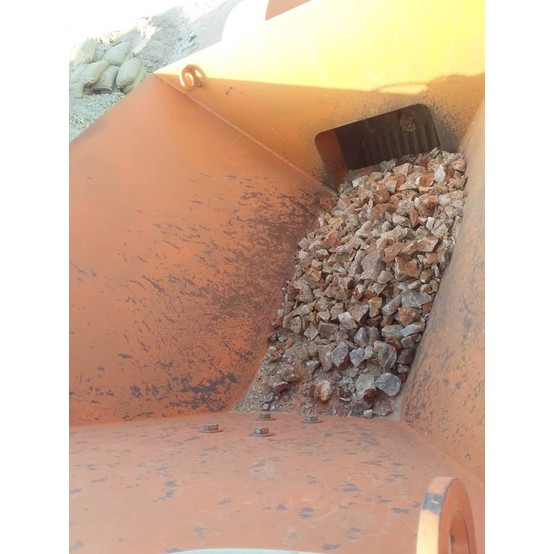

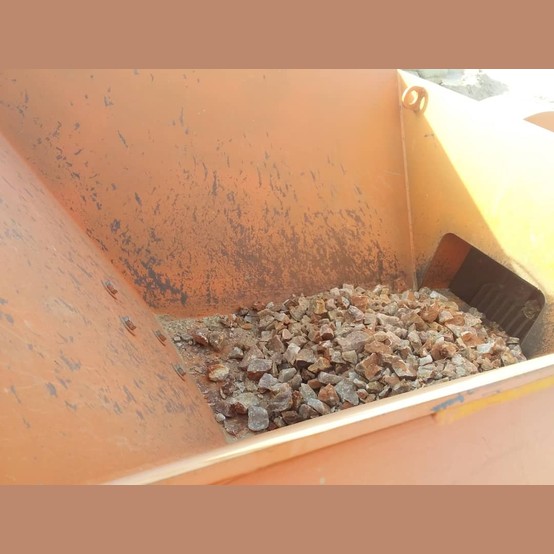

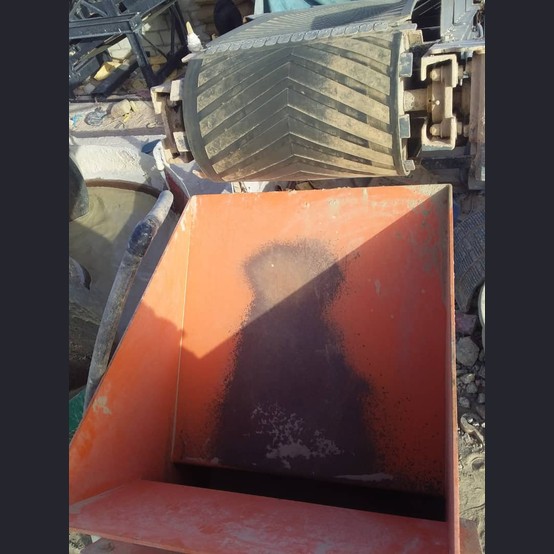

• 1 Yard Vibrating Ore Hopper
  • VOH-1Y-001
  • Electric Motor
    • 1/3 HP
    • 3 Phase
• 10 in. x 16 in. Jaw Crusher
  • JC1016-002
  • Electric Motor
    • 20 HP
    • 3 Phase

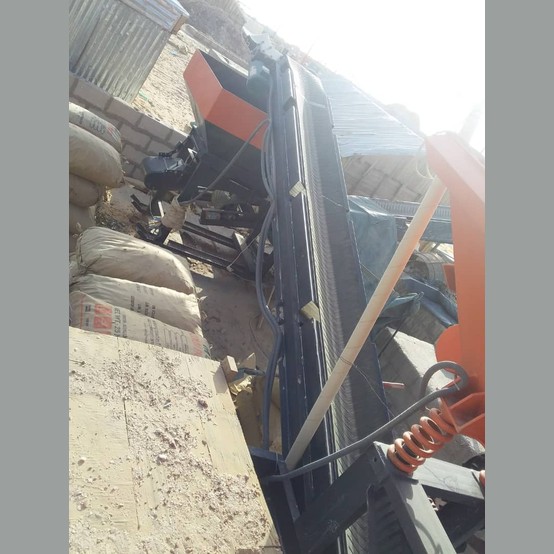

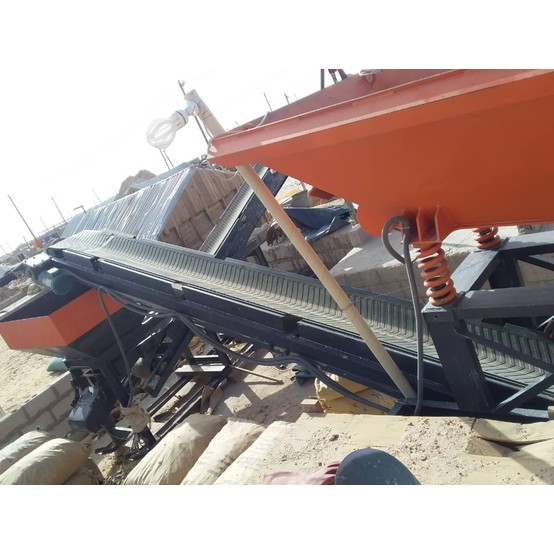

• 18.5 ft. Long x 16 in. Wide Flat Belt Conveyor
  • Electric Motor
    • 2 HP
    • 3 Phase
• Structural Steel Framework

5 TPH Hopper Feeder Module:

• Electromagnetic Feeder
  • Electric Motor
    • Single Phase
• Conveyor Motor
  • 2 HP
  • 3 Phase

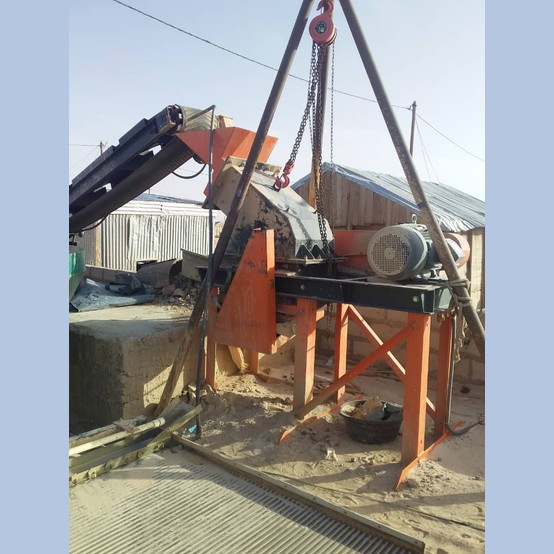

2 x 24 in. x 16 in. Hammer Mills:

• 30 HP Electric Motor
  • 3 Phase
• Ore Inlet Chute
• Wet Discharge Chute
• 1.2 mm Slotted Screen
  • 3/8 in. Thick
• Set of Chrome Hammers
• 1 Hammer Mill in Used Condition
• 1 Hammer Mill in Unused Condition

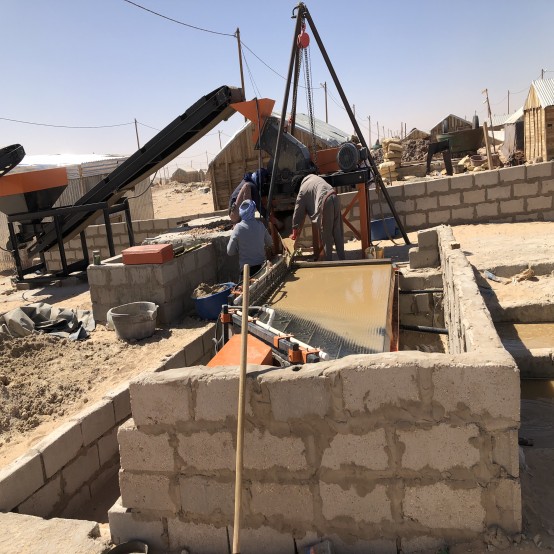

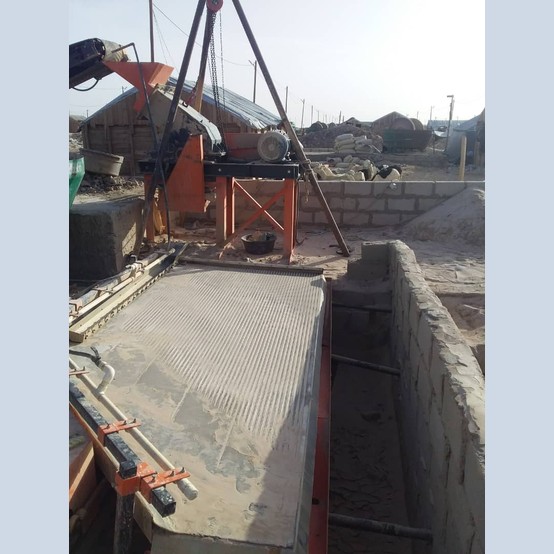

2 x 5 ft. x 12 ft. Shaker Table

• 1/2 HP Electric Motor
  • 3 Phase
• 1 Shaker Table in Used Condition
• 1 Shaker Table in Unused Condition
• Location: Western Africa
