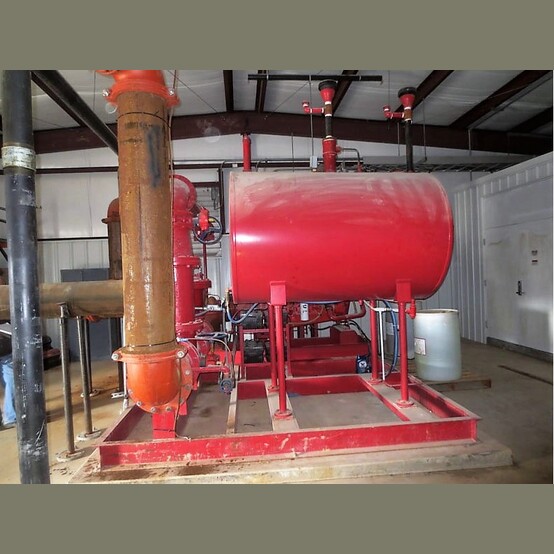

- Cummins-Aurora Diesel Fire Pump.
- Consisting of:
- Cummins diesel engine Model OSM11, engine # 35243793.
- 400HP at 2100 rpm.
- Aurora split case pump Type 10-492-18,
- Discharge piping 10 inch, Impeller dia 17.125".
- designed for 3500 gpm at 125 psig.
- One stage, 1750 rpm.
- detection sensors.
- Includes electric jockey pump & controller, Pentair model PVM4-130, 5HP.
- Self contained with all instrumentation.
- All skid mounted with interconnecting 12" piping and controls.
- Includes diesel tank on skid as well.
- Diesel tank is horizontal 4 ft dia. x 6 ft long for approx.
- 500 gallon capacity.
- Skid size is 121" w x 171" L x 103" high.
- Weight of entire system approx. 16,500 pounds.
- Location: Eastern USA
