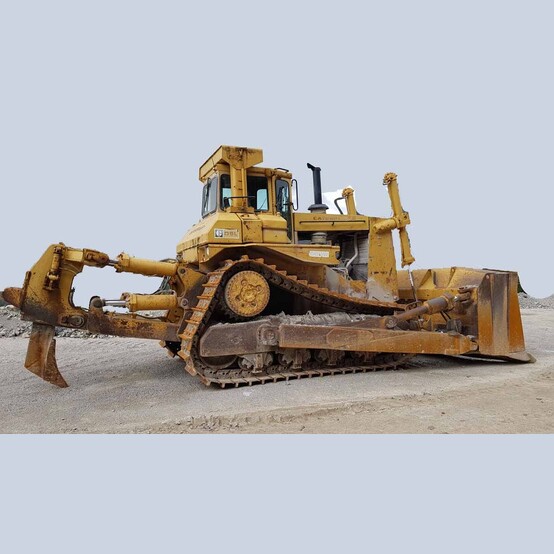

CAT D9L Dozer

  • Make: Caterpillar
  • Model: D9L
  • Year: 1983
  • Condition: Operative
  • Hours: 13,000 Hours
  • ROPS Cabin
  • S/S Ripper
  • Blade U/Tilt
  • Undercarriage with 70% Life

  • General Features
    • Raised Undercarriage: Lessens the Strain and Shock Loads to the Drive Sprocket
      • 2 Foot Ground Clearance
    • Oil-Cooled Disc Brakes and Clutches.
    • Enclosed Cab
    • Fuel Capacity: 255gal (965 liters)

  • Engine
    • Cat 3412
    • Cylinders: V-12
    • Displacement: 1,649 cu in (27 liters)
    • 460 Flywheel HP (343kW)
    • Turbo Diesel
    • Direct Injection Engine

  • Transmission
    • Transmission Type: Powershift
    • Number Of Forward Gears: 3
    • Number Of Reverse Gears: 3
    • Max Speed - Forward: 7.6 MPH
    • Max Speed - Reverse: 9.4 MPH

  • Undercarriage
    • Track Gauge: 8.21ft in
    • Standard Shoe Size: 24.02in
    • Ground Contact Area: 6696 in²
    • Number Of Track Rollers Per Side: 8
    • Ground Pressure: 17.12psi

  • Dimensions:
    • Length: 17.5'
    • Width: 10.5' (Without Blade)
    • Height: 14.5'
    • Weight: 114,656 Lbs

  • Location: Europe
