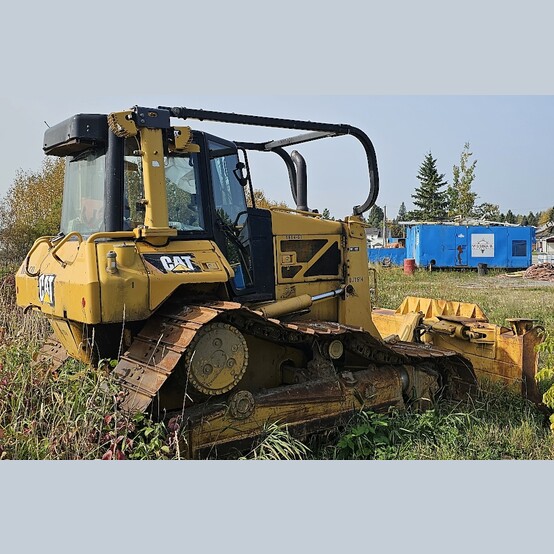

CAT D6N LGP Dozer

• Make: Caterpillar
• Model: D6N LGP
• Year: 2007
• Condition: Used, Fair

• View Spec Sheet Below

• General Model Specifications:
• Engine:
  • Make: CAT
  • Model: C6.6
  • Number of Cylinders: 6
  • Net Power: 150HP @2,200RPM
  • Displacement: 402.8in³
• Transmission:
  • Type: Hydrostatic
  • Number of Forward Gears: 5
  • Number of Reverse Gears: 5
  • Max Forward Speed: 6.21mph
  • Max Reverse Speed: 7.21mph
• Push Blade:
  • Width: 148in
  • Height: 46in
• Undercarriage:
  • Track Gauge: 85.03in
  • Shoe Width: 33.07in
  • Number of Track Rollers Per Side: 8
  • Number of Shoes Per Side: 46
  • Ground Contact Area: 8,107in²
  • Ground Pressure: 7.63psi
• Operational:
  • Operating Weight: 39,593lbs
  • Fuel Capacity: 79gal
  • Cooling System Fluid Capacity: 12.68gal
  • Hydraulic Fluid Capacity: 7.79gal
  • Final Drives (each): 2.25gal
  • Operating Voltage: 24 Volts
  • Alternator Supplied Amperage: 95 Amps
• Overall Dimensions:
  • Length: 211.4in
  • Width: 118in
  • Height: 126in

• Location: Eastern Canada
