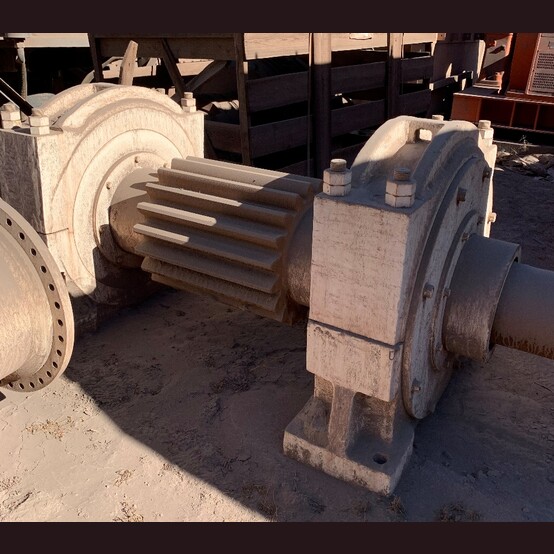

BML Minerals 15ft Dia. x 20ft Long Ball Mill

• Make: BML Minerals
• Type: Ball Mill
• Condition: Brand New, Unused Surplus
• Diameter: 15ft Diameter (4,572mm)
• Length: 20ft Long (6,100mm)
• Effective Volume: 93.3m³ (122yd³)
• Liner: Rubber-Lined
• Feed: Spout Feed
• Discharge: Overflow Type
• Rotating Speed: 15.1 RPM
• Drive: CYND Electric Motor

  • Type: TDMK2200-32TH Synchronous Motor
  • Power Output: 2200kW (2,950HP)
  • Rotating Speed: 187.5 RPM
  • Voltage: 3000 Volt
  • Current: 467 Amps
  • Frequency: 50Hz
  • Phase: 3-Phase


• Dimensions:
  • Length: 39.3ft (11,967mm)
  • Width: 18.6ft (5,666mm)
  • Height: 14.7ft (4,496mm)


• Location: South America
