Atlas Copco CS14 Diamond Core Drill ID: 1355401

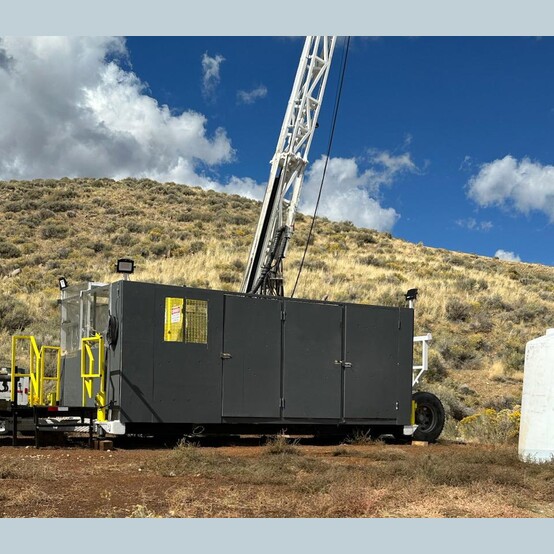

Atlas Copco CS14 Diamond Core Drill

  • Make: Atlas Copco
  • Model: Christensen CS14
  • Type: Diamond Core Drill
  • Condition: Used, Reported in Good Condition

  • General Model Specifications:

    • Depth Capacity Coring: (Wireline or Conventional)
      • B Wireline: 1,540m (5,052ft)
      • N Wireline: 1,200m (4,042ft)
      • H Wireline: 800m (2,695ft)
      • P Wireline: 475m (1,558ft)

    • Main Hoist:
      • Single Line Capacity: Bare Drum 80kN (18,000 lbs.)
      • Line Speed: Bare Drum 44m/min (148ft/min)
      • Cable Size: 35m (118ft) x 16mm (10/16in)

    • Wireline:
      • Capacity:
        • 1,830m (6,000ft) of 4.76 mm (3/16in)
        • 975m (3,200ft) of 6.35 mm (1/4in)
      • Line Pull:
        • Bare Drum: 11.9kN (2665lbs.)
        • Full Drum: 3.0kN (668lbs.)
      • Line Speed:
        • Bare Drum: 114m/min (374ft/min)
        • Full Drum: 453m/min (1,486ft/min)

    • Mast and Feed System:
      • Feed Travel: 3.5m (11.5ft)
      • Feed Speeds: Fast and Slow with Variable Control
      • Thrust: 59.6kN (13,390lbs.)
      • Pull: 138kN (31,020lbs.)
      • Drilling Angle: 45° to 90° degrees
      • Rod Pull Length: 6.09m (20ft)

    • Power Unit:
      • Manufacture: Cummins
      • Model: QSB6.7
      • Volume: 6.7L 6-Cylinder
      • Power: 208HP (153kW)
      • RPM: 1800

    • Hydraulic System:
      • Primary Pump: 28MPa – 242 L/min (4,061 PSI – 63.9 Gal/min)
      • Secondary Pump: 20MPa – 122 L/min (2,901 PSI – 32.2 Gal/min)
      • Auxiliary Pump: 21.5MPa – 47 L/min (3,118 PSI – 12.4 Gal/min)
      • Hydraulic Oil Cooling: Air

    • Drillhead and Spindle Speeds:
      • Power: Hydraulic Motor – Variable Speed/Reversible
      • Final Drive: 4in Chain-Driven in Oil Bath – 2.5 Ratio
      • Spindle (Inner Diameter): 117mm (4.625in)
      • Spindle Speeds:
        • 1st: 6.63:1, 117-196 RPM, 5,113-3,051 Nm (3,771-2,250 ft-lbs.)
        • 2nd: 3.17:1, 245-410 RPM, 2,445-1,459 Nm (1,803-1,076 ft-lbs.)
        • 3rd: 1.72:1, 451-756 RPM, 1,326-792 Nm (978-584 ft-lbs.)
        • 4th: 1.00:1, 776-1,300 RPM, 771-460 Nm (569-340 ft-lbs.)
      • Range Selection: Manual Control from Operator’s Station
      • Hinged Head: Swing Away

    • Chuck Assembly:
      • Type: Hydraulic Open, Spring Closed
      • Maximum Inside Diameter: 117mm (4.625in)
      • Holding Capacity: 18,143 kg (40,000 lbs.)

    • Rod Holder:
      • Type: Hydraulic Open, Gas Spring Closed
      • Maximum Inside Diameter: 210mm (8.3in)
      • Holding Capacity: 13,000 kg (28,660 lbs.)

    • Drill Base Supports:
      • Trailer Mounted Rig, Wheels
      • Support: 4 Hydraulic Jacks

    • Standard Equipment:
      • Hydraulic P-Size Rod Holder
      • 4 Hydraulic Leveling Jacks
      • Towing Package
      • Fuel Tank: 200 Liters (53 Gal)
      • Fuel Filter & Water Separator
      • Hydraulic Mast Dump
      • Mast in Two Sections
      • Large Crown Sheave Wheel
      • Wear Lines on Lower Mast
      • Safety Guards
      • Hydraulic Oil Reservoir Fill Pump & Filtration
      • Hydraulic Mast Raise

    • Overall Dimensions:
      • Length: 27.65ft (8,382mm)
      • Width: 10.5ft (3,200mm)
      • Height: 10.5ft (3,200mm)
      • Weight: 7,000 kg

  • Location: Western USA
