Sold

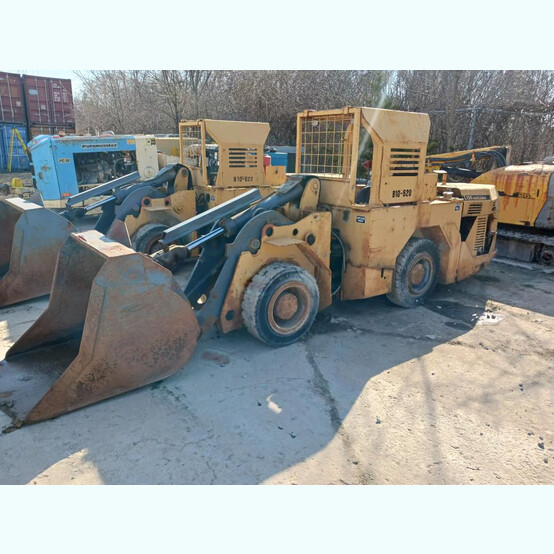

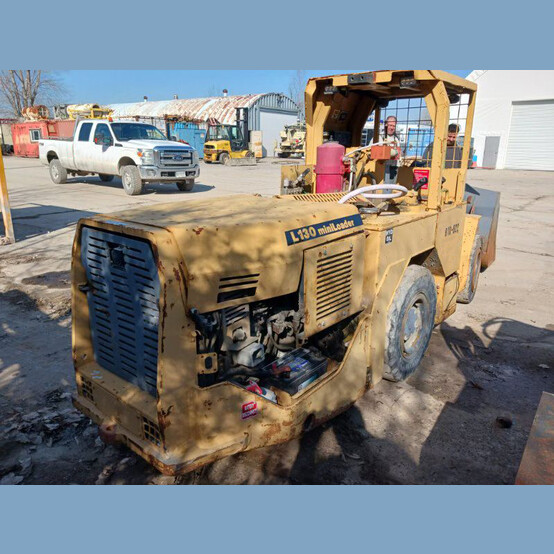

Aramine L130D and L130 1-Yard Scooptrams

Quantity: 2 Units Available

Description: We are offering sale these (2) Aramine L130 Underground Loaders with approx. 1-Yard capacity. Both are in operating condition. These can be purchased as a package or as single units. Both scoops are located in Canada and we can offer shipping on request.

• Make: Aramine
• Model:
  • Unit 1: L130D
  • Unit 2: L130
• Year: 2010
• Type: Microscoop
• Condition: Used, Operating Condition
• Hours:
  • Unit 1: 1,150 Hours
  • Unit 2: 1,110 Hours
• Bucket Capacity: Approx. 1yd³
• Engine: Perkins Model 804C Engines
• Axles: Aramine Axles
• Transmission: Hydrostatic Transmissions
• Dry-Type Air Cleaners
• Exhaust: Catalytic Purifier c/w Silencers
• Controls: Pilot Controls on the Steering and Buckets
• Brakes: Hydrostatic Service
• Parking Brake: Multi-Disc Brake - Spring Applied, Hydraulically Released. Manual and/or Automatic Actuation. Immediate Auto-Braking in Case of Energy Loss
• Electronics 12-Volt Electrics
• Tires: 7.5R X 15 XZM Michelin Tires
• ROPS Canopy


• Optional (Included):
  • Deutz Electrical Plug, Soldered & Heat Shrink Electrical Connector
  • All Labeling and Stickers in English
  • Bolts and Nuts with Anti-Seize
  • Heel-Blocks for Footrest at Pedals
  • Lifting & Tow Points Painted in Green
  • Access Handles into Cab Painted in Red
  • Rear Bumper - Wing Protection
  • Emergency Engine Stops
  • Relocate Main Electrical Fuse/Holder
  • Fitted Flashing Light
  • Reverse Lights Operational
  • Reverse Alarm “Duck” Type
  • Australian Wiring Diagram
  • Caterpillar Jump-Start Receptacle
  • Auto Lube (Lincoln)
  • Safety Operator Gate
  • Pilot Check Valves on Dump and Hoist Cylinders
  • ROPS Canopies


• General Model Specifications:
  • Capacity: 1,200kg (1.2 Tonnes)
  • Engine Type: Diesel
  • Breakout Force:
    • Tilt: 4000 daN
    • Lift: 3400 daN
  • Boom Raised Speed: 8.5 Seconds
  • Width: 1.04m - Ideal for Narrow Vein Mining


  • Overall Dimensions:
    • Length: 5,345mm
    • Width: 1,040mm
    • Height: 1,990mm (With Canopy)
    • Weight: 4,700kg

View Spec Sheet Below

• Location: Eastern Canada
