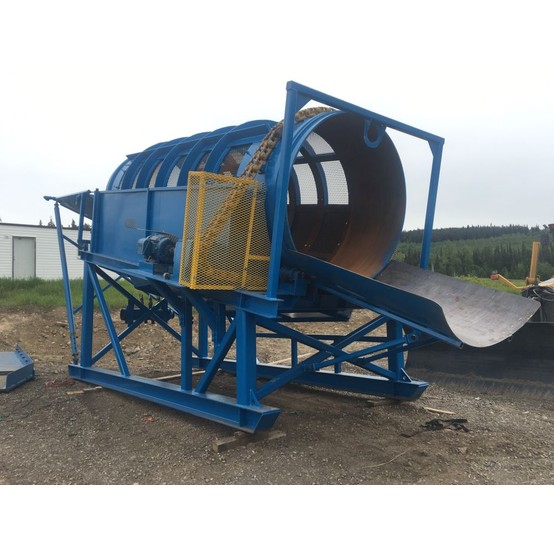

6ft Dia. x 20ft Long Trommel Wash Plant
- Capacity: 85-125 YPH
- Heavy Duty Design
- Skid Mounted
- Drum: 6ft x 14ft
- 1in Screen Spacing

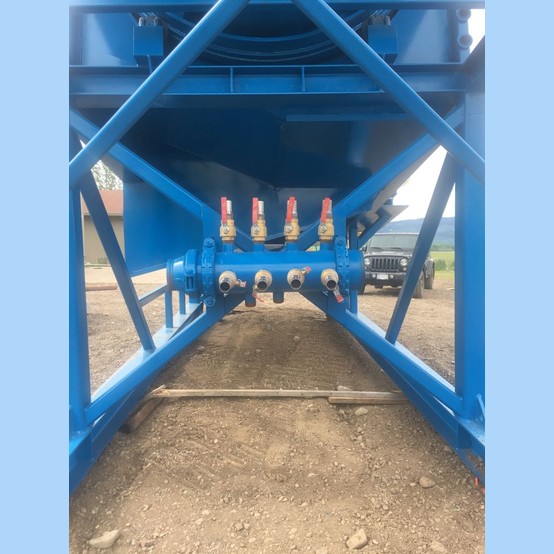

- Water Manifold
- Feed Chute
- HiPower 180kW Generator
- Model: HPW-180 T6 SA 277/480V 60Hz
- DOM: 10/14/2011
- Voltage: 277/480 Volt
- Current: 417/241 Amps
- Frequency: 60Hz
- Drive: WEG 40HP Electric Motor with Variable Frequency Drive
- Cat Sprocket Drive:
- D8 Rollers
- D3 Chain
- Sluice:
- 10in Wide x 12ft Long Boiler Box
- (4) 3ft Wide x 16ft Long Sluice Runs With Expanded Metal
- 2 Nugget Traps
- (2) 6in Water Intakes
- Approximately 800 GPM Water Consumption

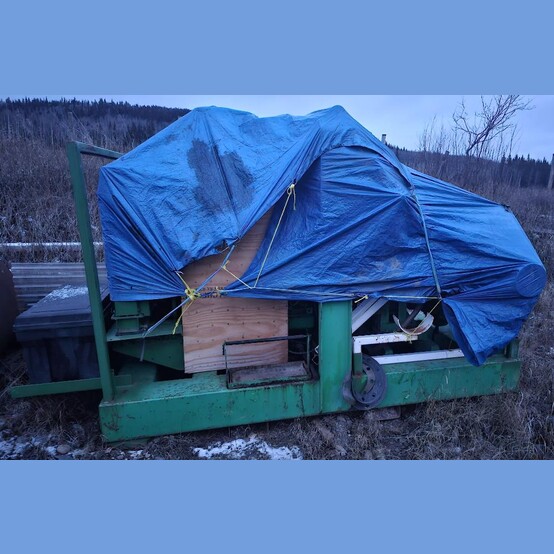

- Diesel Driven Pump
- Intake Strainer
- Intake Pump Tower
- Overall Dimensions:
- Length: 15ft
- Width: 8ft
- Height: 14ft
- Location: Western Canada
