54in Dia. x 52in Long Ball Mill

• Type: Ball Mill
• Condition: Used Condition
• Size: 54in Dia. x 52in Long
• Feed Type: Scoop
• Discharge Type: Overflow
  • With Trommel Screen Discharge
• Opening Hatch: 22in x 18.5in
• Pulley: 15.5in Dia., 5-Groove
  • Shaft: 3-3/8in
• Mounted on Frame:
  • Beams: 6.5in Wide x 20in High x 0.5in Thick
• Overall Ball Mill Dimensions:

  • Length: 12ft
  • Width: 128.5in
  • Height: 96in

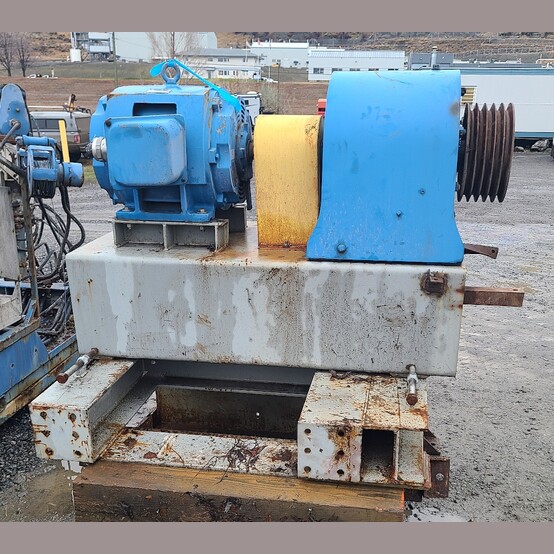

• Drive: Teco Induction Motor
  • Power Output: 60HP
  • Rotation Speed: 1760RPM
  • Voltage: 230/460 Volts
  • Current: 144/72 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase

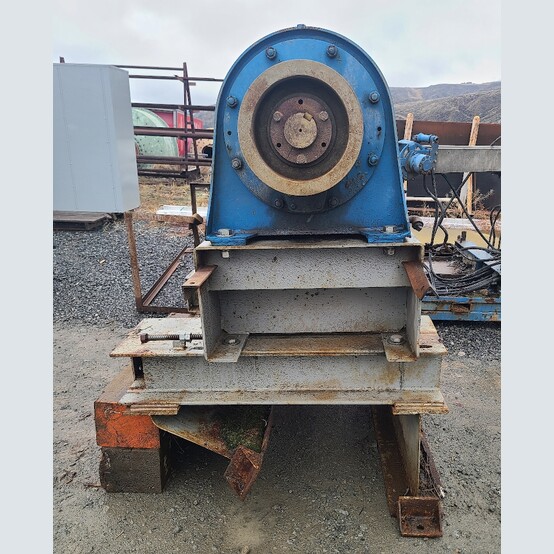

• Bolt-On Speed Reducer:
  • Model: Falk 65C2-06A4
  • Ratio: 9.513:1
• Mounted on Separate Frame
• Dimensions: 63in Long x 54in Wide x 68in High

• Location: Savona, British Columbia, Canada
