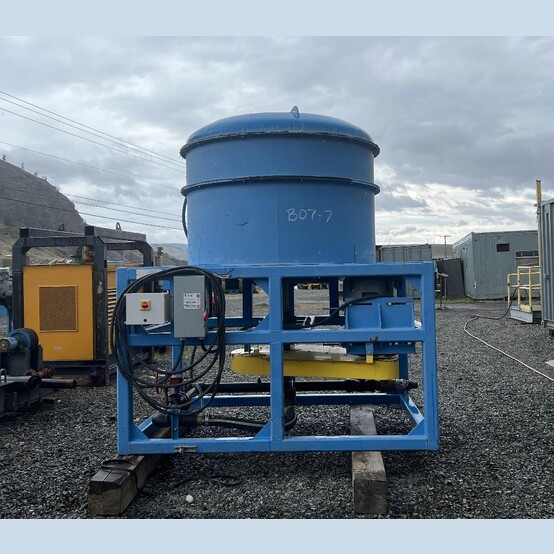

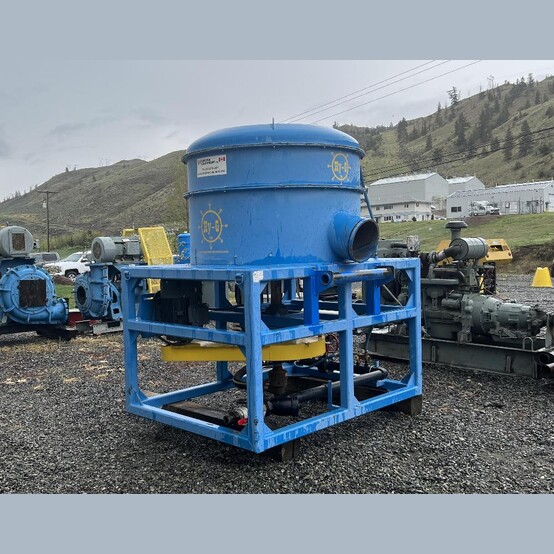

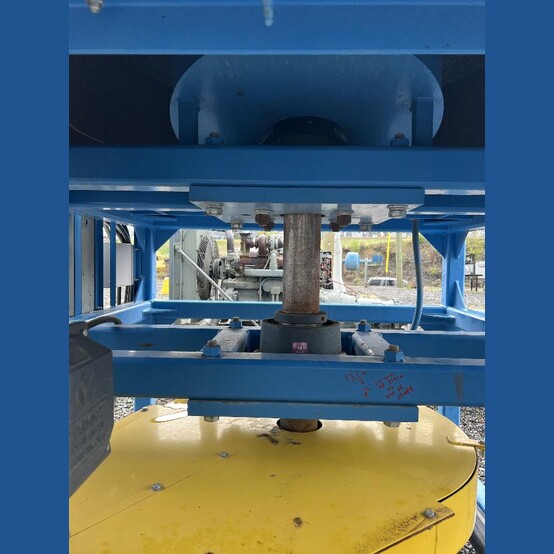

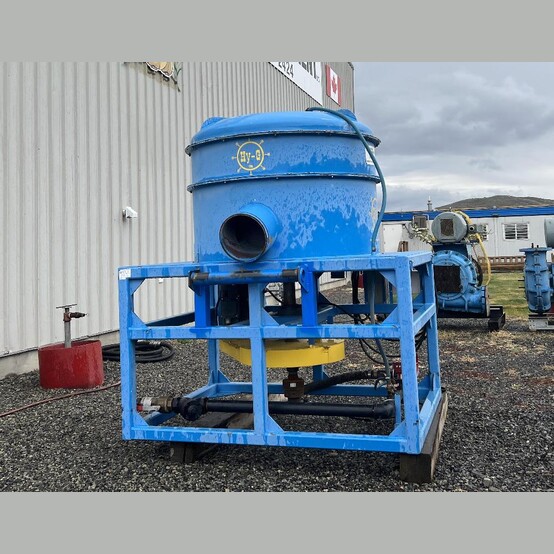

Hy-G P40 Gold Concentrator

  • Make: Hy-G
  • Model: P40
  • Condition: Used, Reported in Good Condition
  • Type: Gold Concentrator

Savona Equipment Ltd. is an Authorized Global Distributor for Hy-G Concentrators Inc. www.hygconcentrators.com and Provides the Same Great OEM Pricing and Service.

The Hy-G P40 Gold Concentrator Provides Exceptional Recovery of Extremely Fine Gold and Other Minerals and Metals.

Hy-G P40 is part of the Hy-G Placer Series Centrifugal Concentrators which are Engineered Specifically for Placer Mining Applications.

  • Some of the P40 Advantages are:
    • Engineered to Recover Over 95% of Gold as Fine as 44 Micron (325 Mesh) under Correct Operating Procedures
    • Recovers Fine Flat and Flake Gold
    • It is a Semi-Batch Concentrator and it can be Operated Up To 24 Hours Between Clean-Outs which Only Take Minutes

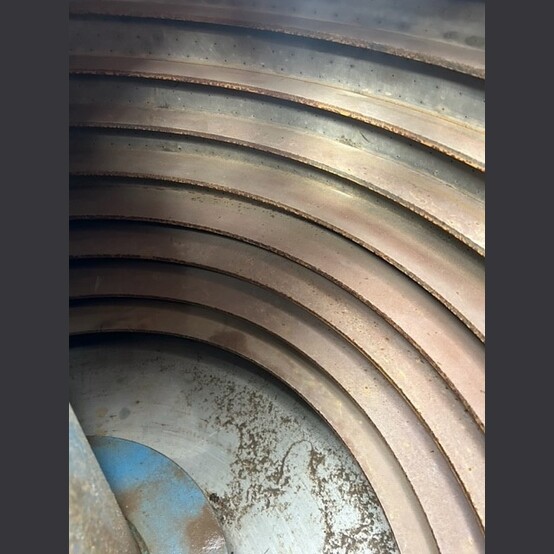

    • Engineered Placer Bowl Designed for Max Recovery even with Larger Feed Sizes, Fluctuations in Feed Rates, and Variations of Particle Sizes Common in Placer Mining Applications

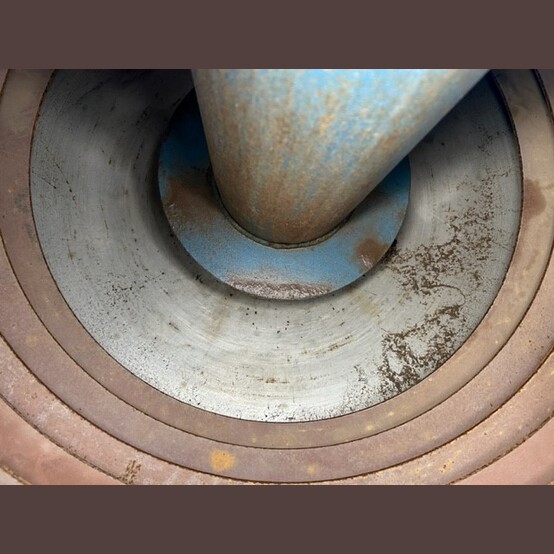

    • Stainless Steel Bowl Help Prevent Plugging and Provide Precise Control of Water Pressure and Flow to Ensure Efficient Recovery
    • Heavy Duty Design and Very Limited Wear Parts to Ensure Durability for Tough and Remote Mining Conditions around the World

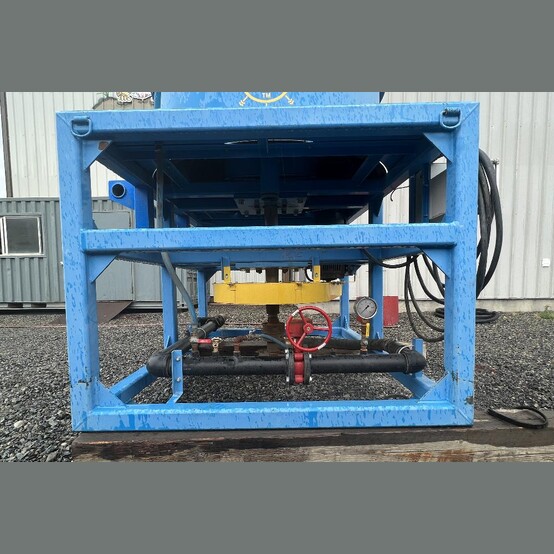

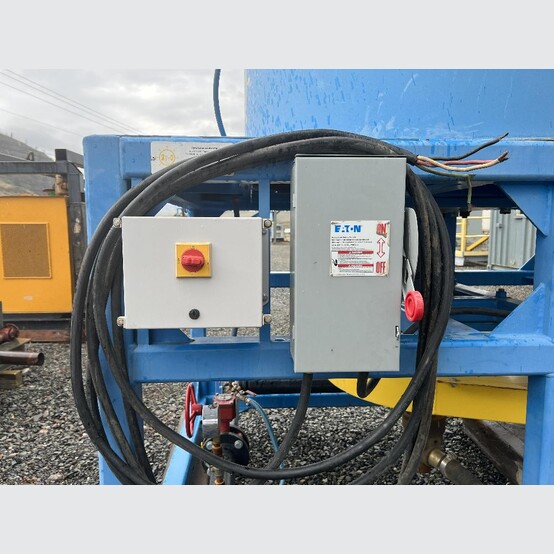

    • Supplied Standard with a Simple Electrical Start/Stop and Single Water Valve Control for Start-Up, Shut-Down, and Clean-Outs to Reduce Operational Complexity. Automated Controls are Optional
  • Specifications:
    • Max Capacity: 120 TPH
    • Max Capacity within Max Recovery Range: 60 TPH (Approximately)
    • Max Particle Feed Size: 6mm
    • Recommended Feed Particles Size: 5mm Minus
    • Motor: 25 HP
    • Hz: 50Hz or 60Hz
    • Voltage: Per Customer Request
    • Water Required: 310 GPM @ 35 PSI
    • G-Force: 70 G'S
    • Weight: 2,804 kg (6,182 lbs)
    • Dimensions:
      • Length: 2.21m (7ft 3in)
      • Width: 1.78m (5ft 10in)
      • Height: 2.50m  (8ft 2.25in)

Made in Canada

Worldwide Shipping Available
