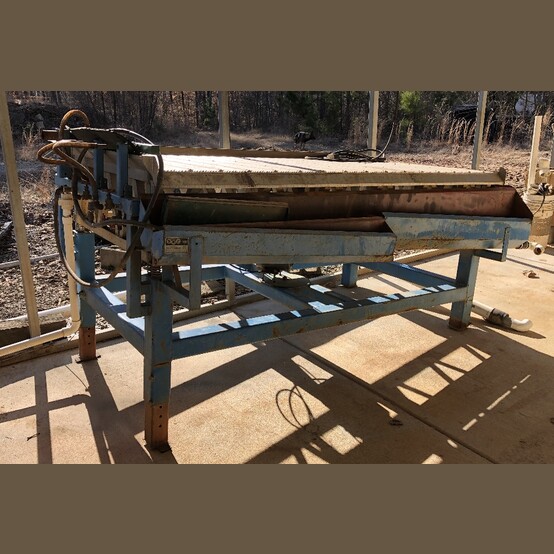

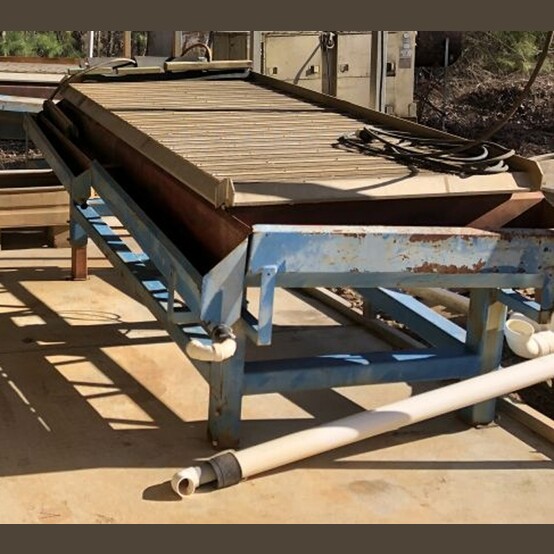

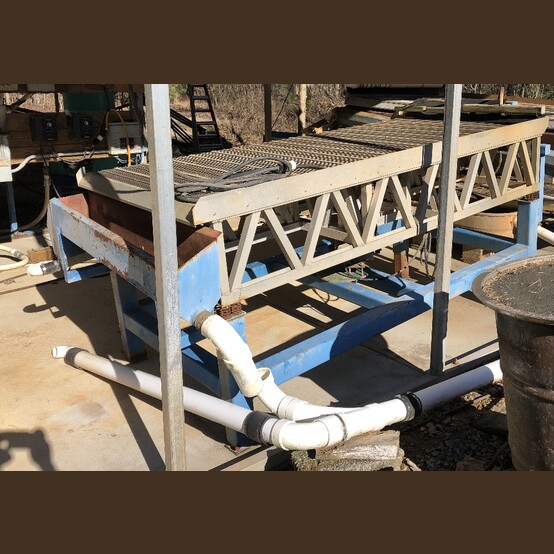

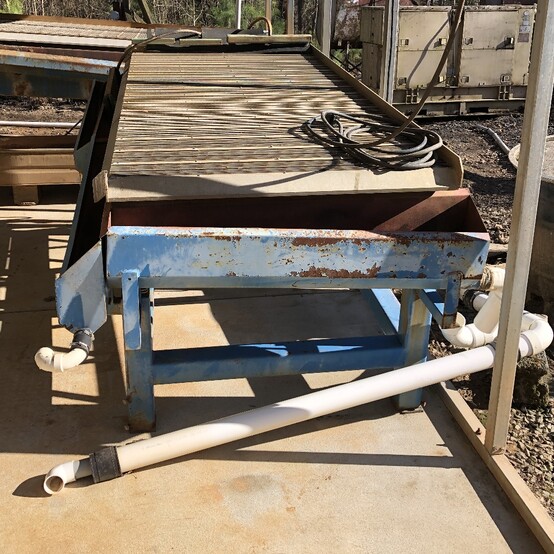

4ft. x 8ft. UHF Concentrating Table

  • Make: Graphic Engineering
  • Model: 4080
  • Style: UHF (Ultra High Frequency)
  • Size: 4Ft. x 8Ft.
  • Water Inlet Size: 1" (25.4mm)
  • GPM: 20
  • Capacity: 2 TPH
  • Riffles: Extruded Aluminum

  • Drive:

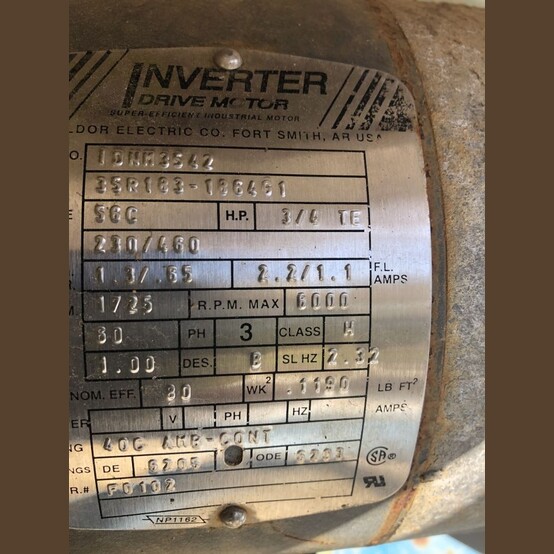

    • Baldor IDNM3542
      • HP: 0.75HP
      • RPM: 1725
      • Frequency: 60Hz
      • Voltage: 230/460V
      • Amperage: 1.3/0.65A
      • Phase: 3-Phase

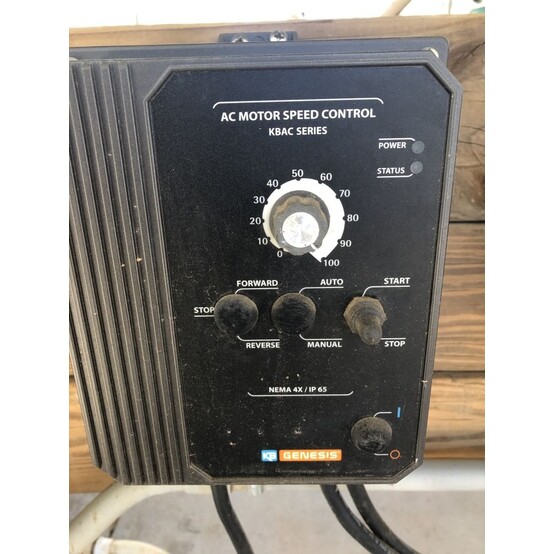

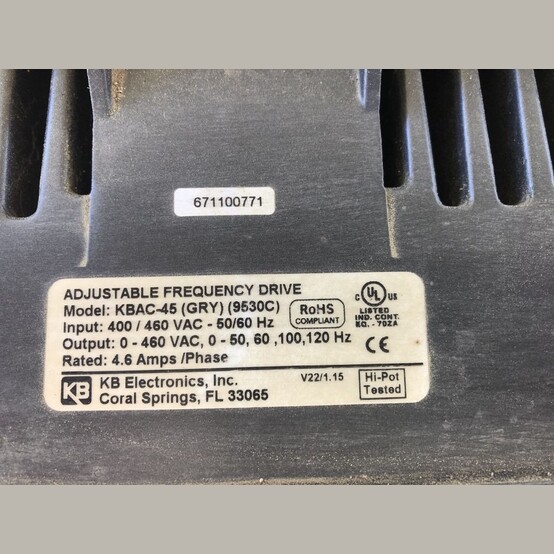

    • KB Electronics VFD
      • Model: KBAC-45
      • Input Voltage: 400/460 VAC, 50/60Hz
      • Output Voltage: 0-460VAC, 0-50,60,100,120Hz
      • Rated: 4.6A/Phase

  • Overall Dimensions:
    • Length: 120"
    • Width: 66"
    • Height: 60"
    • Weight: 600 Lbs. (Approx.)

  • Location: Southeastern USA
