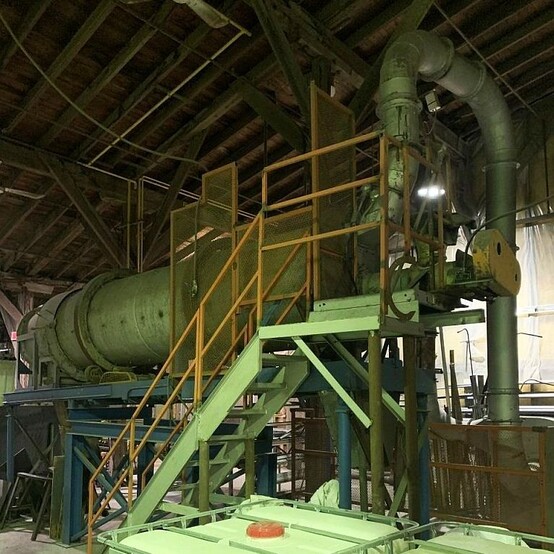

• Size: 42 in. Dia. x 13 ft. Long
• Complete with
  • Heating System
  • Electric System Stairs
  • Ventilation Fan
  • Air Conduits
  • New Electrics and Heaters

Additional Information:

• Drum is supported on 4 steel rollers.
  • 2 are chain driven through a Radicon reducer by a 5 hp electric motor.
  • 600 Volt, 3 phase, 60 Hz.
• 8" diameter material Infeed screw conveyor with a 3HP, 600 volt drive motor through a shaft mount reducer.
• Drum incline adjustable to required needs. (Hinged at one end).

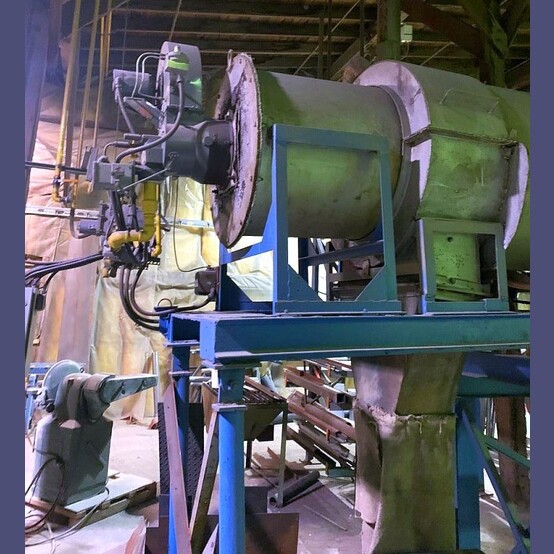

• Unit is propane fired.
  • Volcano burner
• Complete with gas train.

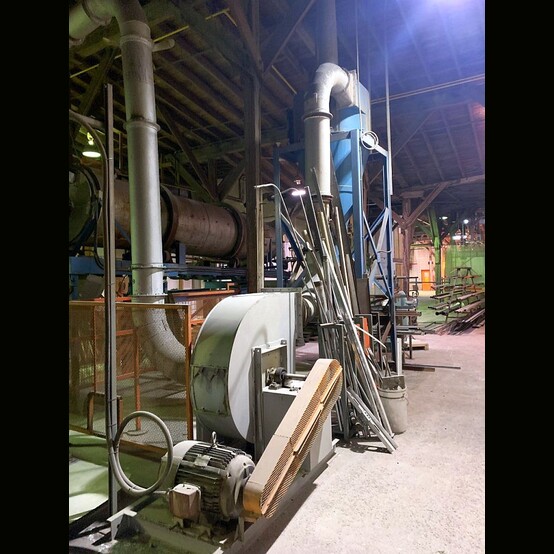

• Centrifugal blower belt driven by 30 hp motor.
  • 600 Volt, 3 phase, 60 Hz.
  • Capacity approx. 8000 cfm.

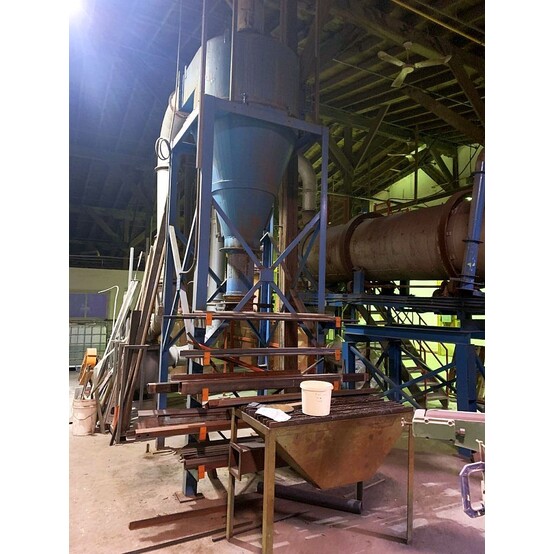

• Draws fines out of dryer and feeds approx. a 48” cyclone.
• (Cyclone has manual discharge gate on apex).

Transportation requirements :

• 1 - 48' flat deck trailer.
• Dryer will take 25'.
• Balance of trailer for fan, cyclone, vent tubing, stairs, frame, screw conveyor etc.
• Location: Eastern Canada
