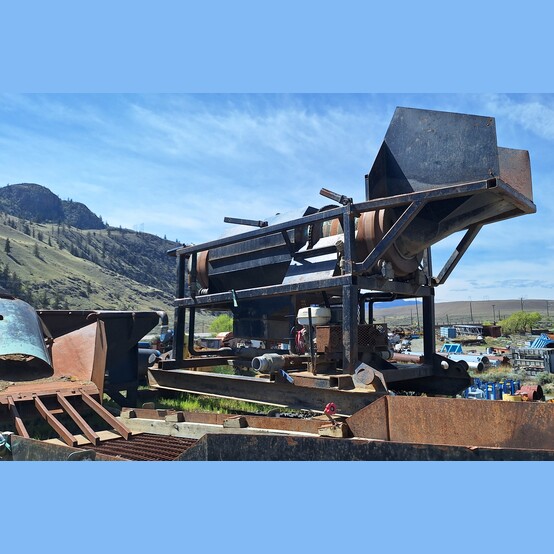

30in Dia. x 10ft Long Trommel

• Make: Custom Built
• Condition: Used Condition
• Type: Trommel
• Diameter: 30in Diameter
• Length: 10ft Long
• Capacity: 30-40 YPH
• Screening Section: (2) 24in Screening Sections - 1/2in Punch Plate Newly Installed

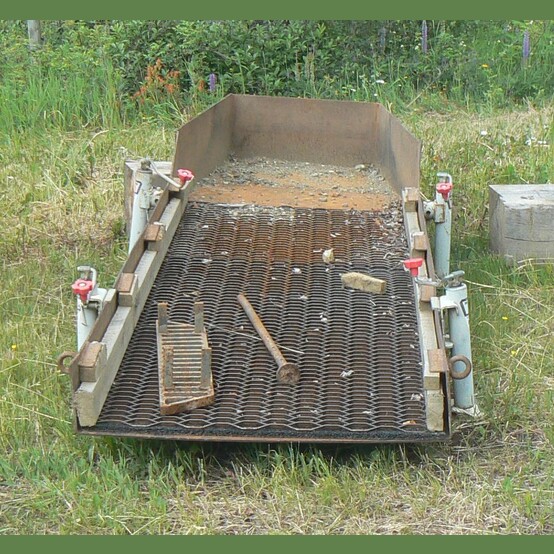

• Sluice: 30in Wide x 10ft Long
  • With Expanded Metal and Miner's Moss
• Feed Hopper: 74in Long x 71in Wide x 22in Tapering to 13in (Inner Dimensions)
  • Adjustable Mounting Positions (Bolt-On)
• Water Connection: 4in Dia.
• Water Pump: 4in Bearcat SP4422 Water Pump Complete with Suction and Discharge Hoses
  • Powered by Honda GX390 Gas-Powered Engine
  • Flow Rate: 422 GPM Max.
  • Lift: 26ft Suction Lift, 98ft Total Lift
• Trommel Drive: Chain-Driven by Honda GX390 Gas-Powered Engine Thru David-Brown Radicon Gear Reducer
• Skid Mounted


• Overall Dimensions: (Feed Hopper/Chute and Sluice Disconnected)
  • Length: 13ft 6in
  • Width: 7ft
  • Height: 8ft
  • Weight: 4500 Lbs. (Approx.)
  • Feeder Chute: 6ft Wide x 6ft 6in Long


• Location: Savona, British Columbia, Canada
