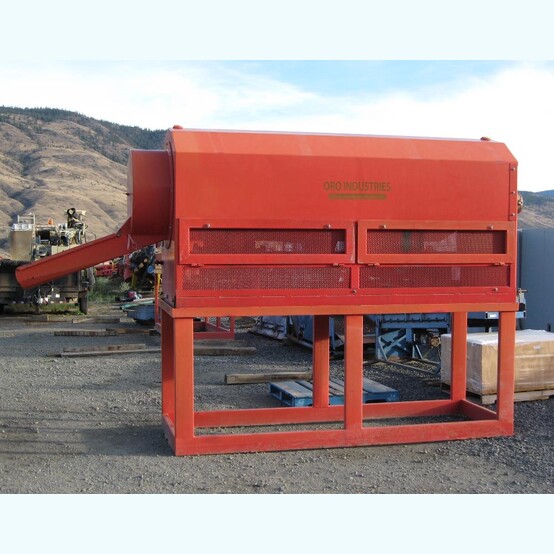

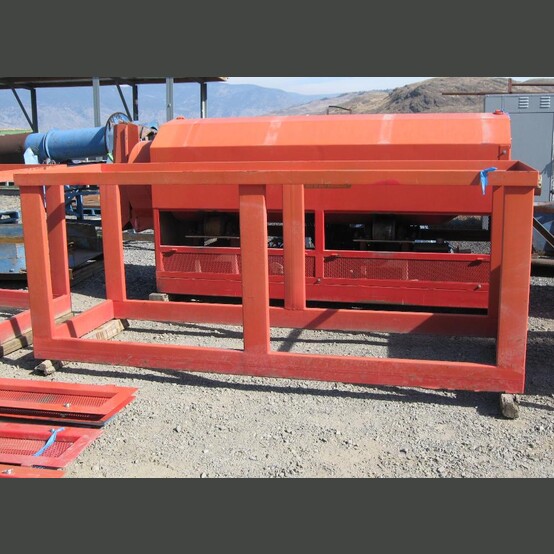

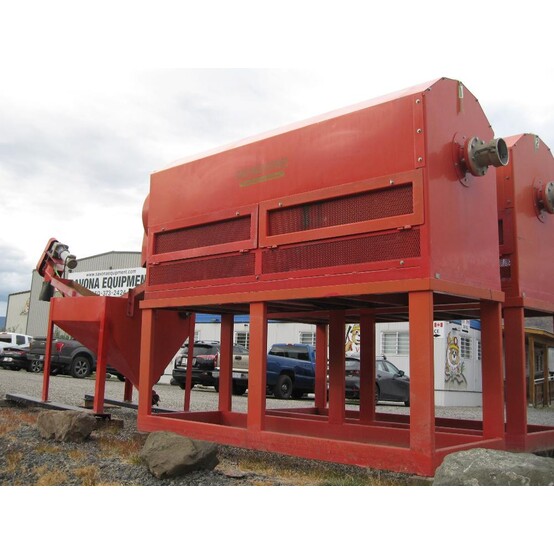

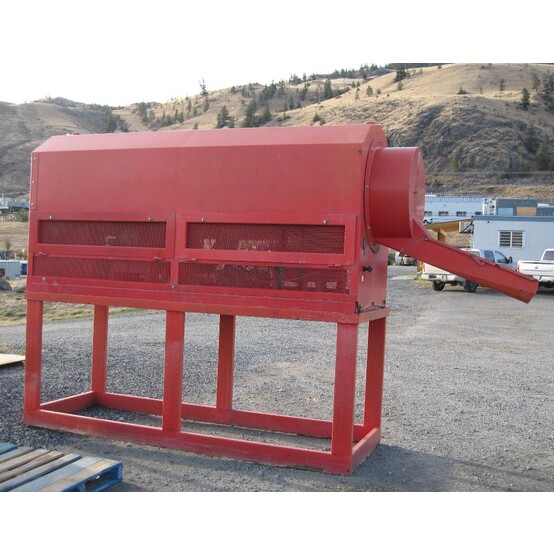

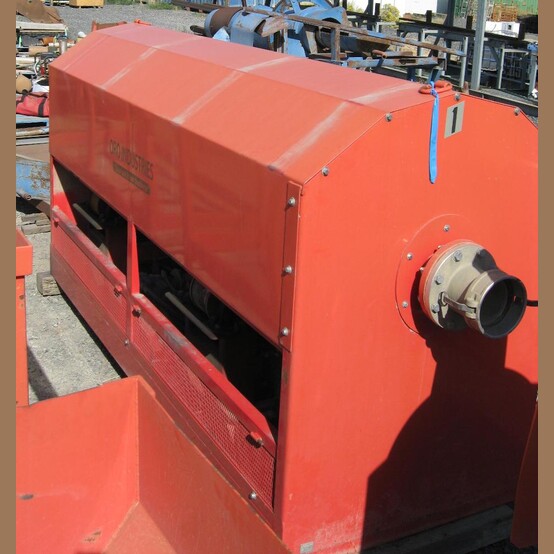

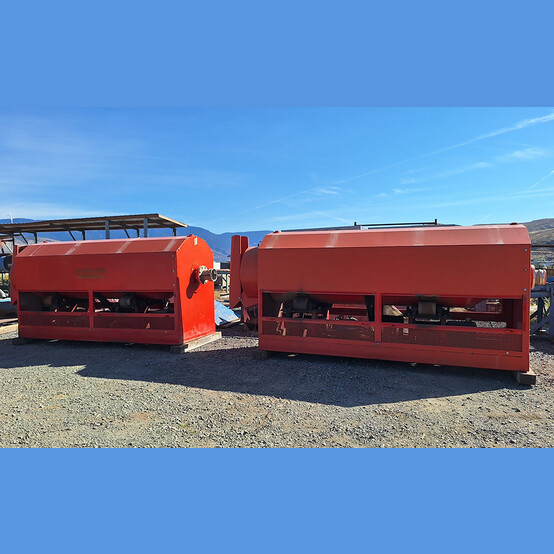

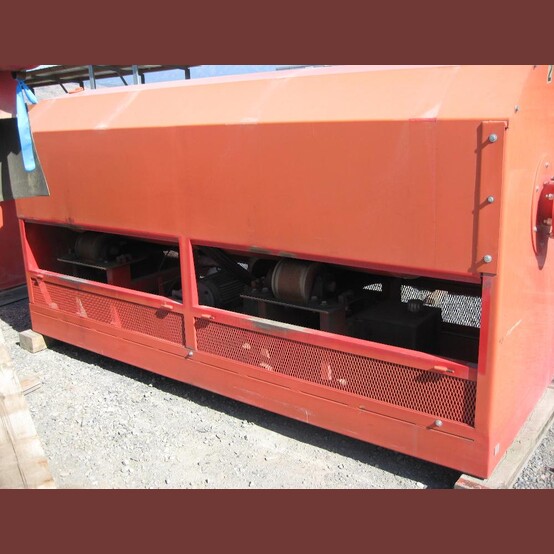

30in Dia. Oro Industries Low-G Horizontal Centrifuge

Quantity: (2) Units Available

• Make: Oro Industries
• Model: Low-G Horizontal Centrifuge
• Type: Gold Concentrator
• Style: Primary Batch-Type Concentrator for Both Alluvial and Milled Hard Rock Ores
• Condition: Used, Reported in Good Working Condition
• Size: 30in Diameter
• Recovery: 99% Recovery of Free Gold Down to 100 Mesh - 80% to 90% Recovery Down to 200 Mesh
• Classified Material Feed: 1/4” or 3/8”
• Production Capacity: 40 TPH  (25 Cubic Yards or 20 Cubic Meters)
• Water Consumption: 200-400 GPM (755-1500 Liters Per Hour)
• Concentrate Capacity: 50 Gallons (880 Lbs./200 Liters)
• Intake: 6in Dia.
• Discharge: 6in Dia.
• Drive: Electric Over Hydraulic

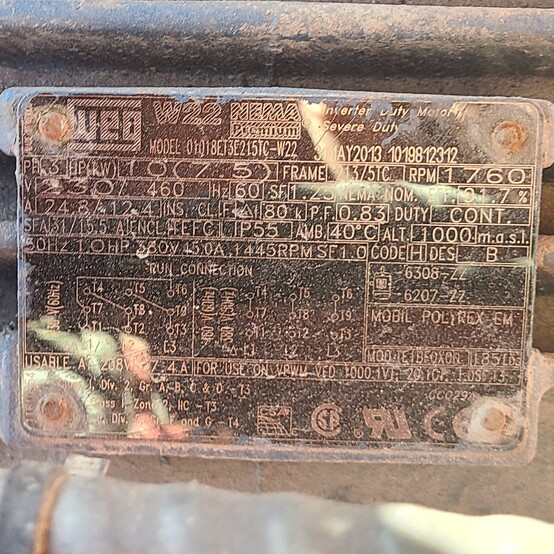

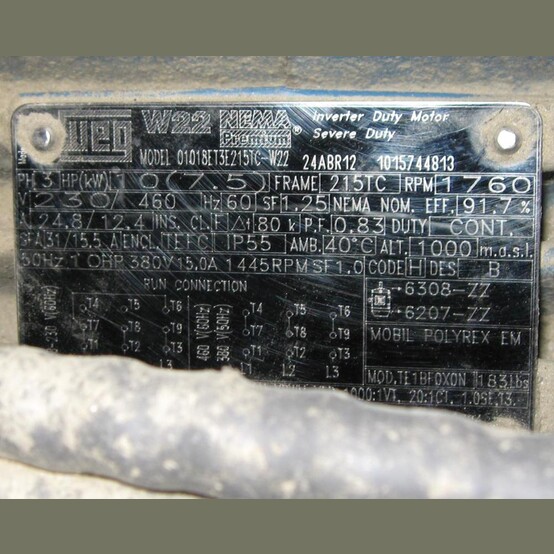

  • Power Output: 10HP
  • Voltage: 230/460 Volt
  • Frequency: 60Hz
  • Phase: 3-Phase

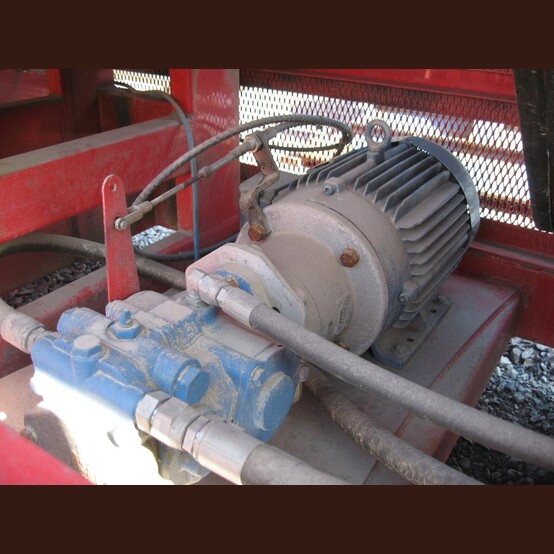

  • Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter

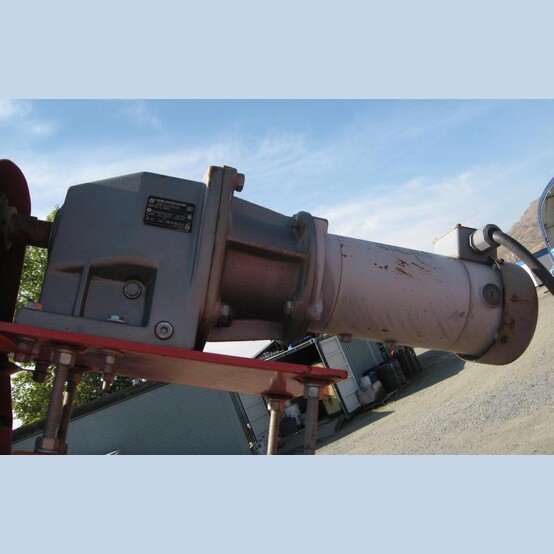

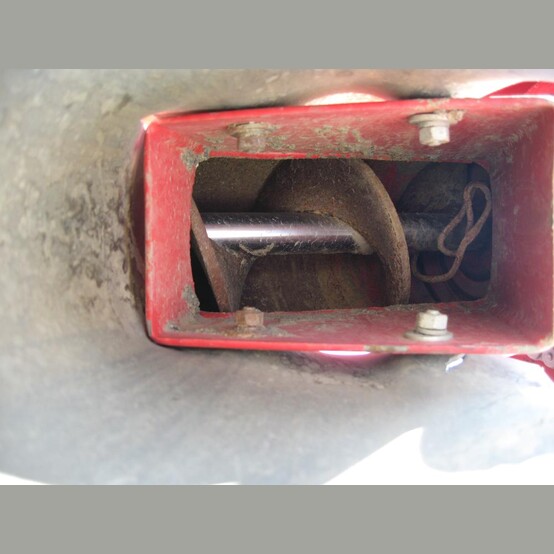

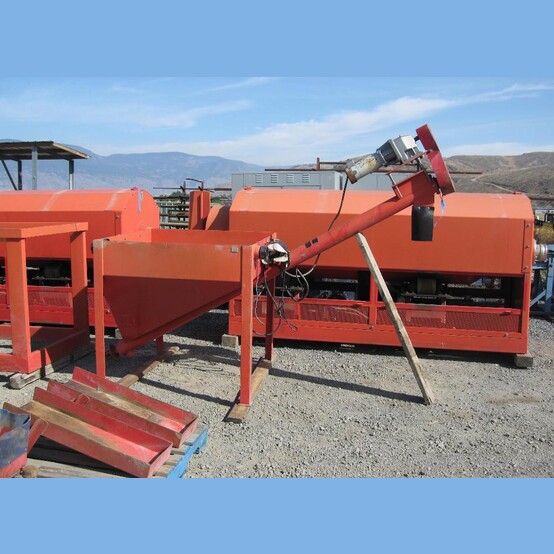

• Auger Feeder: Available for Additional Cost
  • Dimensions: 4ft Wide x 4ft Long x 37.5in Deep Tapered
  • 6in OD Auger Pipe
    • Discharge Height: 61in High
    • Discharge Chute: 6.25in x 3.625in

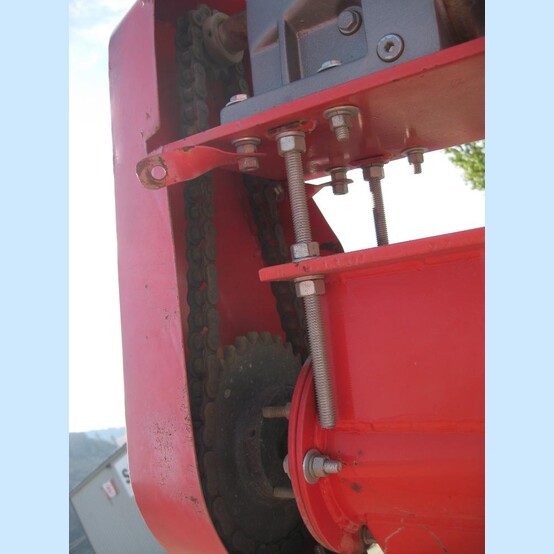

  • Chain Driven through Nord SK 22 VL N56C Reducer
  • VFD Controlled: KB Electronics Model KBPW240D Variable Frequency Drive


• Overall Dimensions:
  • Length: 158.5in
  • Width: 86.25in
  • Height: 68in
  • Shipping Weight: 4,200 lbs.


• Location: Savona, British Columbia, Canada
