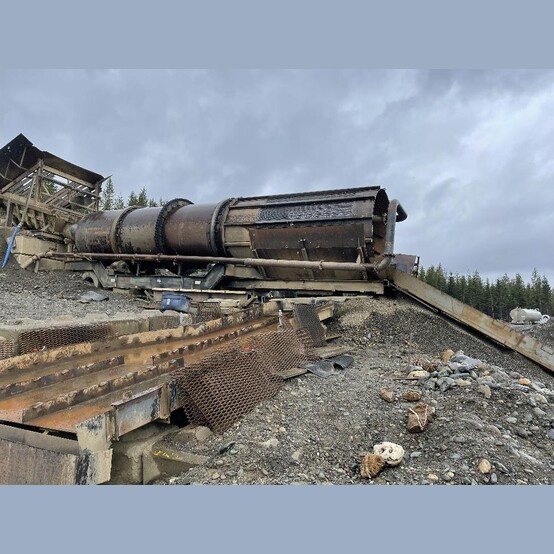

300 TPH 8ft Dia. x 42ft Long Scrubber Trommel Wash Plant

• Trommel Size: 8ft Dia. x 42ft Long
  • 0.5in Thick Drum
• Comes with Rock Box Feed Chute Under Grizzly with Removable Bars
• Grizzly Needs Work on Bars but Otherwise Solid Structure
• Chassis/Skid Mounted, Single Axle (Requires Truck and Trailer Loading to Transport)
• 16in x 9in Face Trunnion Rollers
• Heavy 8in Wide Trunnion Races on Drum
• 28ft Splined Scrubbing in Feed and in Drum
• 10ft of ½in Thick with ½in Punch Plate for Fines Discharge into Sluice Box
• 6 Cyl. Cummins Diesel Drive with Clutch Driving Falk Right Angle Reducer
  • Reducer has 20in Dia. 16 Tooth Sprocket with Heavy Chain Driving Matching Heavy Chain Sprocket Around Entire Drum
• Drive is a Bolted On Module that is Removable for Transport


• Sluice
  • Sluice is 26ft with 12ft of Carpet
  • Next 14 feet Widened to Slow Discharge Down Over Expanded Metal and Miner's Moss or Astroturf

• Capacity: Using 10in Spacing on Grizzly: 250/300 TPH
• Water Requirement: Requires 2500 to 2800 GPM of Water


• Location: Western Canada
