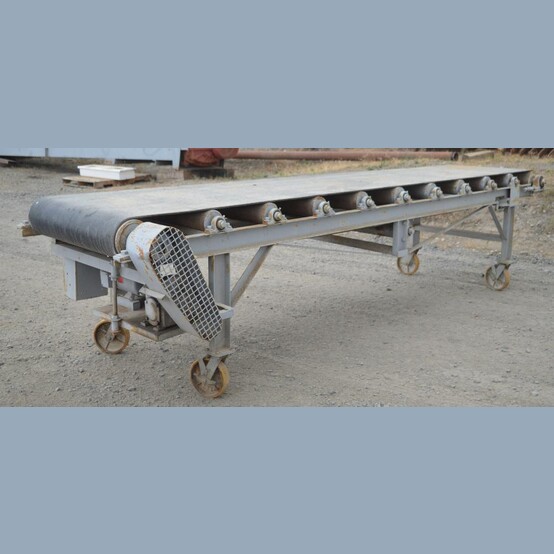

36in. x 13ft. Flat Channel Conveyors

Quantity= 2

• Overall Dimensions: 36in Wide x 13ft Long x 38in High


• Head Pulley
  • 6" Diameter x 30" Long
  • Steel

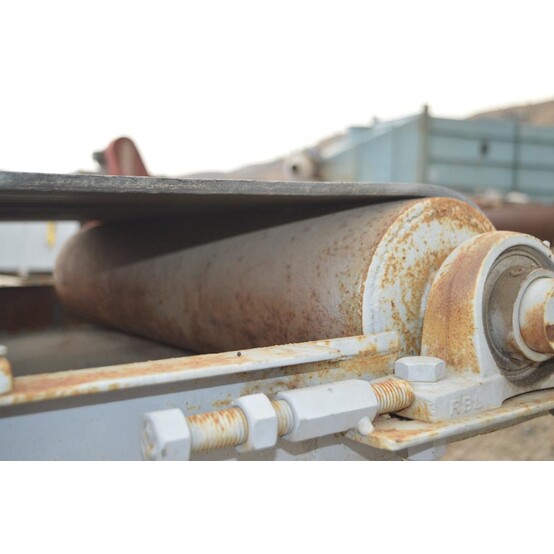

• Tail Pulley
  • 6" Diameter
  • Steel


• Rollers
  • 4" Diameter x 30" Long
  • Flat Type Rollers


• Belt
  • 29" Wide x 0.375" Thick
  • 1 Ply


• Motor
  • Leroy Somer TEFC
  • 0.5 HP
  • 115/230 Volts
  • 1 Phase
  • 1140 RPM
  • 56-10 Frame


• Reducer
  • Chain Driven


• Channel Frame

  • 4" Long x 1.5" Wide


• Mounted on 26" Tall 4" x 1.5" Channel
  • Castor Wheels on Legs


• Location: Savona, British Columbia, Canada
