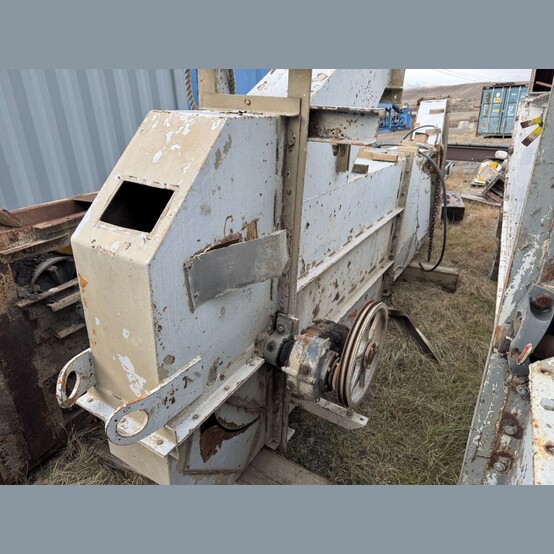

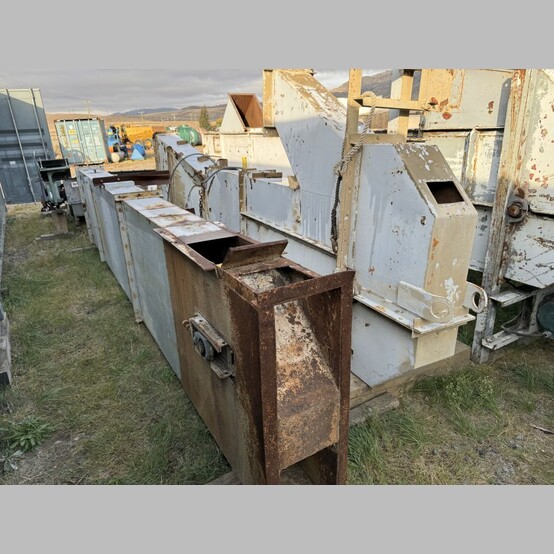

20ft Bucket Elevator

• Mfg. N/A
• Length - Distance Between Inlet & Discharge: 20ft
• Enclosure Width: 11in
• Type: Belt
• Inlet Dims: 11in x 16in
• Discharge Dims: 11in x 15in
  • Flanged Drop Chute Attached to Discharge Approx. 18in Lower than Bottom of Main Discharge
• Base to Center of Inlet: 24in
• Base to Center of Discharge: 22ft
• Bucket Size and Makeup: 8in x 5in Poly Buckets
• Bucket Spacing: 12in
• Drive: N/A
  • Shaft Mount Reducer
    • Size: PT3203S
    • Ratio: 15.24 - 1


• Overall Dimensions:
  • Depth: 78in
  • Width: 33in
  • Height: 26.5ft


• Location: Savona, British Columbia, Canada
