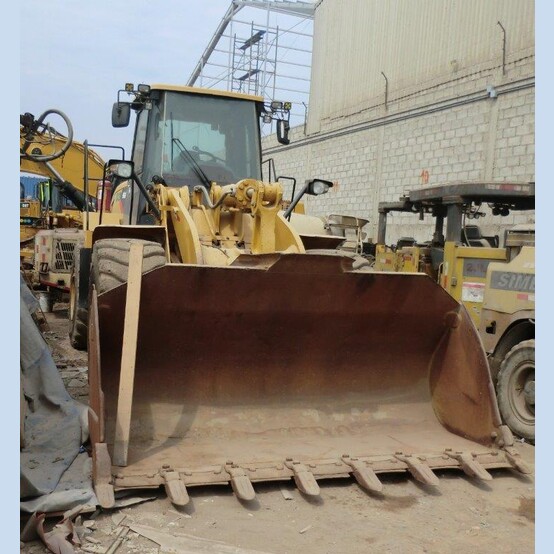

2019 CAT 966H Wheel Loader

  • Make: Caterpillar
  • Model: 966H
  • Year: 2019
  • Hours: 9,094
  • Condition: Used, Reported in Good Condition, Work-Ready
  • Capacity: 4.3m³ Rock Bucket
  • Engine: CAT C11 ACERT
    • Horsepower: 262HP Net (195kW)
    • Torque: 958 lbf-ft (1299 Nm)
  • Tires: 26.5Rx25 (65% Remaining)

  • General Model Specifications:
    • Engine
      • Engine Model: Cat C11 ACERT
      • Gross Power: 286HP (213kW)
      • Net Power: 262HP (193kW)
      • Peak Torque (Net): 896 ft-lb (1,215 Nm) @ 1,400 rpm
      • Bore: 130mm (5.12in)
      • Stroke: 140mm (5.51in)
      • Displacement: 11.1L (677in³)
      • Rating: EPA Tier III, EU Stage III Compliant

    • Operating Specifications:
      • Static Tipping Load, Full Turn: 15,474 kg (34,120 lbs.)
      • Breakout Force: 188 kN (42,300 lbf)

    • Buckets:
      • Bucket Capacities: 3.4-4.2m³ (4.5-5.5yd³)
      • Max Bucket Capacity: 4.2m³ (5.5yd³)

    • Transmission:
      • Gears: 4 Gears Forward, 4 Gears Reverse
      • Top Speed:
        • Forward: 23.2 MPH (37.4 KM/H)
        • Reverse: 23.2 MPH (37.4 KM/H)

    • Axles
      • Front: Fixed Front
      • Rear: Oscillating ± 13°
      • Maximum Single-Wheel Rise and Fall: 502mm (19.8in)

    • Hydraulic System:
      • Bucket/Work Tool System: 305 L/min (80.6 Gal/min)
      • Steering System Pump Type: Piston
      • Hydraulic Cycle Times:
        • Raise: 5.9 Seconds
        • Dump: 1.6 Seconds
        • Lower Empty: 2.4 Seconds
        • Total: 9.9 Seconds

    • Dimensions:
      • Length: 28ft 6in
      • Width: 10ft 6in
      • Height: 11ft 10in
      • Weight: 23,698 kg (52,254 lbs.)

  • Location: South America
