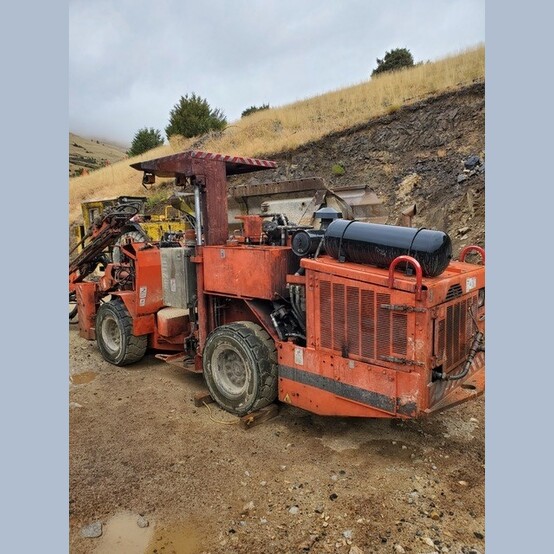

2015 Sandvik DD210 Single Boom Jumbo

• Make: Sandvik
• Model: DD210D
• Type: Single Boom Jumbo Drill
• Year: 2015
• Hours:
  • Engine: 1,595 Hours
  • Hammer: 751 Hours
• Condition: Used, Reported in Very Good Condition


• General Model Specifications:
  • Cornering:
    • Inner: 3,400mm
    • Outer: 5,100mm
  • Engine Power: 74kW
  • Feed Length: 5,270mm
    • TF500-12ft
  • Coverage: 24m²
  • Rock Drill: RDX5, 20kW
  • Hole Diameter: 76 - 127mm
  • Hole Length: Up To 3,480mm
  • Drift Size Class (H x W): 2,500mm x 2,500mm
  • Tramming Dimensions: 9,590 x 2,670 x 2,750 mm
  • Weight 8,680kg
  • Boom/Mast Type: B14F
  • Carrier Type: Wheel-Mounted, Frame-Steering
  • Control System: IBCQF
  • Engine Type: Deutz L04D914, Diesel
  • Feed Module: TF500-12ft


• Location: North Western USA
