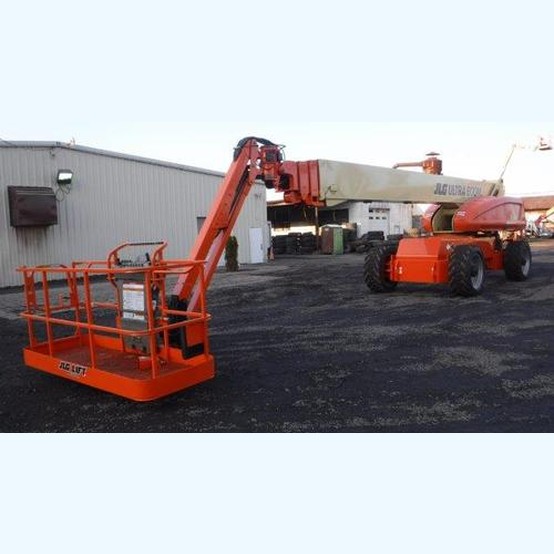

• Key Specs:
    • Platform Height: 120 ft / 36.58 m.
    • Platform Capacity- Restricted: 1000 lb / 453.59 kg.
    • Platform Capacity- Unrestricted: 500 lb / 226.80 kg.
    • Horizontal Outreach: 75 ft / 22.86 m.
  • Power Source:
    • Auxiliary Power: 12 Volts DC.
    • Capacity - Fuel Tank: 31 gal. / 117.35 L.
    • Engine Type – Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp.
  • Performance:
    • Axle Oscillation: 1 ft / 0.3 m.
    • Drive Speed - 4WD: 3.25 mph / 5.23 km/h.
    • Gradeability - 4WD: 45 %.
    • Platform Capacity – Restricted: 1000 lb / 453.59 kg.
    • Platform Capacity – Unrestricted: 500 lb / 226.80 kg.
    • Swing: 360 Degrees.
    • Swing Type: Continuous.
    • Turning Radius - Outside (axles extended): 19 ft 4 in. / 5.89 m.
    • Turning Radius - Outside (axles retracted): 22 ft 6 in. / 6.86 m.
    • Jib - Range of articulation: 130 Degrees.
