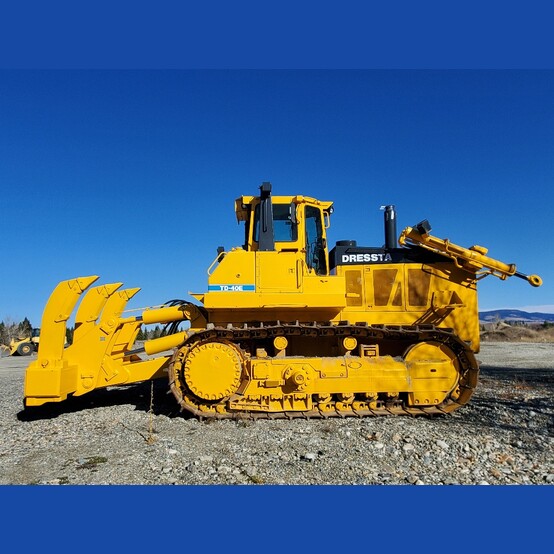

2006 Dressta TD-40E Dozer

  • Model: TD-40E
  • Hours: 13,800
  • Year: 2006
  • Rebuilt Transmission
  • All New Factory Hydraulic Pumps
  • Pins, Bushings, Trunnions, and Ground Engaging Components gauge out at 95% life Remaining by Dressta Dealer
  • Fresh Complete Service on Fluids and Filters
  • Previous Oil Samples all came back Clean
  • Cost of Upgrades: $50,000 USD
  • Comes With:
    • HVAC Cab
    • Joystick Controls
    • Full U-Blade
    • Twin Tilts
    • 4 Barrel Three Shank Ripper
    • Novatrax Fire Suppression System
  • Engine
    • Make: Cummins
    • Model: QSK19
    • Type: Inline 6 Cylinder
    • Displacement: 1,150 in³
    • Output
      • 560 HP (Gross)
      • Currently @ 545 HP
      • 1,755 lb/ft
  • Transmission:
    • Modular, Countershaft Type Power Shift, Electro-Hydraulic Control
    • Preset Travel Speed Selection And Auto-Downshift
    • 3 Speeds Forward, 3 Reverse, Combined with 2 Speed Steering Provides 6 Speeds Forward and 6 Reverse
    • Single Stage 17” (432 mm) Torque Converter with a 2.3:1 Stall Ratio drives to Transmission through a Double Universal Joint
  • Equipped with Enclosed Cab
    • Cab with 2 Post ROPS
    • Sound Suppression
    • Air Recirculation System
    • HVAC
  • Blade
    • Full-U with Tilt or Tilt/Pitch, 29.8 yd³ (22.8 m³) Full Width Wear Liner Package
    • Blade Dimensions
      • 17’ (5.18 m) Width over End Bits
      • 7’5” (2.26 m) Height, Struts Centered
    • Max Lift: 60.2” (1.53 m)
    • Max Drop Below Ground Level: 32.7” (830 mm)
    • Max Tilt: 49.2" (1250 mm)
    • Max Pitch: 10°
    • Blade Weight: 16,442 lb (7458 kg)
  • Ripper
    • Multi-Shank
    • Tool Beam:
      • Overall Width: 113.5” (2880 mm)
      • Cross Section: 21.7" x 17.7" (550 x 450 mm)
    • Shank
      • Number of Shanks per Ripper: 3
      • Penetration Max: 39" (1000 mm)
    • Weight
      • Complete with One Shank: 16,729 lb (7588 kg)
      • Each Additional Shank: 1,260 lb (570 kg)
    • Penetration Force: 46,084 lb (205 kN)
    • Pryout Force: 139,938 lb (622.5 kN)
  • Overall Dimensions:
    • Length (Blade and Drawbar): 27 Feet (8.24 m)
    • Length (Blade and Multi-Shank Ripper): 35 Feet (10.66 m)
    • Width over Trunnions: 12"3' (3.73 m)
    • Length with Ripper Only: 26 Feet (7.95 m)
  • Location: North Western USA
