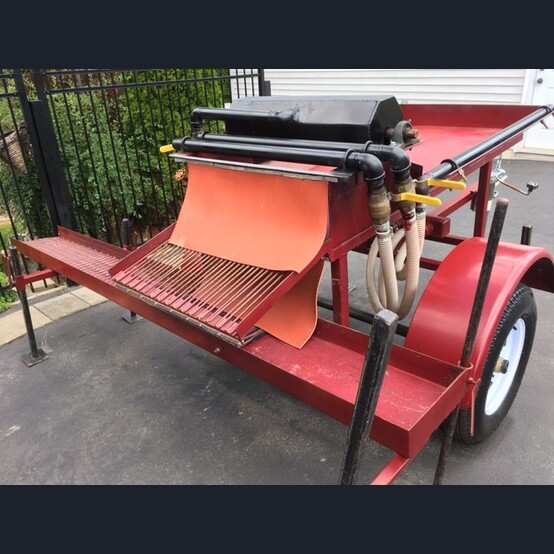

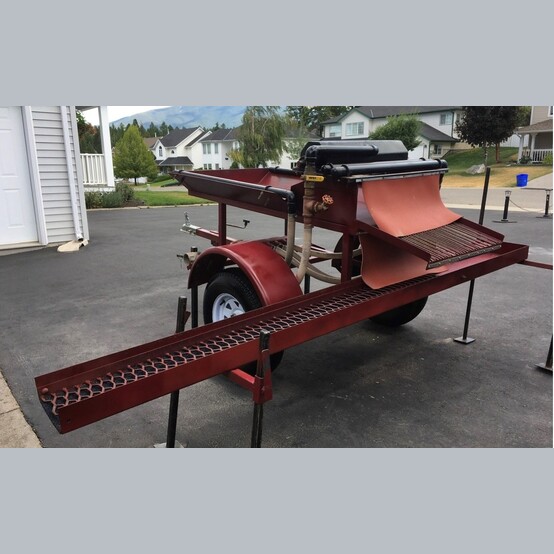

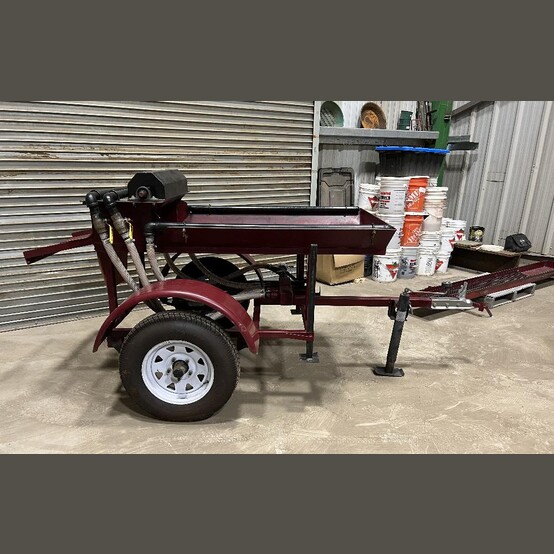

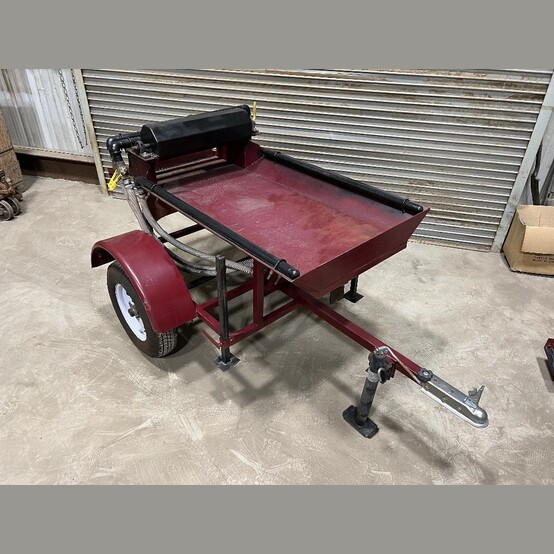

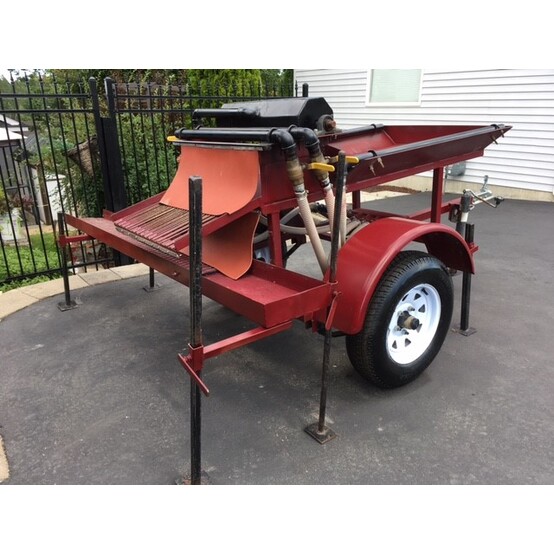

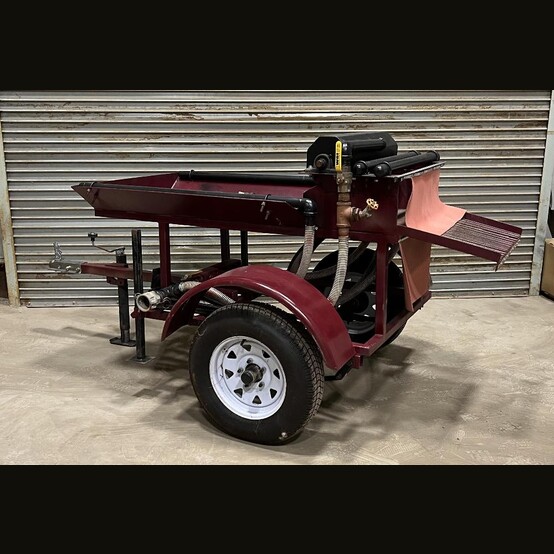

1YPH Test Wash Plant

• Capacity: 1yd³ Per Hour
• Condition: Used
• Hopper: 24in x 5ft
  • Adjustable Vibrating Deck
  • Spray Bars on Sides
  • Powered via Water Connection through Cam

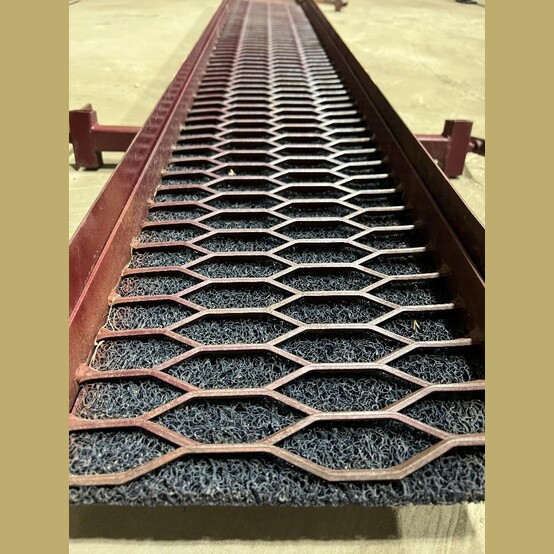

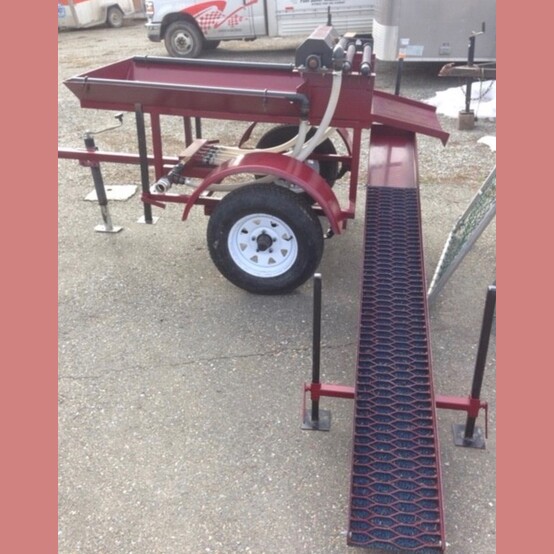

• Sluice Box: With Miner's Moss and Expanded Metal
  • Dimensions: 10in Wide x 8ft Long

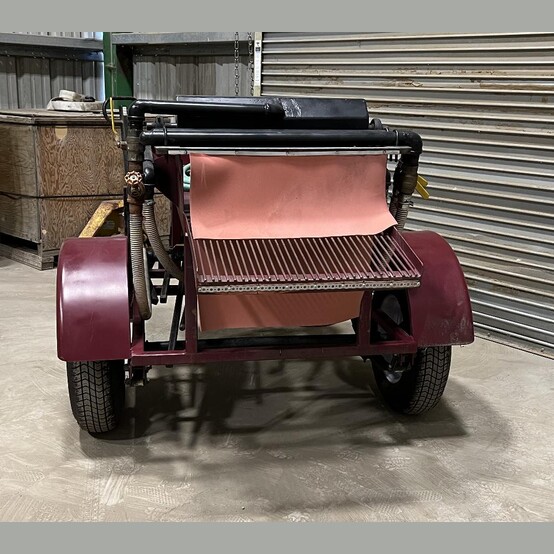

• Discharge: 24in Wide x 12in Grizzly Discharge

  • 0.5in Grizzly Spacing
  • Fines to Sluice Box, Overs Discharged off End

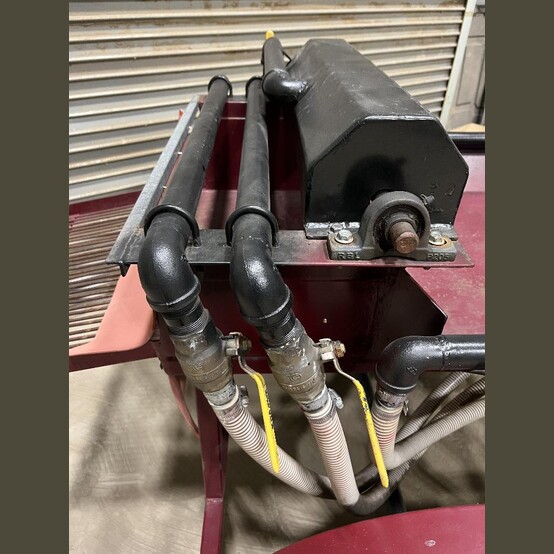

• 3 Adjustable Spray Bars
• All Run with 2.5in Water Pump (Not Included)

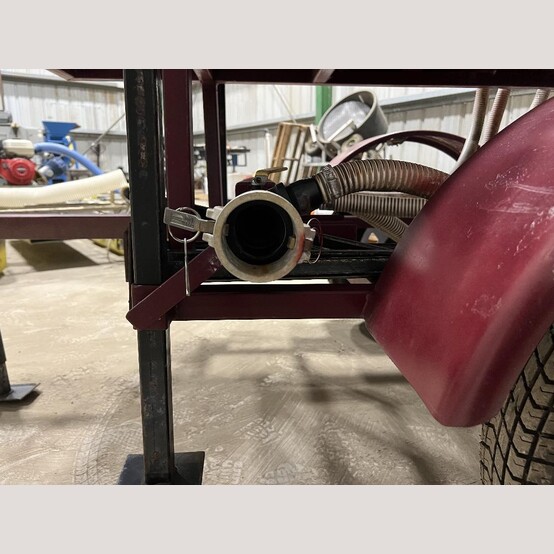

  • Cam-lock Fitting

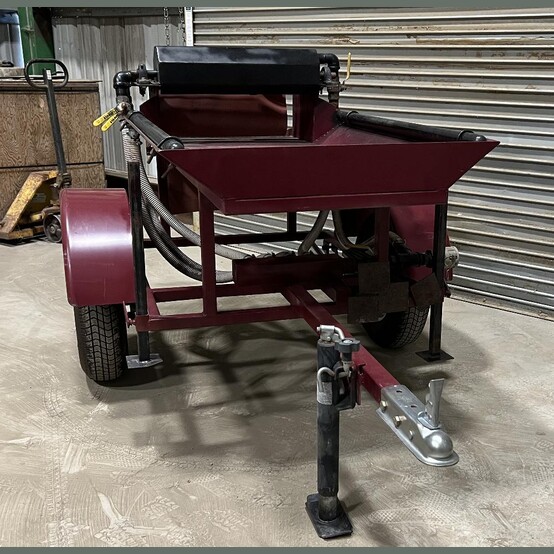

• Heavy Duty Trailer Mount
  • 2in Hitch
  • Single Axle

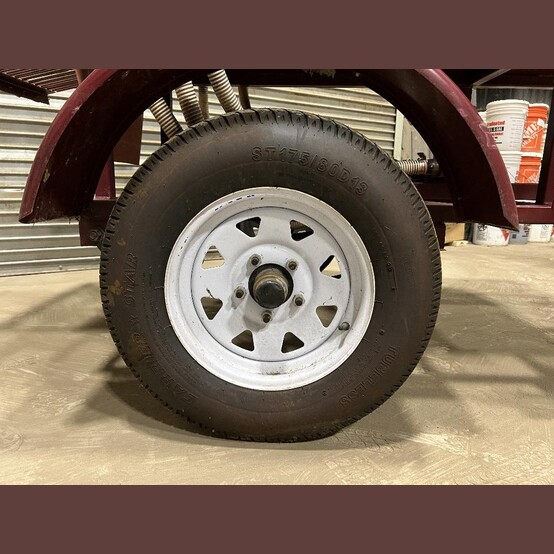

  • Tires: ST 175/80 D 13
  • Stabilizer Legs - 1in Tube
• Clean-Up Hose Connection
• Overall Dimensions:
  • Length: 9ft
  • Width: 5ft
  • Height: 4ft


• Location: Savona, British Columbia, Canada
