1HP Progressive Cavity Pump

• Style: Progressive Cavity Pump
• Type: Positive Displacement Pump
• Inlet: 2.0in

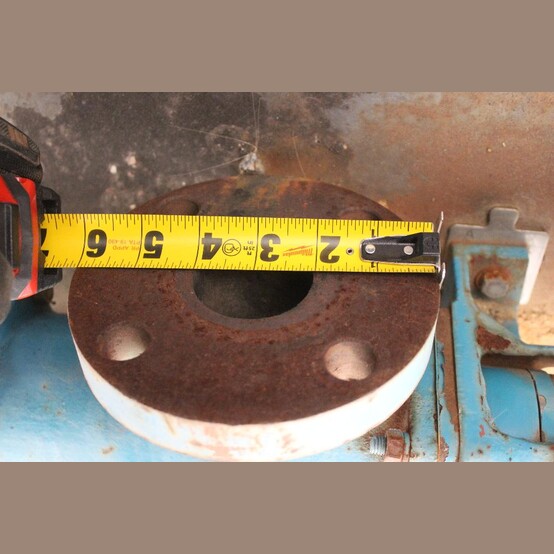

• Inlet Flange: 6in Flange
• Outlet: 1.5in
• Outlet Flange: 5in Flange


• Drive: Electric Motor

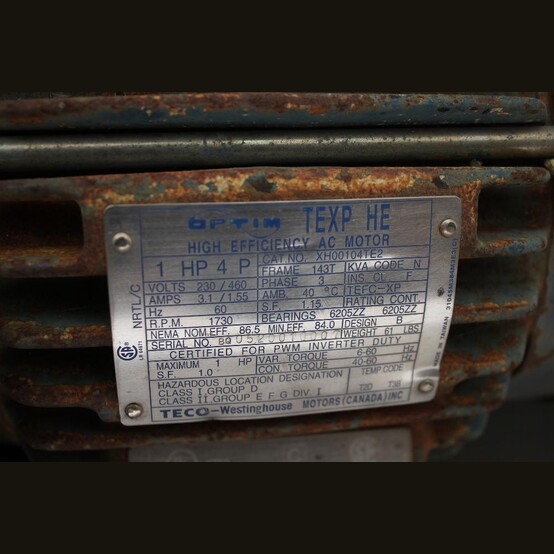

  • Make: TECO Westinghouse
  • Model: XH00104TE2
  • Power Output: 1HP
  • RPM: 1730
  • Voltage: 230/460 Volt
  • Amperage: 3.1/1.55 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase

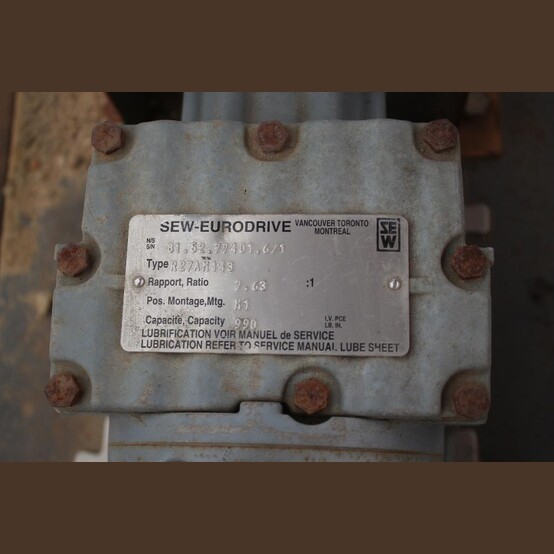

• Reducer: SEW-EuroDrive
  • Type: R27AM143
  • Ratio: 7.63:1
  • Capacity: 990 lb-in.
  • Output RPM: 226.7


• Location: Western Canada
