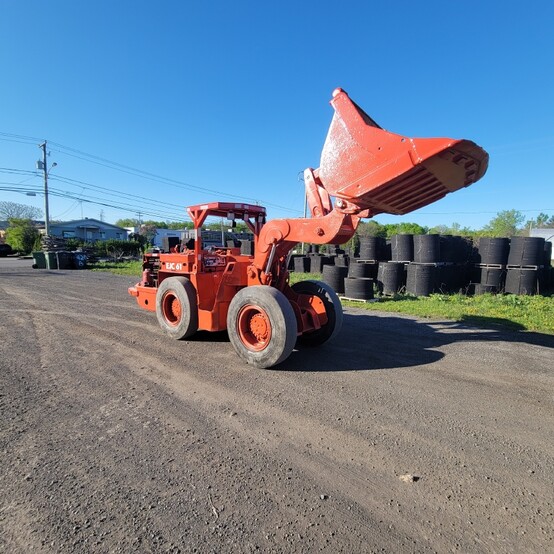

Tamrock 61D Scooptram

  • Make: Tamrock
  • Model: EJC 61D
  • Size: 1.5 Yard Scooptram
  • Hours: 1,200 Hours
  • Condition: Used, Reported in Good Condition
  • Canopy: ROPS
  • New Center Pin
  • New Boom Pins
  • New Tires
  • Fresh Paint

  • General Model Specifications:
    • Capacities:
      • Tramming Capacity: 6,000 Lbs (2,727Kgs)
      • Breakout Force:
        • Lift: 8,340 Lbs (3,791 Kgs)
        • Tilt: 10,450 Lbs (4,750 Kgs)
      • Tipping Load: 14,230 Lbs (6,468 Kgs)
      • Bucket: 1.5yd³ (1.14m³)

    • Bucket Motion Times:
      • Raising Time: 6.5 Seconds
      • Lowering Time: 4.3 Seconds
      • Dumping Time: 3.0 Seconds

    • Driving Speeds: (Loaded)
      • Forward and Reverse: 0-9.6 MPH (0-15.5 KPH)

    • Engine: Deutz F5L-912W Diesel
      • Hours: 1,200
      • Power Output: 68HP @2,300 RPM
      • Torque: 169 ft-lbs @1,550 RPM

    • Powertrain:
      • Transfer Case: Clark Geardrive 2.39:1
      • Transmission: Rexroth AA4V56 Hydrostatic Transmission
      • Axles: Clark 12D0840
        • Conventional Front Differential
        • No-Spin Rear Differential
        • Fixed Axles
        • Center Articulation/Oscillation: 16°

    • Brakes:
      • Dynamic Service Braking: Through Hydrostatic Transmission
      • Parking Brake: SAHR

  • Overall Dimensions:
    • Length: 216in (5,486mm)
    • Width: 57in (1,448mm)
    • Height: 74in (1,879mm)
    • Weight: 12,700 Lbs

  • Location: Eastern Canada
