1989 CAT D8N Dozer

  • Make: Caterpillar
  • Model: D8N
  • Year: 1989
  • Hours:10,830 Hours - 500 Hours on Rebuilt Engine
  • Condition: Used
  • Cab: OROPS
  • Blade: S/U Tilt
  • Undercarriage: 50% Approx. Average U/C
  • Differential Steer

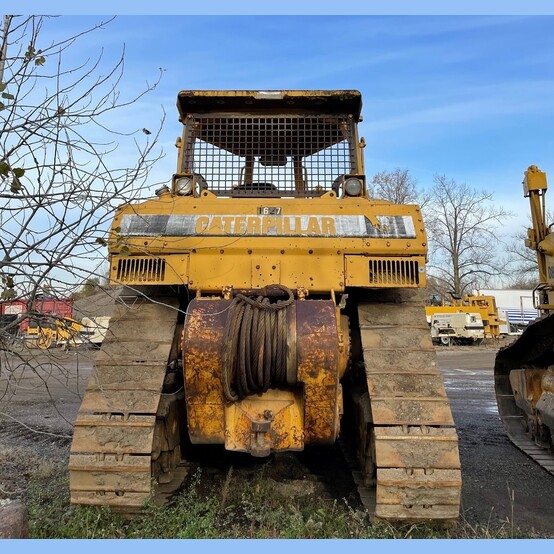

  • Rear Mounted Winch

  • Engine:
    • Engine Make: CAT
    • Engine Model: 3406C
    • Power: 306HP@2100RPM
    • Displacement: 891in³

  • Transmission
    • Transmission Type: Planetary Powershift
    • Number Of Forward Gears: 3
    • Number Of Reverse Gears: 3
    • Max Speed - Forward: 6.8MPH
    • Max Speed - Reverse: 8.7MPH

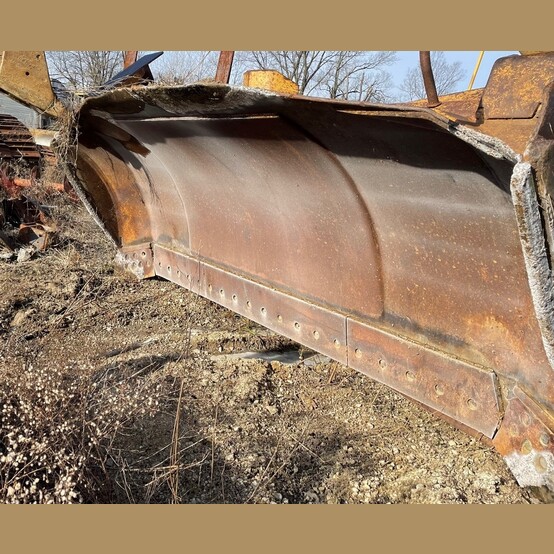

  • Blade: 8SU
    • Capacity: 8.7m³ (11.4yd³)
    • Cutting Depth: 23in
    • Width: 156in (13ft)
    • Height: 66in

  • Hydraulic System
    • Relief Valve Pressure: 3500 PSI
    • Pump Flow Capacity: 63.5 Gal/min

  • Undercarriage
    • Track Gauge: 6.84ft
    • Standard Shoe Size: 22.05in
    • Number Of Shoes Per Side: 44
    • Ground Pressure: 14.6 PSI
    • Ground Contact Area: 5,580in²
    • Number Of Track Rollers Per Side: 8
    • Track Pitch: 8.5in

  • Operational
    • Operating Weight: 82,590 lbs.
    • Fuel Capacity: 129 Gal
    • Cooling System Fluid Capacity: 19.6 Gal
    • Engine Oil Capacity: 9.8 Gal
    • Hydraulic Fluid Capacity: 18.5 Gal
    • Powertrain Fluid Capacity: 34.1 Gal
    • Final Drives Fluid Capacity: 3.7 Gal
    • Operating Voltage: 24V
    • Alternator Supplied Amperage: 50 Amps

  • Overall Dimensions:
    • Length: 20ft 8in
    • Width: 10ft (13ft with Blade)
    • Height: 11ft 3in
    • Weight: 82,590 Lbs.

  • Location: Eastern USA
