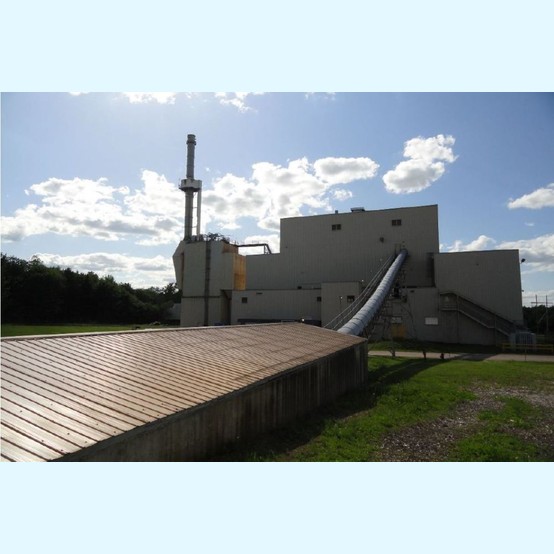

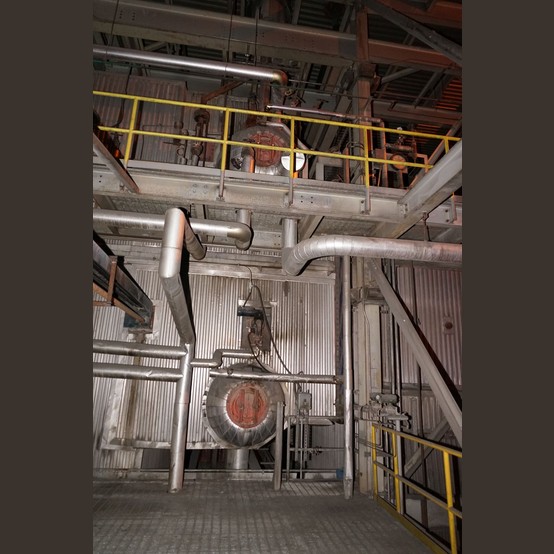

• Boiler unit is a Riley type VR boiler continuous rating 170,000 pounds per hour steam at 1280 psig and 955 °F
  • Boiler is top supported with Detroit Hydrograte Stoker
  • Water cooled vibrating grate
  • can burn up to 50% moisture wood chips
  • 4326 btu/lb
  • 59,902 lbs./hr fuel
  • with feed water temperature 402 ° F

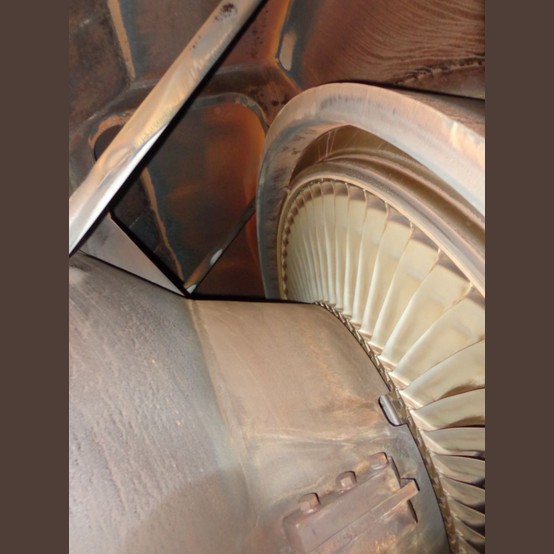

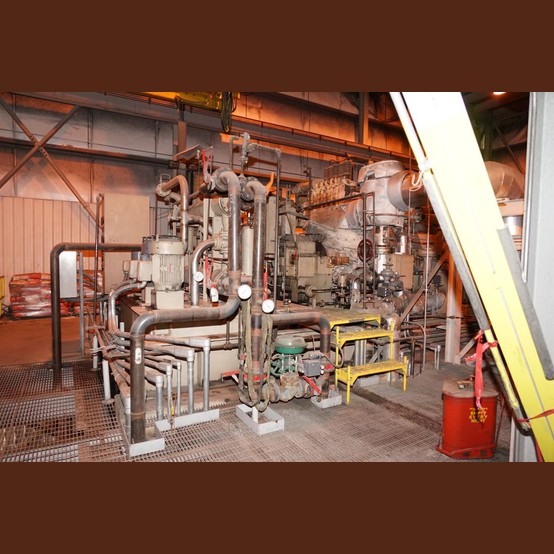

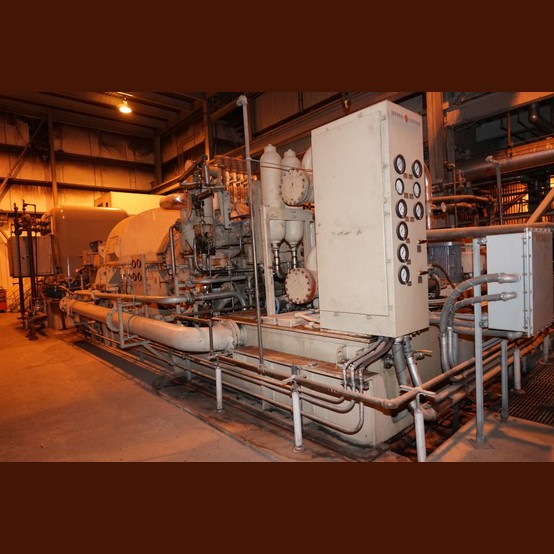

• Steam Turbine Generator is General Electric 19700 kw
  • serial number 155030
  • 13 stage condensing unit with four uncontrolled extractions
  • 5596 rpm

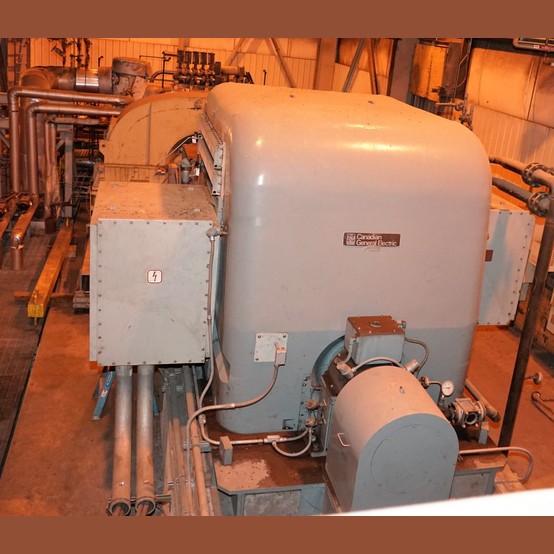

  • Turbine and Lufkin Gear box mounted on one skid driving GE 21890 kva
  • 1800 rpm
  • 13800 v
  • 3 phase
  • 60 hz
  • TEWAC
  • Brushless exciter Generator
• Condenser Graham surface condenser
  • 2 in. HgA
  • condensing 126,000 pounds per hour steam
  • 19,770 square feet
  • 316SS tubes
• Cooling Tower Thermal Dynamic Towers 22,000 gpm
• Induced draft 2 cell
• ESP Belco Technologies BT-30

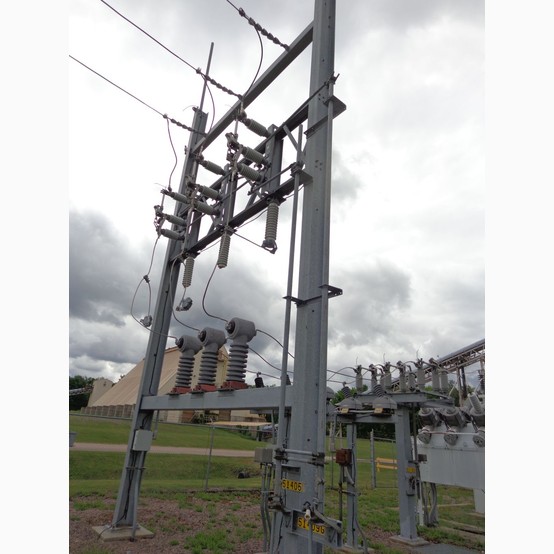

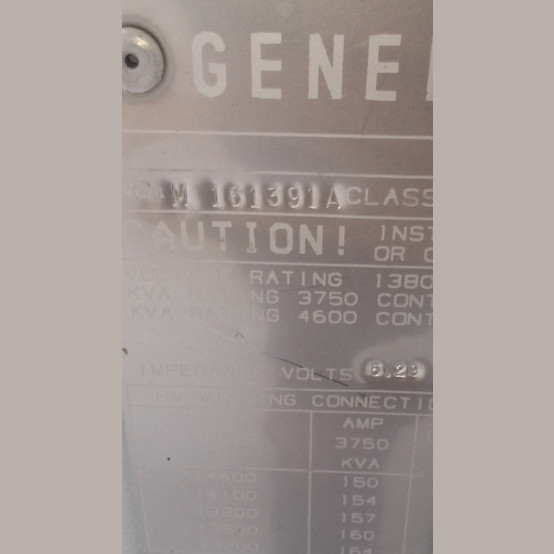

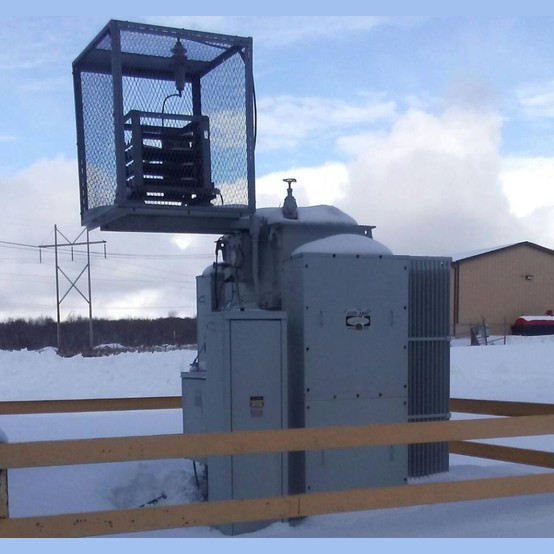

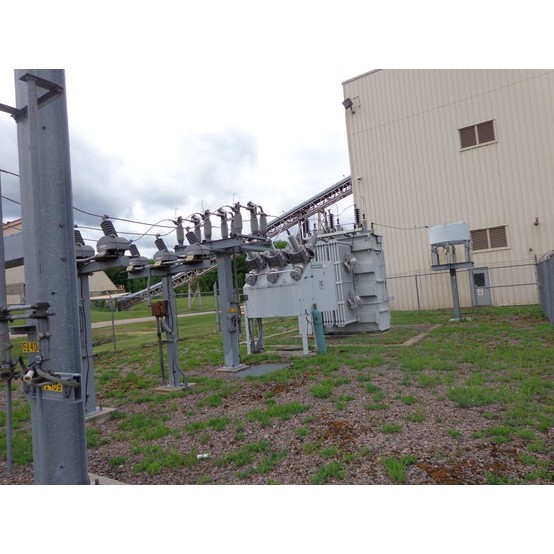

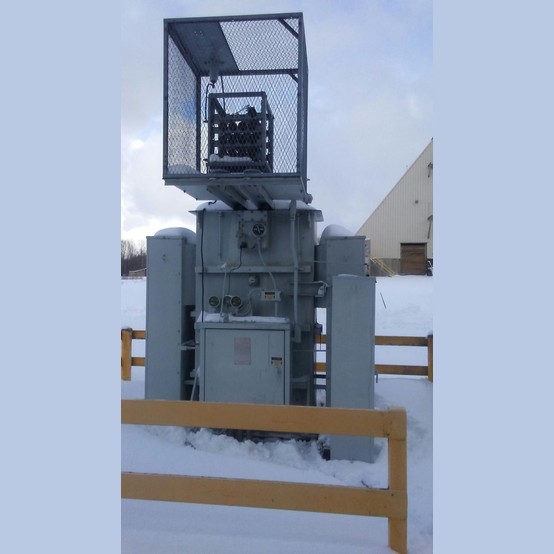

• Substation 15.75/21 MVA
• 34.5 kv Grdy/13.8 kv

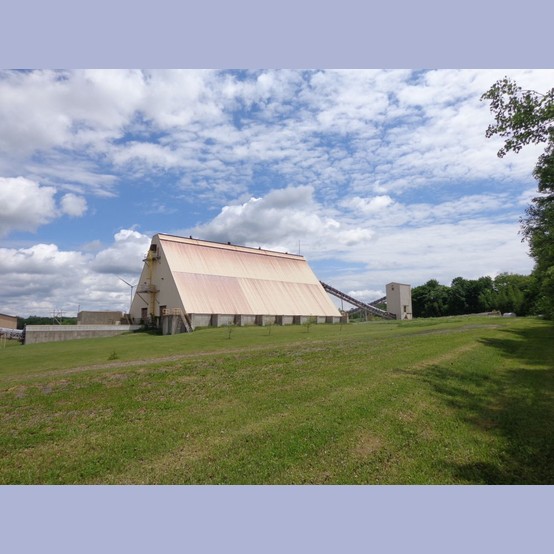

• 19 Acre land with well water
• 34.5 kv transmission power line
• Shut down in 2013 maintained to start back-up
• Location: Eastern USA
