• Capacity: 150 kg/Day

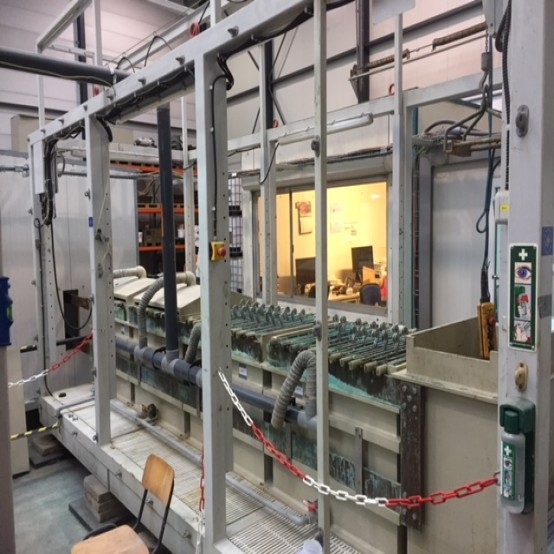

• 1 Skid (2150 x 5600 x 4000mm) with

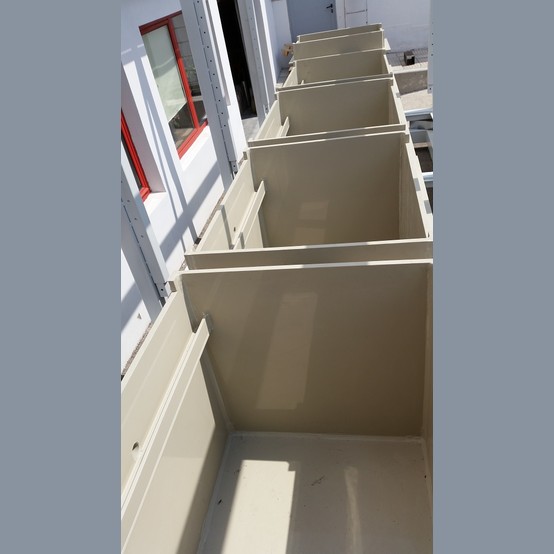

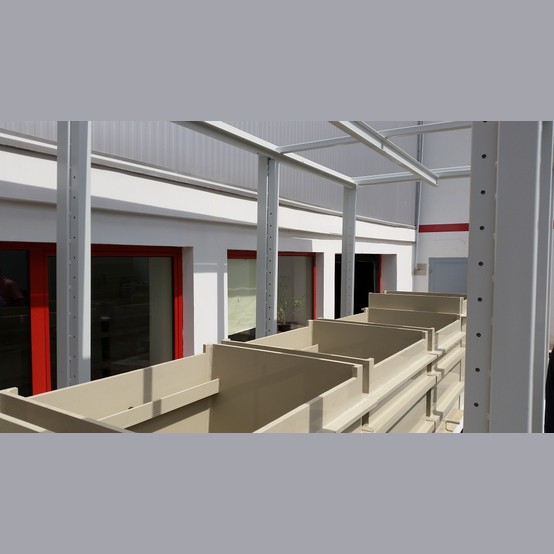

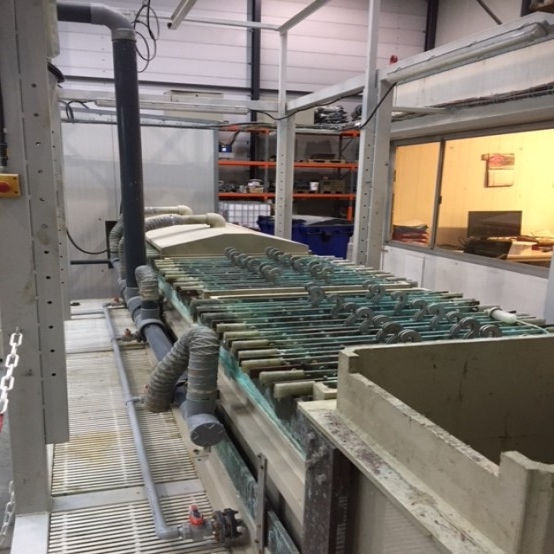

  • 4 Electrowinning cells in series.
  • Busbars.

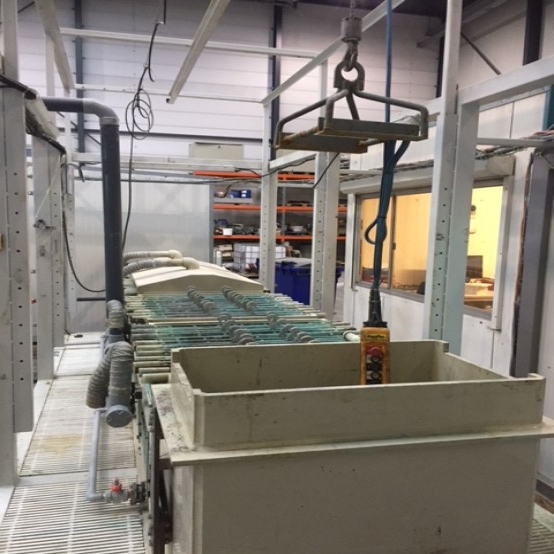

  • Hoist for removal of cathodes
• Input Voltage: 440 volt, 50/60Hz
• Output 8 V at 1350 A.
• The 4 cells are built in series.
  • 2V/ EW cell.
• Stainless steel 316L cathodes and have a surface area of 0.6*0.5 m.
• 40 anodes (lead) and 40 cathodes (stainless steel 316L) included with an area of 0,5 x 0,5 m (h x w)

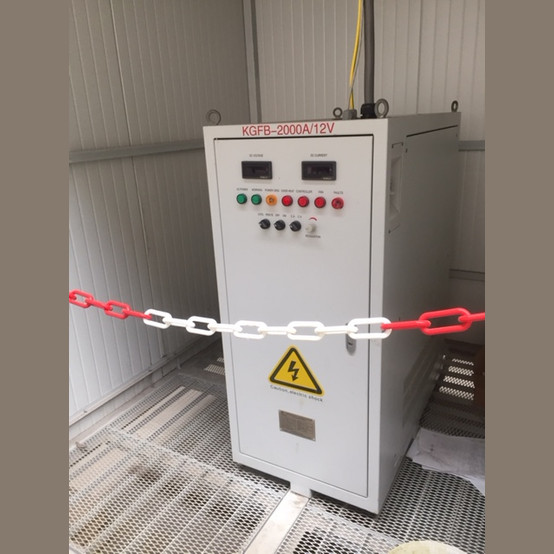

• One small skid containing the rectifier:
  • 2000A
  • 12V
• Exhaust hoods on cells included
• Location: Europe
