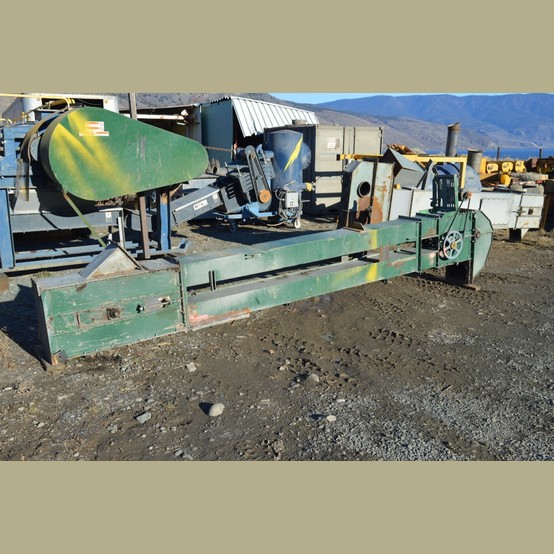

• Length Distance Between Inlet & Discharge: 15 ft.
• Enclosure Width: 12 in.
• Type: Belt

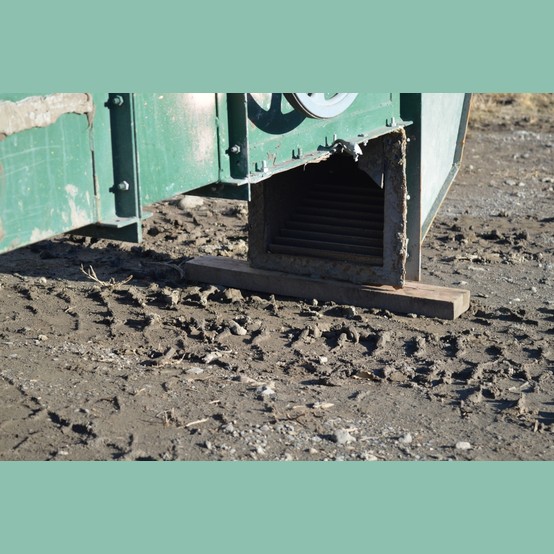

• Inlet Dimensions: 9 in. x 9 in.

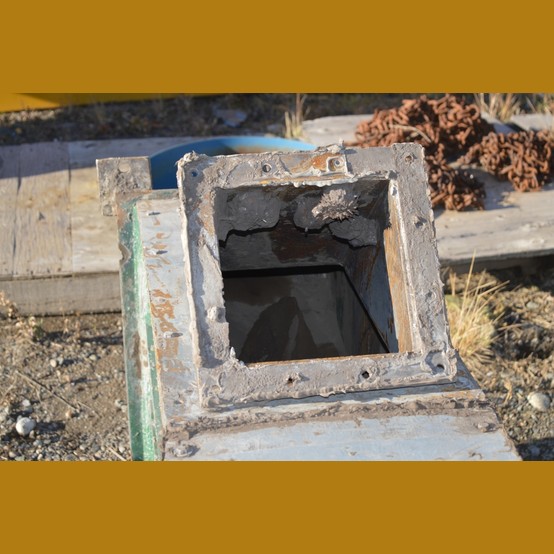

• Discharge Dimensions: 9 in. x 12in.
• Base to Center of Inlet: 29 in.
• Base of Center of Discharge: 17 ft.

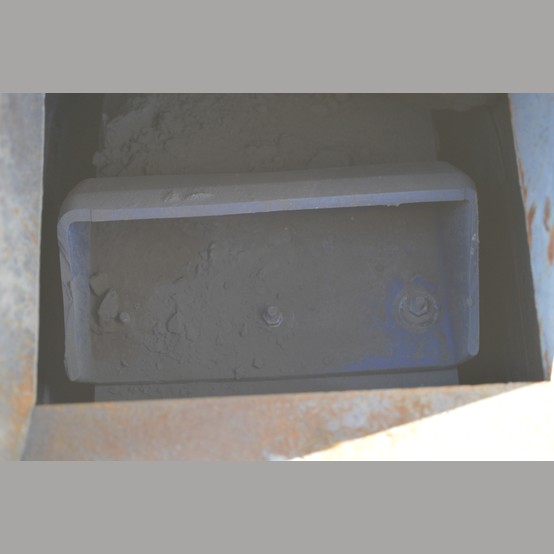

• Bucket Size and Makeup: 5 in. x 9 in. Poly
• Bucket Spacing: 9 in.

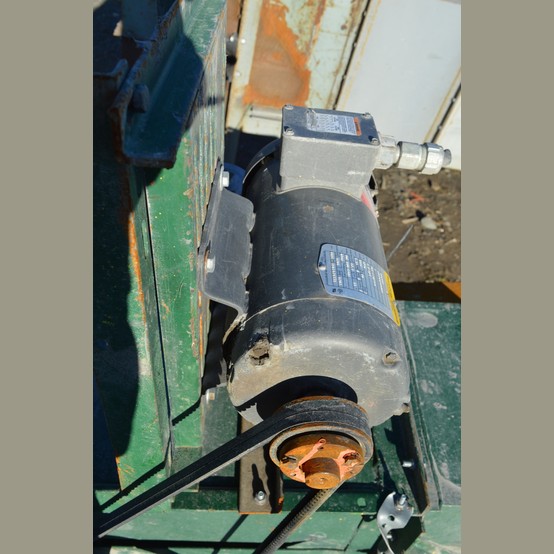

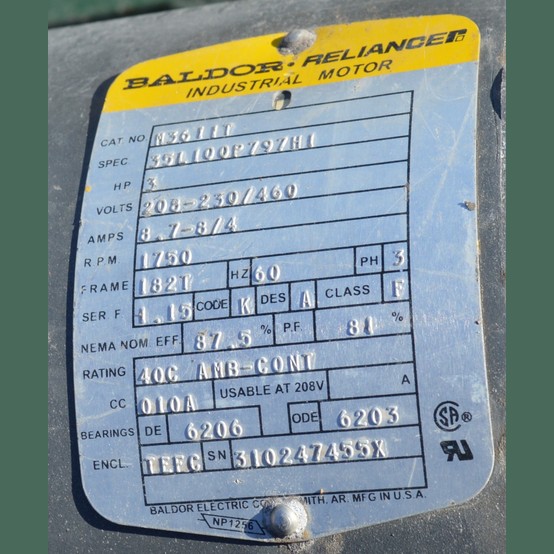

• Drive: Baldor
  • 3 hp
  • 230/460 Volt
  • 1750 RPM
  • Frame: 182T
• Reduction: Jack Shaft Reduction
  • Motor Sheave: 3.25 in. Dia.
  • JS Input Shaft Sheave: 14 in. Dia.
  • JS Output Shaft Sheave: 4.5 in. Dia.
  • Head Pulley Sheave: 13.5 in. Dia.
  • (Head Pulley Speed 146 RPM)
• Overall Dimensions:
  • 60 in. x 24 in. Wide
  • Height: 18 ft. 6 in.
• Location: British Columbia, Canada
