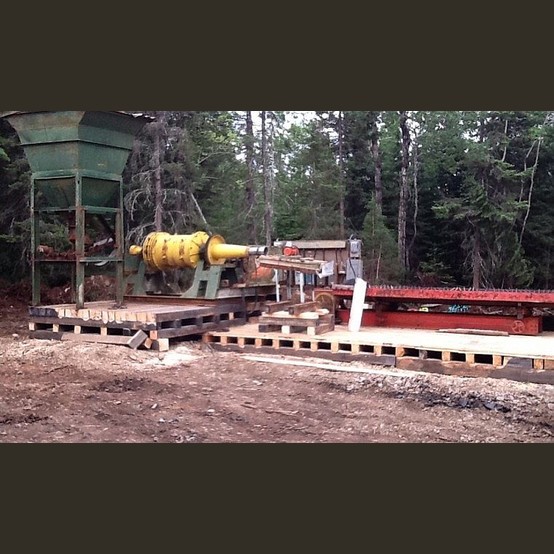

• Mill throughput is variable depending on feed size and material.
    • Capacity: 10 tons per day.
  • Jaw crushers, feeded conveyor, and bin on structure.
  • 12 in. x 26 ft. long conveyor (jaw to bin).
  • 5.5 ft. x 5.5 ft. x 7 ft. bin on structure with 10 in² flop gate.
  • 7 in. x 4 ft. feeder conveyor (bin to ball mill feed bin).
  • Ball mill with steel lifter liners and integral hammer mill section.
    • Scoop feeder with feed bin.
    • External spur gear speed reducer with belt drive.
    • Overflow discharge.
    • Base frame mounted.
  • Wilfley 5 ft. x 15 ft. concentrating table.
  • Detroit diesel generator.
    • 600V.
  • Electrical included.
    • Wall mounted 600V primary fused disconnect.
    • Splitter box.
    • Electric starters.
    • Breakers and step-down transformer.
