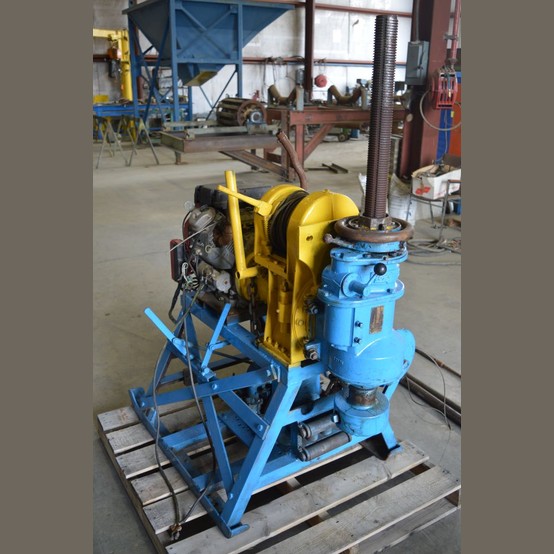

• Drill and Hoist Driven by Honda 24 HP Motor.
  • 2 Spread Gearbox.
  • Wire line driven by Briggs and Straton 5 HP Motor.
  • Boyles Pump (Single Piston):
    • Model: 5-12.
    • 2 In. x 2 In.
  • 2 Rod Pullers.
  • 2 Water Swivels.
  • 1 Holding Dog.
  • 1 Bucket Miscellaneous Bits.
  • 1 New 5 Ft. Recovery Tube.
  • 1 New 10 Ft. Recovery Tube.
  • (40) 10 Ft. Drill Rods.
  • 250 Gallon Mud Tank with Mixer and Pump.
  • Tank Dimension:
    • 59 In. X 32 In. X 32 In. (L X W X H).
    • 57 In. to top of Motor.
  • Bean Pump 4 Cyl:
    • Model No.: 318-5.5.
    • Pressure: 600.
    • Serial No.: 72252 Y1.
    • HP: 5.4.
    • RPM: 515.
    • GPM Diesel: 13.
    • Powered by Brigs Single Cyl Engine.
  • Mixer powered by Brigs 3.5 HP:
    • Shaft Length: 22 In.
    • Impeller: 3 Blade.
  • Mixer Containment Unit:
    • 19 In. X 19 In. X 28 In. (L X W X H).
    • 37 In. High to top of the motor.

View more Diamond Drills

Image 1 of 19

Manufacturer:Longyear

Longyear
