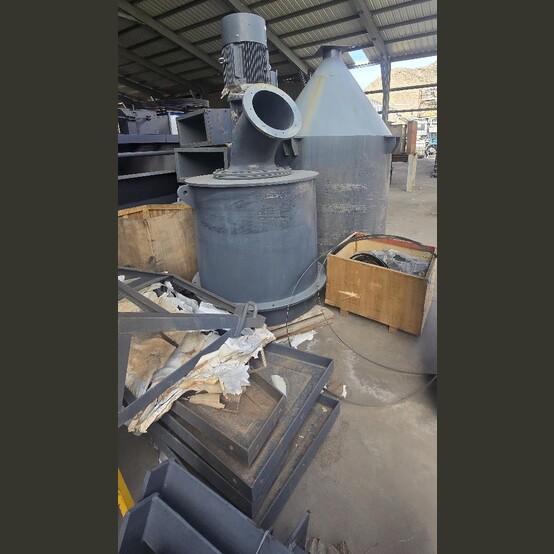

Zenith Minerals XZM Ultrafine Grinding Mill

• Make: Zenith Minerals
• Model: XZM 221
• Type: Ultrafine Grinding Mill
• Style: Complete Mill
• Condition: Unused, New Surplus

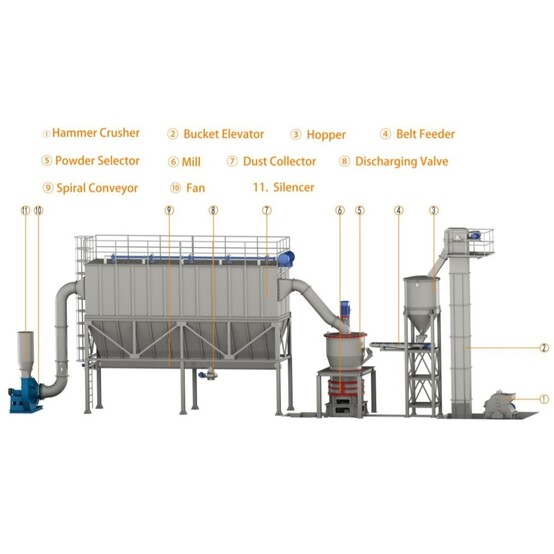

• Includes:
  • Ultrafine Grinding Mill
  • Powder Selector

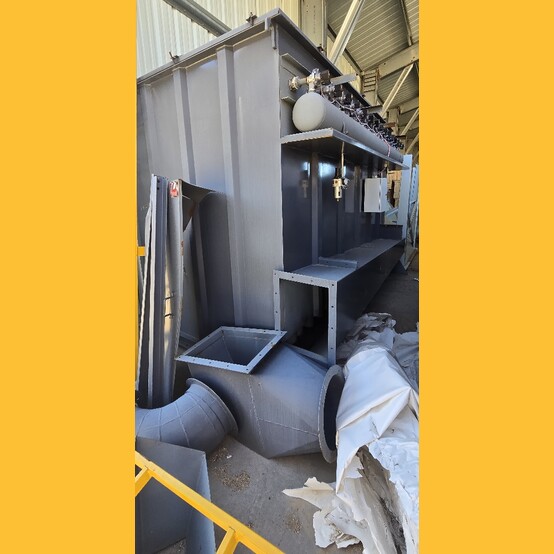

  • Dust Collector
  • Fan
  • Silencer
  • Crusher
  • Elevator
  • Stock Bin and Feeder


• Description: The XZM Ultrafine Grinding Mill is suitable to produce fine and superfine powder. It can be used to process non-flammable and non-explosive brittle material whose Moh’s hardness is below 6.


• General Model Specifications:
  • Average Working Diameter: 800mm
  • Qty. of Ring (Layers): 3
  • Axial Rotation Speed: 230-240 RPM
  • Input Size: ≤10mm
  • Final Product Size Range: 325-2500 Mesh
  • Capacity: 0.4-4 TPH
  • Main Motor Power: 75kW
  • Analytical Engine Power: 18.5kW
  • Blower Motor Power: 45kW
  • Crusher:
    • Model: PC400×600
    • Power: 18.5kW
  • Elevator:
    • Model: TH-200
    • Power: 3kW
  • Vibrating Feeder:
    • Model: 300×60×1.8 Φ159-1.8
    • Power: 1.5kW
  • Discharge Screw Conveyor:
    • Model: LS219-4.5/LS219-3
    • Power: 3kW
  • Discharge Valve:
    • Model: ZJD-200
    • Power: 0.75kW×2 / 0.75kW×1
  • Pulse Dust Collectors
    • Model: DMC120/DMC160
  • Air Compressor:
    • Model: LGY-2.8/8
    • Power: 15kW


• Location: Western USA
