• Number of cells in each bank: 12

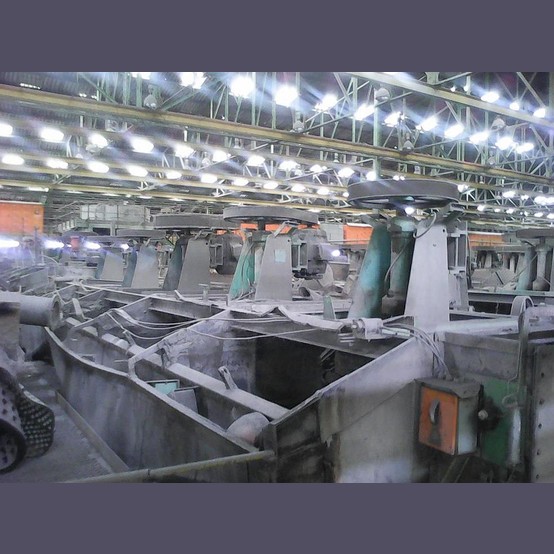

  • Type of Machines: 300 CU
  • Rotor speed: 220 rpm
  • Drive Pulleys: Motor pulley- 8”dia x 12M, 60mm bore
  • Motor pulley size: 36” dia x 12M, 3-7/16” bore
  • Oil seal , Gaco Rubber , MIS 315
  • Drive Belts: Poly V-belts size- 1310 M12 , 27.4” CRS
  • 40 hp motor (30 kW)
    • Volts: 550
    • RPM: 970
    • Hz: 50
    • Ph: 3
    • Frame: D225m
  • Quantity: 2 banks
  • Location: Africa
