System Components:

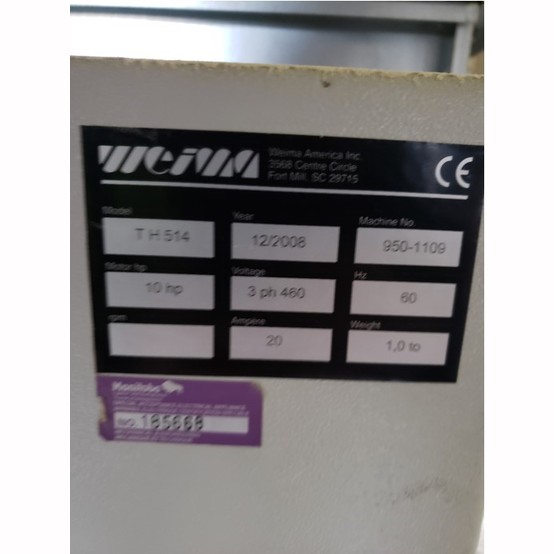

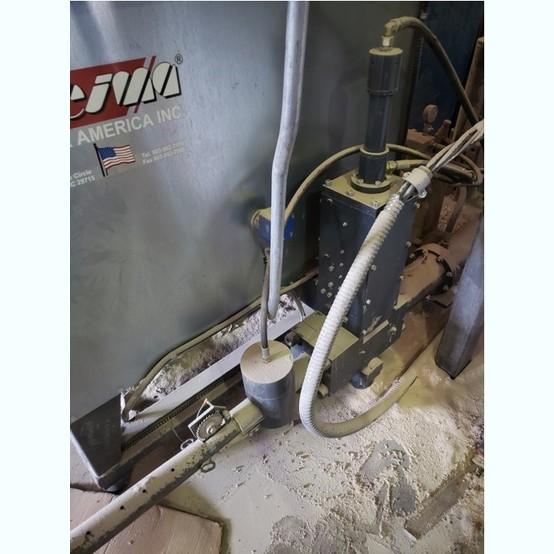

  • Model: TH514
  • Description: 2 in. Briquetter
  • Manufacturer: Weima America Inc
  • Press Type: Hydraulic
  • Press Diameter:  2 in.
  • Hours: 1410 hrs.
  • Hopper Size: 55.1 x 55.1 x 37 in.
  • Hopper Volume: 2.4 Cubic Yards
  • Motor Size: 10 hp (7.5kW)
  • Power: 460v/60Hz/3 Phase
  • Weight: 2,094 lbs
  • Machine Size: 94x74x59 in.

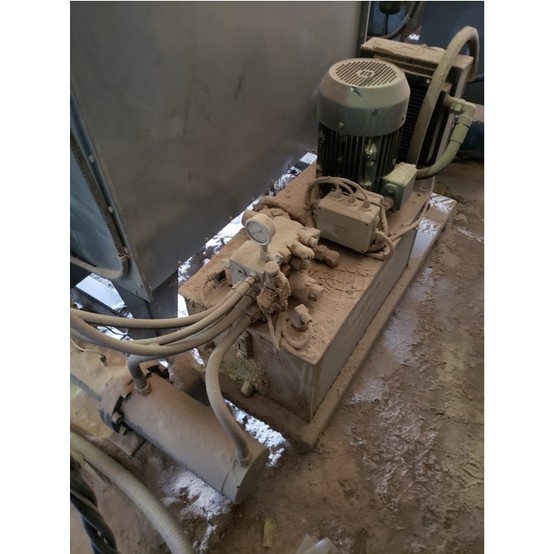

  • Hopper, hydraulics and press are mounted on a frame with anti-vibration foundation
  • Complete with:

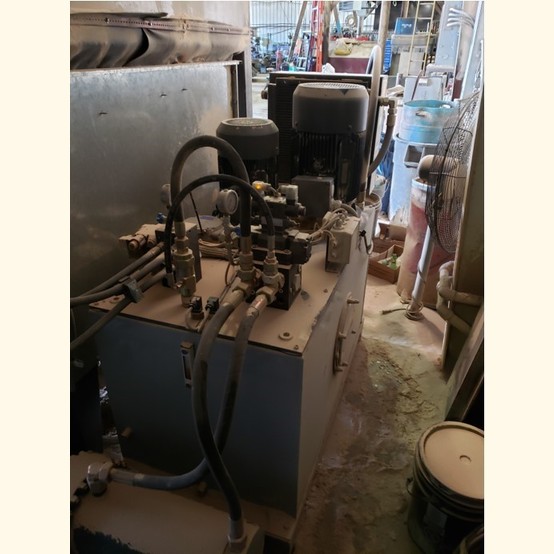

    • Hydraulic Oil Cooler
    • Over Heating Protection
    • Auto Shutoff when Feed Hopper is Empty
  • This unit has paddles in feed hopper to eliminate bridging and insure proper feeding of press
  • Condition: Good Working Order

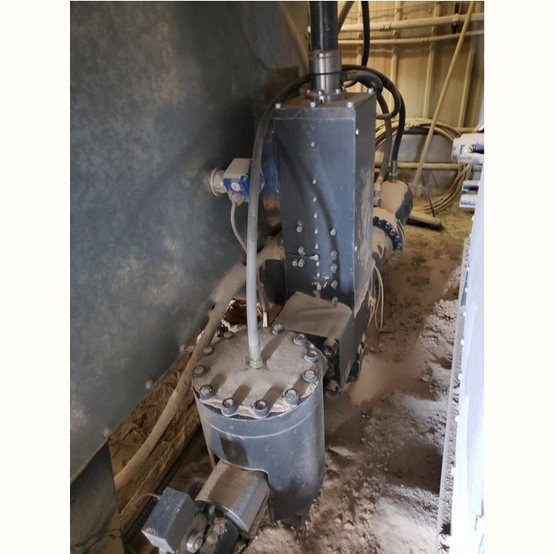

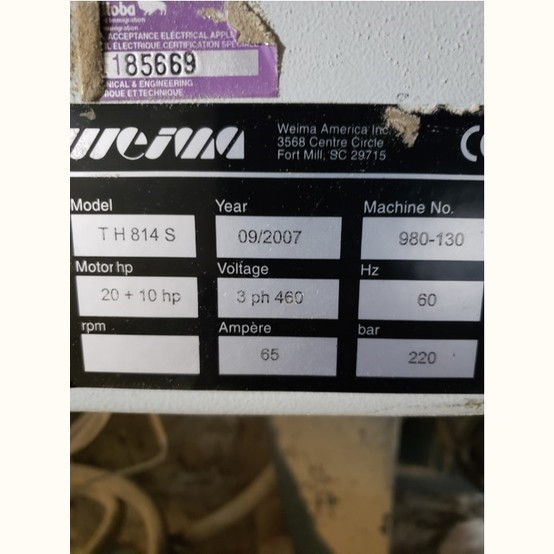

  • Model: TH814s
  • Description: 3 in. Briquetter
  • Manufacturer: Weima America Inc
  • Press Type: Hydraulic
  • Press Diameter: 3.1 in.
  • Hours: 2710 hrs
  • Hopper Size: 55.1 x 55.1 x 37 in.
  • Hopper Volume: 2.4 Cubic Yards
  • Motor Size: 20 hp (15kW)
  • Power: 460v/60Hz/3 Phase
  • Weight: 5,600 lbs
  • Machine Size: 102"x100x59 in.
  • Hopper, hydraulics and press are mounted on a frame with anti-vibration foundation
  • Complete with:
    • Hydraulic Oil Cooler
    • Over Heating Protection
    • Auto Shutoff when Feed Hopper is Empty
  • This unit has paddles in feed hopper to eliminate bridging and insure proper feeding of press
  • Condition: Good Working Order

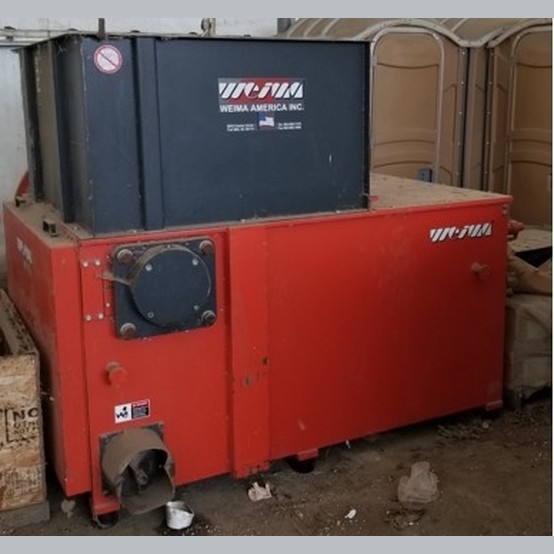

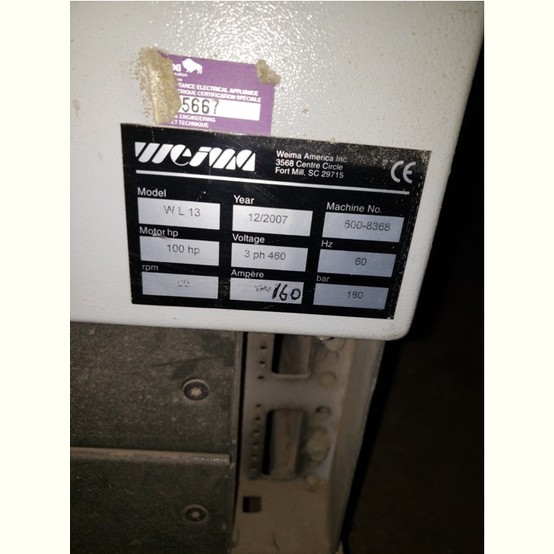

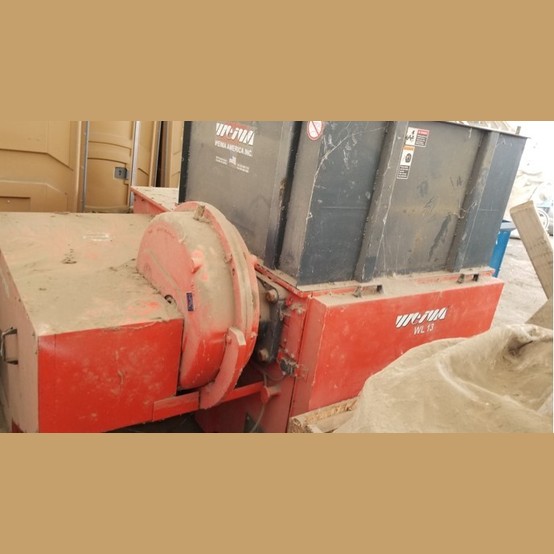

  • Model: wlk 13
  • Description: Shredder
  • Manufacturer: Weima America Inc
  • Hours: 631 hrs
  • Hopper Opening: 51.2x47.2 in.
  • Rotor Type: Dia 14.5 in. x 51.2 in. V-Rotor
  • Cutters: 70 pcs Indexable concave
  • Extraction requirement: 3000 cfm, 10: diameter
  • Motor Size: 100 hp (75kW)
  • Power: 460v/60hz/ 3 phase
  • Weight: 10,000 lbs
  • Machine Size: 102x98x75 in.
  • Control Panel Size: 40x18x71 in.
  • Shredder has anti-vibration foundation. Hydraulic ram with auto reverse presses material against the rotor for quicker material processing.

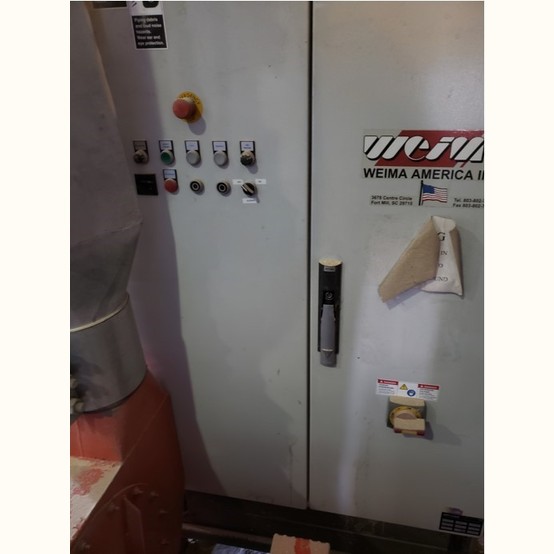

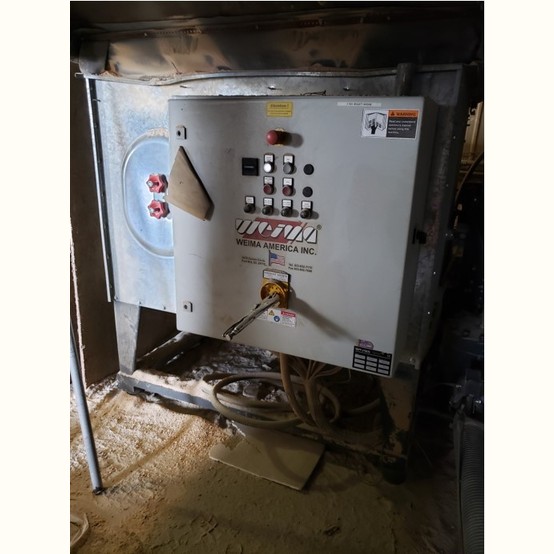

  • Control panel is a stand-alone unit.
  • Condition: Good Working Order

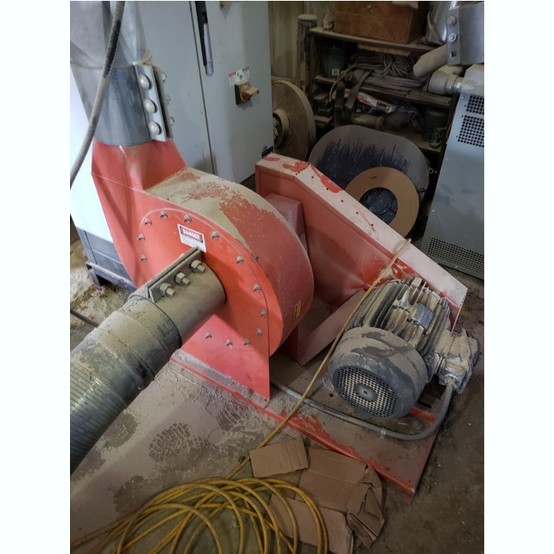

  • System includes
    • Pipes to Run from Blower to Cyclone.
  • Takes output from shredder and blows it into cyclone which is currently mounted on the top of our storage hopper.

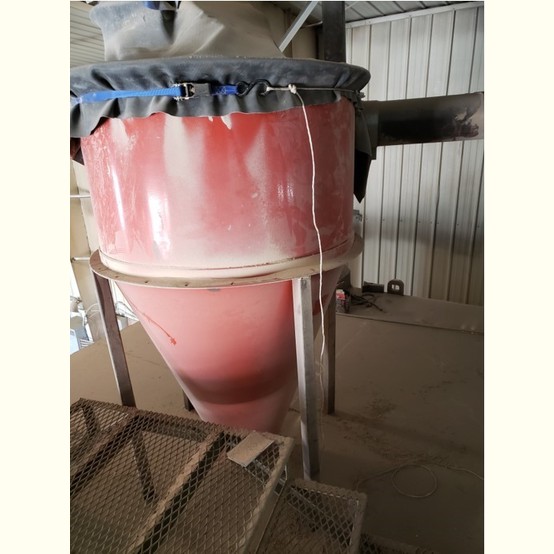

  • Cyclone Size: 45x48x72 in. Bolting flange on bottom
  • Blower Size: 52x56x45 in. Mounted on plate with motor. Belt drive
  • Weight: Included in shredder weight
  • Power: 460v/60hz/ 3 phase
  • Motor Size: 15 hp (11kW)
  • Hours: 700 hrs
  • Manufacturer: Weima America Inc
  • Description: Blower/Cyclone
  • Model: Pneumatic Discharge System

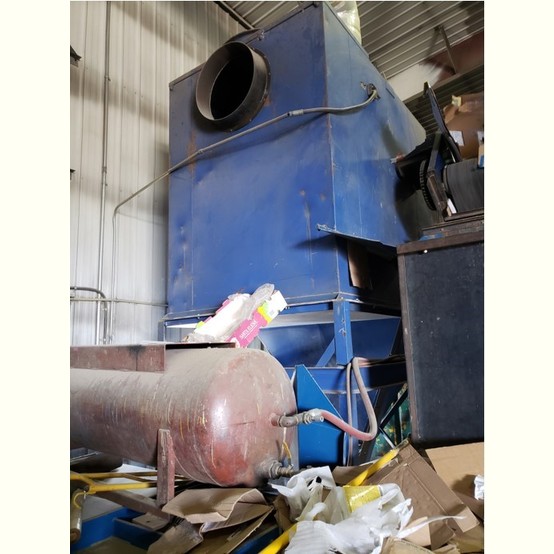

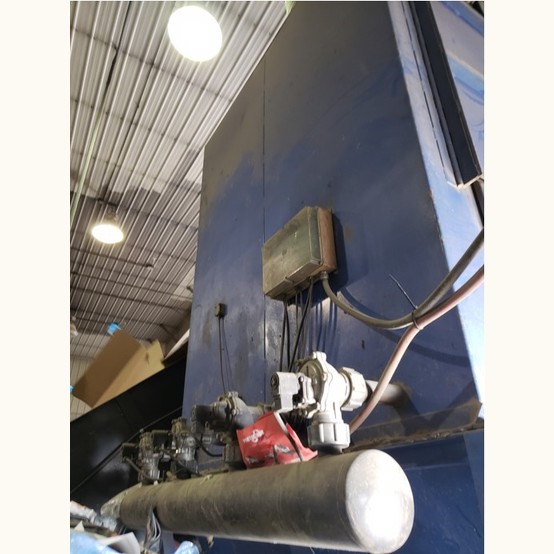

  • Model: DFC-24
  • Description: Dust Collector
  • Manufacturer: Cleanair America
  • CFM: 10,000
  • Cloth Area: 5760 Sq Feet
  • Motor Size: 15 hp
  • Power: 220v/60hz/ 3 phase
  • Weight: unknown
  • Size: 70x110x170in.
  • Media: 24 cartridge filters
  • Dust collector has an air pulse system clean filters at timed intervals and at shut down.
  • Condition: Good Working Order
  • Location: Central Canada
