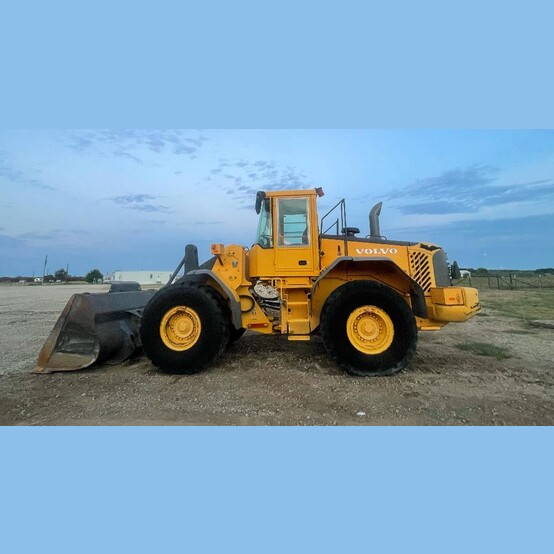

Volvo L120E Wheel Loader

  • Make: Volvo
  • Model: L120E
  • Year: 2003
  • Condition: Used
  • Hours: 12,573 Hours
  • Bucket Capacity: Heaped - 4.32yd³
  • Breakout Force: 35946.95 Lbs
  • Bucket Width: 9.45'
  • Static Tipping Weight: 31261.6 Lbs

  • Engine:
    • Make: Volvo
    • Model: D7D LA E2
    • Cylinders: 6
    • Power Output: 224 HP @1800 RPM
    • Torque Output: 752 lb-ft @ 1400 RPM

  • Transmission:
    • Make: Volvo
    • Model: HTE205
    • 4 Speed Forward, 4 Speed Reverse
    • 22 MPH Top Speed

  • Hydraulic System
    • Relief Valve Setting: 3626 PSI
    • Pump Flow Capacity: 38.4 Gal/Min
    • Raise Time: 5.4 Sec
    • Dump Time: 2.1 Sec
    • Lower Time: 2.5 Sec

  • Additional Information:
    • Fuel Capacity: 56.8 Gallon
    • Hydraulic System Fluid Capacity: 37.8 Gallon
    • Cab Equipped with A.C.
    • Ride Control
    • Ground Clearance: 1.32'
    • Turning Radius: 21.1'
    • 24V Electrical System
    • Rear Axle Oscillation: 26°
    • Tire Size: 23.5R25 L3

  • Overall Dimensions:
    • Length: 27.07' (With Bucket on Ground)
    • Width: 8.8'
    • Height: 11.03'
    • Weight: 41799.7 Lbs

  • Location: USA
