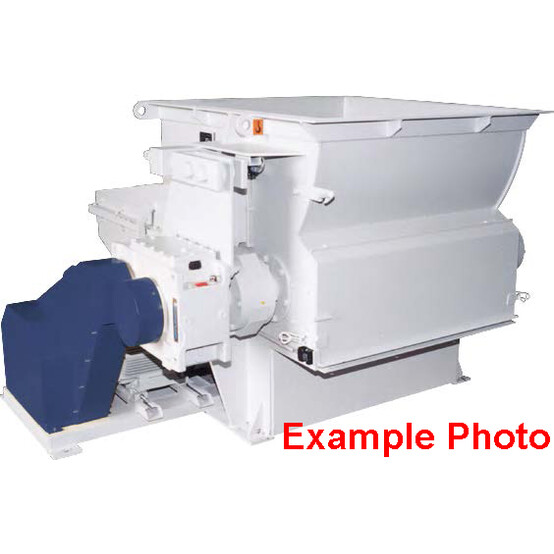

Vecoplan VAZ1100 XL XR Shredder

• Make: Vecoplan
• Model: VAZ1100 XL XR
• Type: Single Shaft Industrial Shredder
• Year: 2023
• Condition: New Surplus, Unused - 6 Months Remaining on Warranty
• Includes:
  • RD-16/16 Discharge Conveyor
  • Lift and Dump System


• General Specifications:
  • VAZ1100 XL XR
    • Hopper Opening: 42in x 51in
    • Hopper Volume: 3.5 Cubic Yards
      • Hopper is Sand Filled for Noise Reduction
    • Rotor Diameter: 15in
    • No. of Cutters: 48 – 4-Way Indexable Cutters
    • Rotor Speed: 120 RPM
    • Screen Size: 1in Screen Currently Installed
    • Feed System: 3HP/2-Speed Hydraulic Ram
    • Machine Weight: 7,500 Lbs.
    • Drive Motor: 60HP
    • Voltage: 460 Volt, 3-Phase, 60Hz
      • Full Load Amps: 170 Amps
    • Allen Bradley Controls:
      • ISO 9001 UL Cert NEMA-4 Panel & Touchscreen
    • Machined Housings (Not Casted)

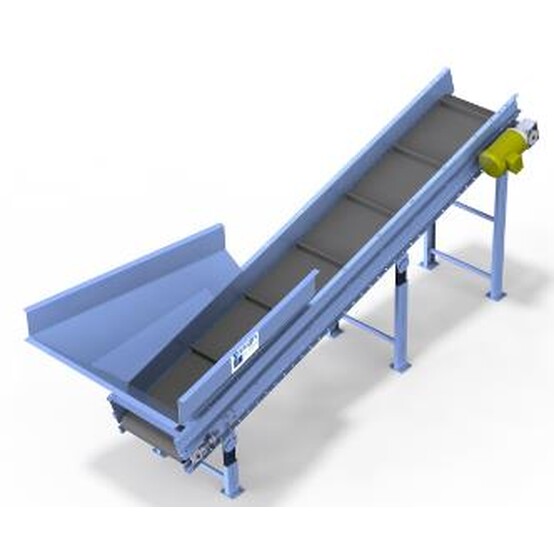

  • RD-16/16 Discharge Conveyor
    • Size: 16in Wide x 16ft Long
    • Speed: 54 FPM @ 2HP
    • V-Guide and Ceramic Mag Head Pulley


  • Lift and Dump System
    • Size: 52in x 42in
    • Dump Height: 8ft
    • Includes Safety Cage and Light Curtain


• Location: Northeast USA
