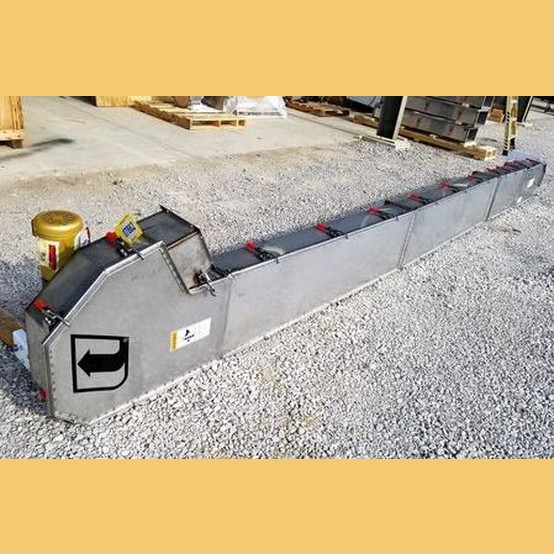

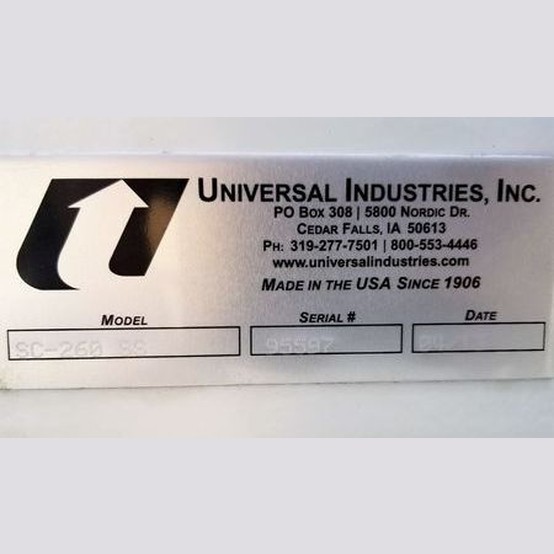

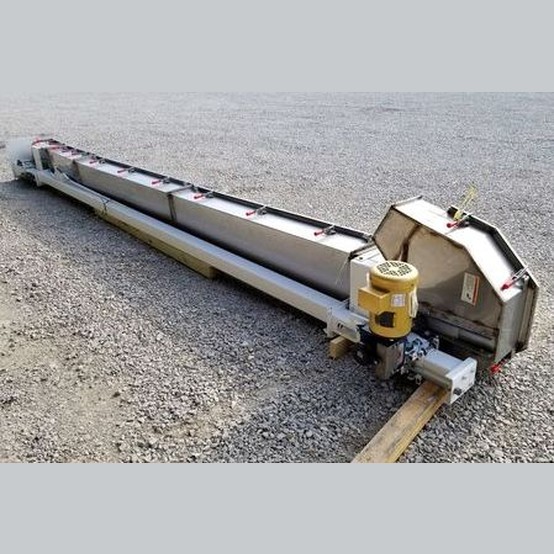

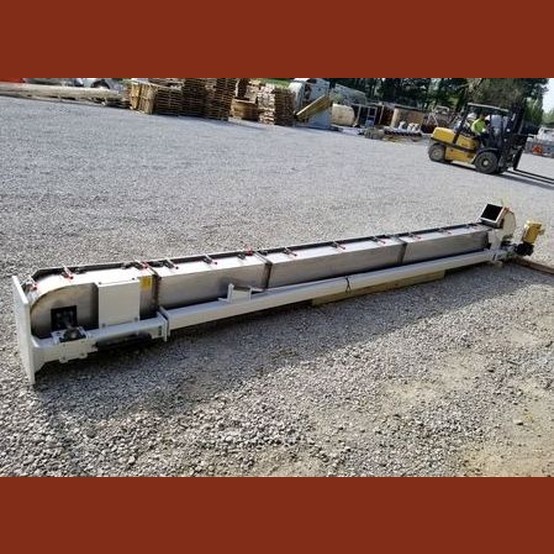

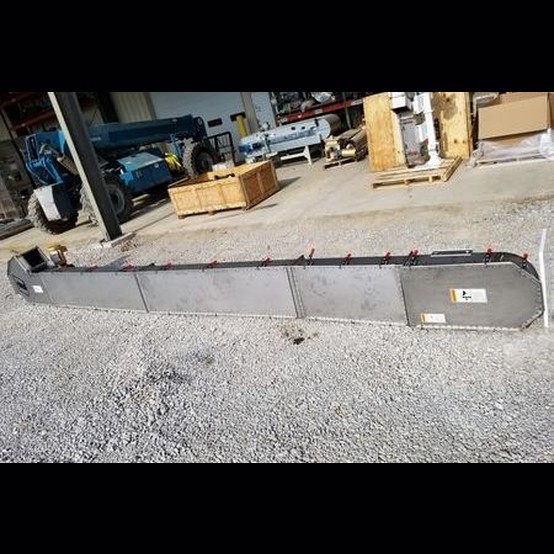

- Model: SC x 18' DH
- 18ft. discharge height
- #4 Drive: Shaft Mount Reducer
- Class I Operation

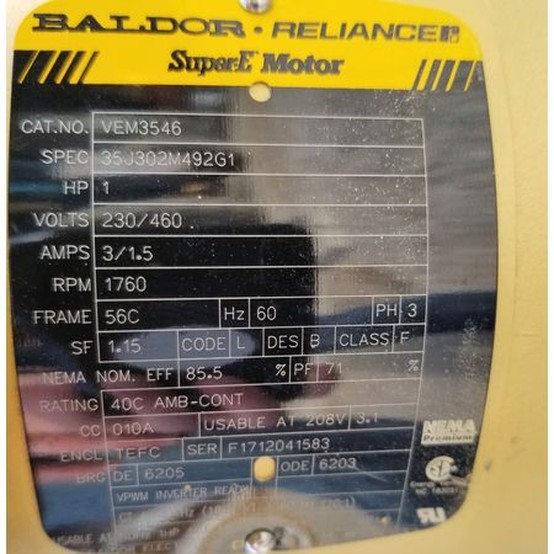

- Motor:
- 1.0 HP
- 3 Phase
- 60 Hz
- 230/460 Volt
- TEFC
- Included w/ Reducer
- Backstop: External Backstop
- Inlet: Spout Hopper
- Buckets: 6.00 x 4.00 HDPE
- Complete with

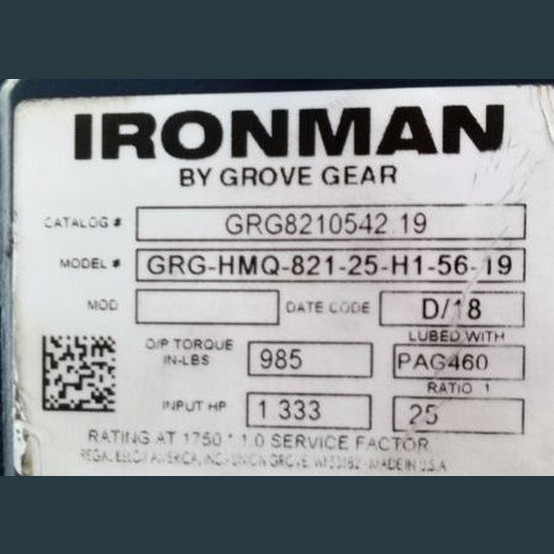

- Drive #4: Shaft Mounted Worm Gear Reducer w/ attached Motor
- 16in. x 8.8in. (inside) Trunk 14 Gauge Construction
- Head Casing: 14 Gauge
- Boot Casing: 14 Gauge Construction
- Head Pulley: 5 ¼in. Dia. x 7in. Wide w/Vulcanized Rubber Lagging
- Boot Pulley: 5in. Dia. x 7in. Cast Nylon Slatted w/ 7/8in. Bushing w/ SS Shaft
- Legging: 14 Gauge Box w/ Hinged Door

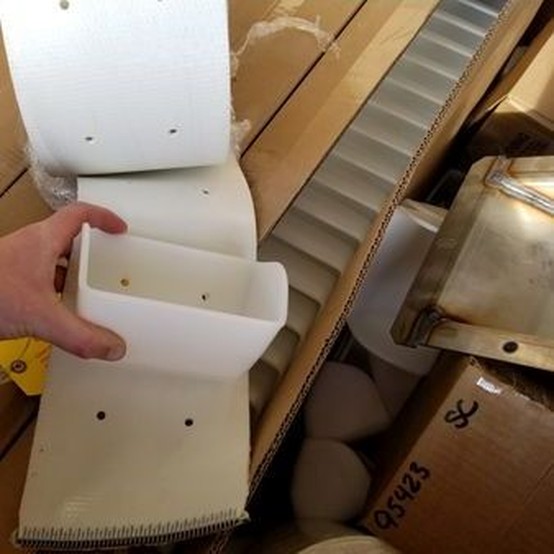

- Belt: 6.5in. Wide Black PVC 120 & Black Bucket Cushions

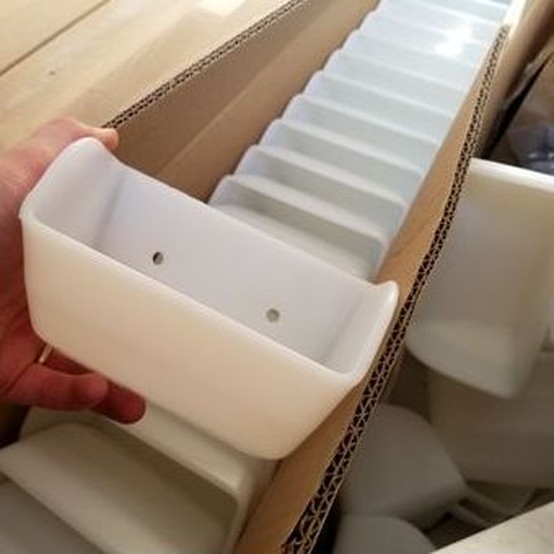

- Buckets: 6in. x 4in. HDPE w/ SS Hardware
- Headshaft 1 3/16in. Dia. - SS
- Hinged Doors
- Support Column & Base - Carbon Steel-Painted White
- Lock Out Switch & Emergency Stop
- Location: Eastern USA
