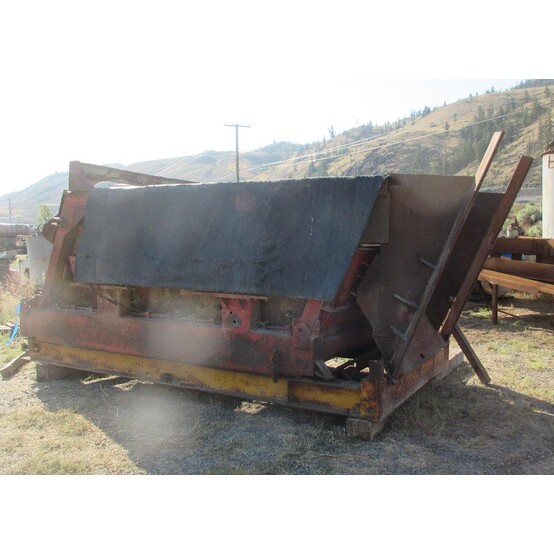

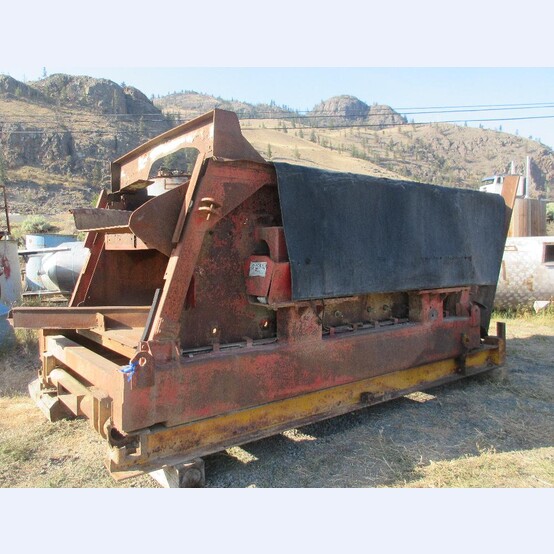

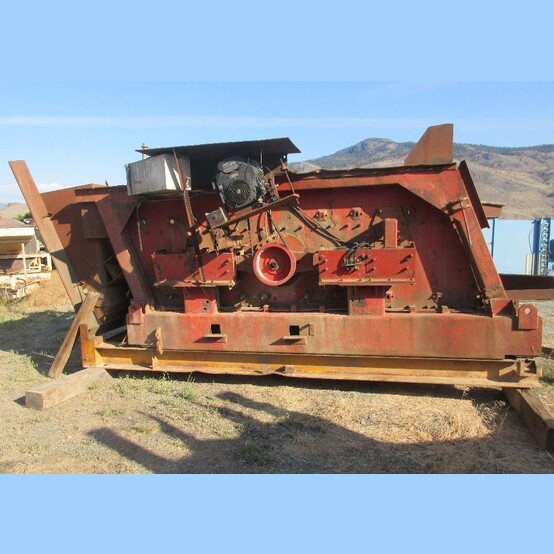

Ty-Rock F-800 2-Deck Screen

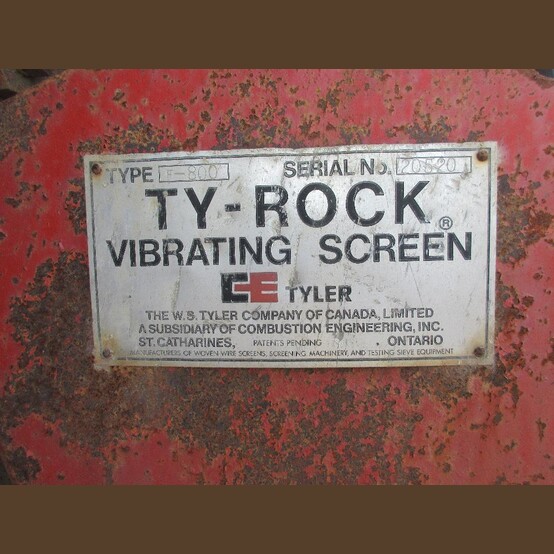

• Make: WS Tyler - Ty-Rock
• Model: F-800
• Serial: 20520
• Type: Inclined Screen
• Style: Heavy Duty
• Condition: Used Condition
• Size: 6ft Wide x 12ft Long

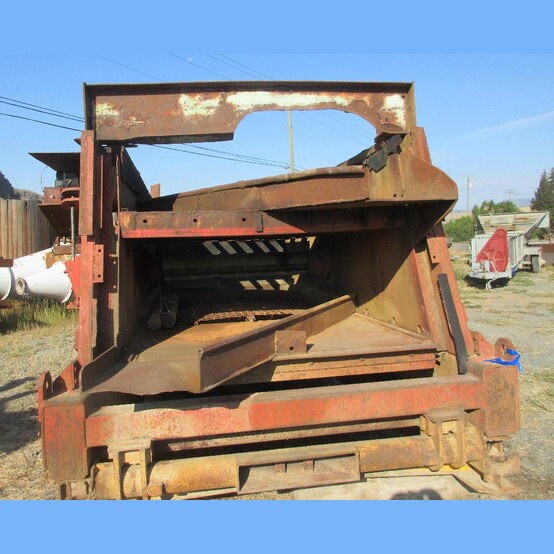

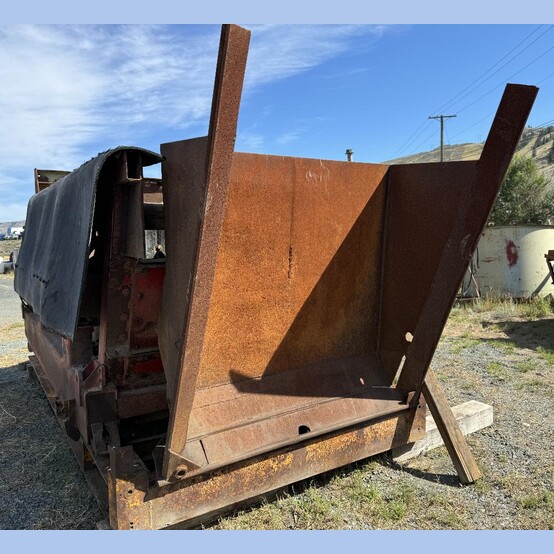

• 6.5ft Wide x 6ft Long Feed Chute
  • Heavy Duty Hinge
    • Adjustable During Operation
    • Collapsible For Transport
• Decks: 2-Deck
  • Top Deck:

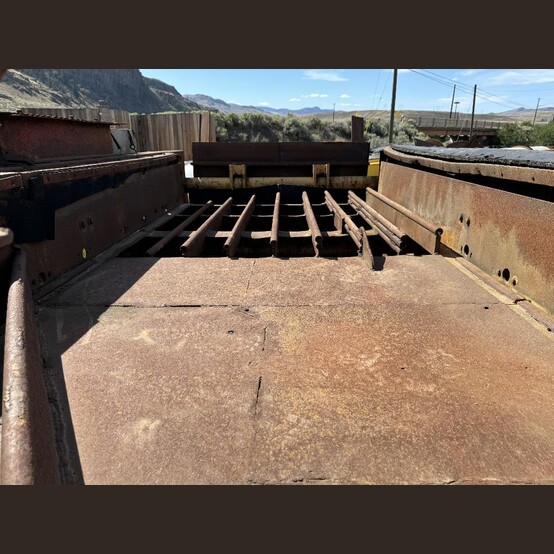

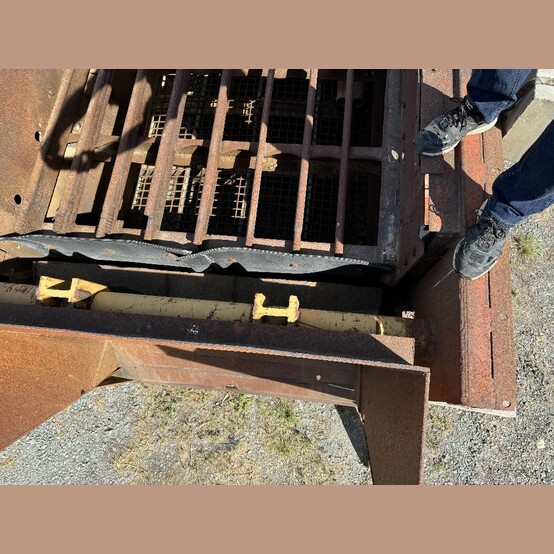

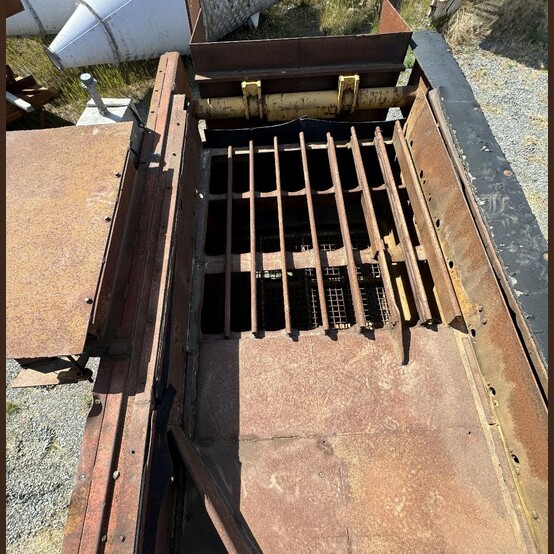

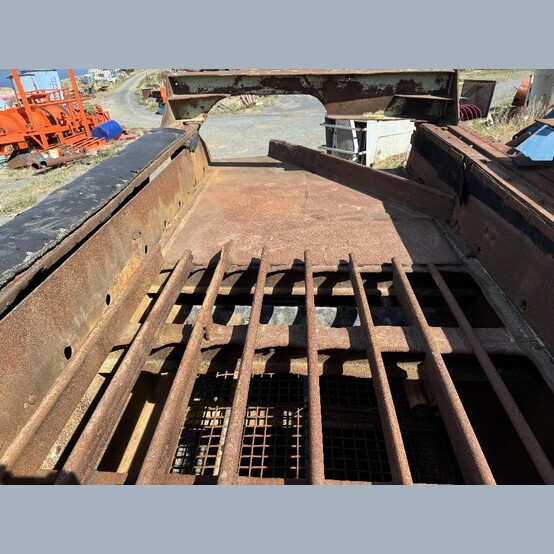

    • 6ft Long Grizzly Section with 7.5in Spacing
    • Balance of Deck is Blank with Diverter Bar so All Material Discharges Off Right Side of Screen

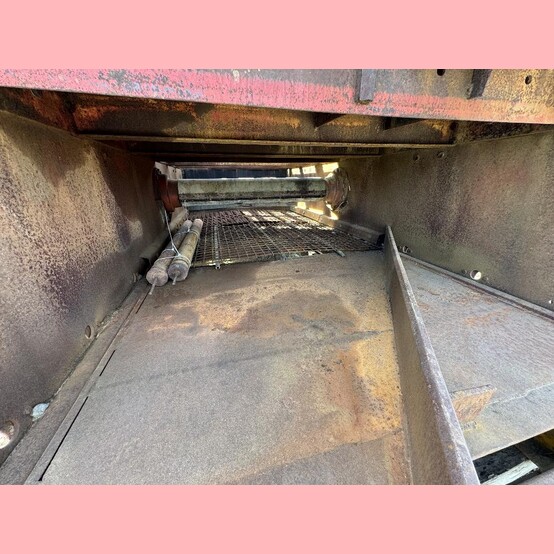

  • Bottom Deck:

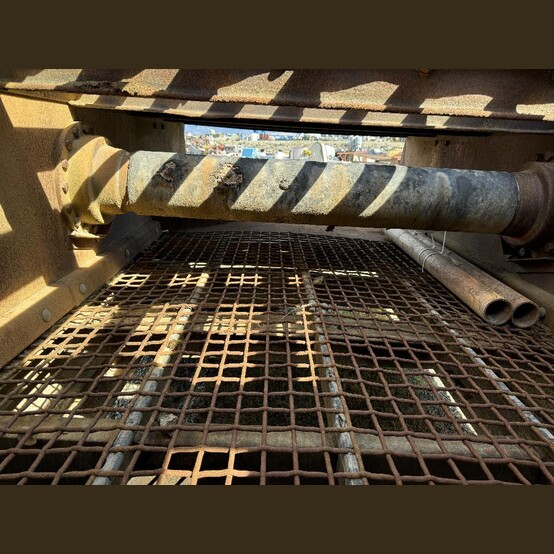

    • 8ft Section of 2in Screen Cloth
    • Balance of Deck is Blank with Diverter Bar so All Material Discharges Off Left Side of Screen

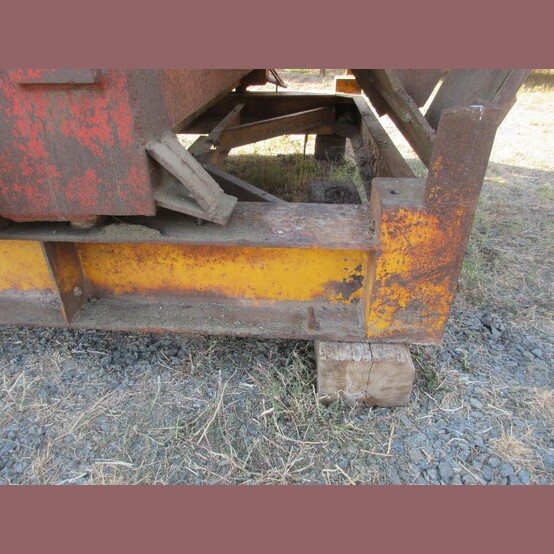

• Skid Mounted on 10in x 10in H-Beam Sub Frame
  • With Heavy-Duty Hinge on Discharge End
    • Can be Used to Adjust Screen Angle while Operating

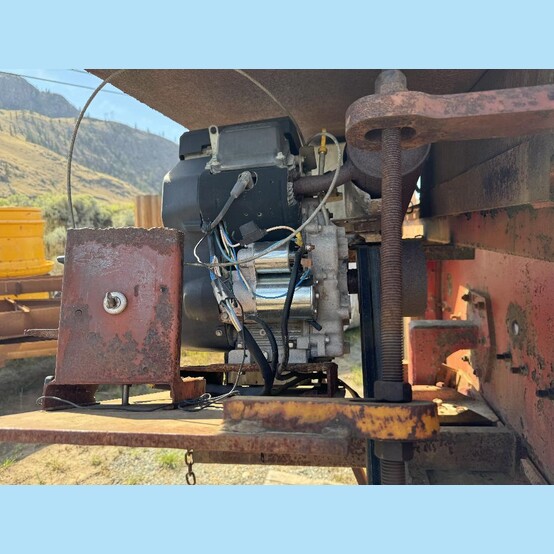

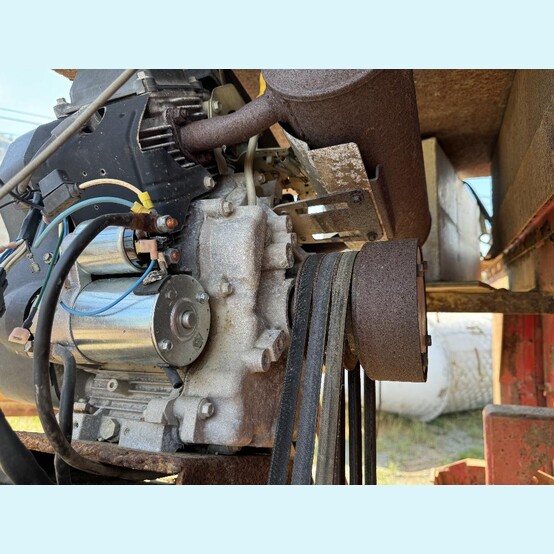

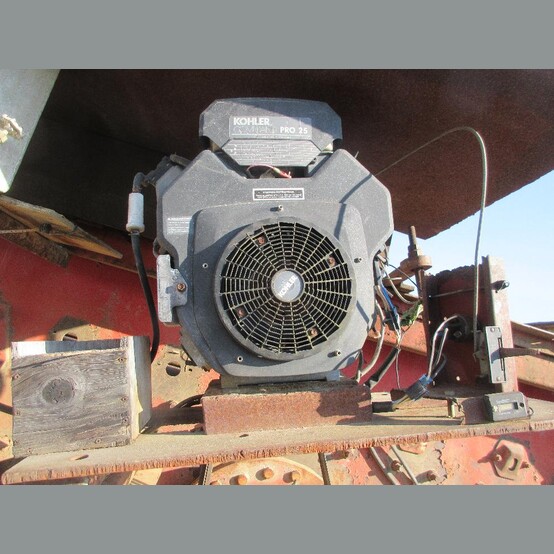

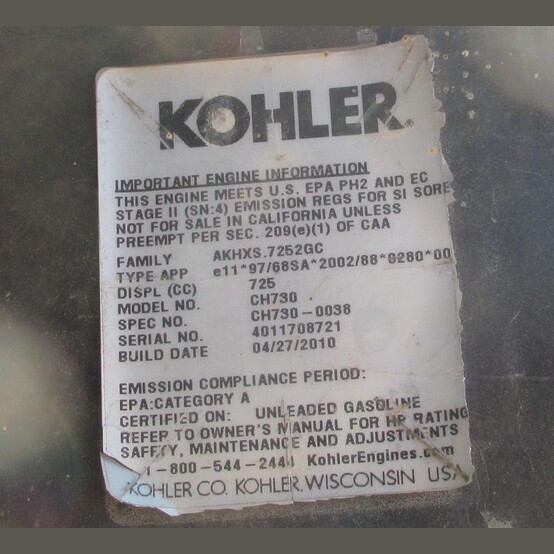

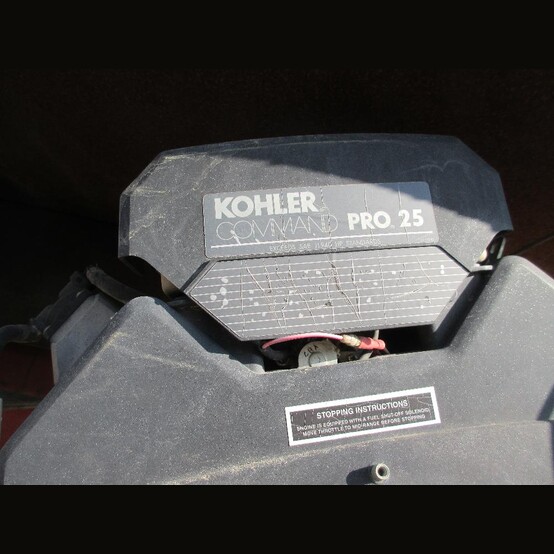

• Drive: Kohler CommandPro Engine
  • Model: CH730
  • Power Output: 25HP
  • Fuel: Gasoline

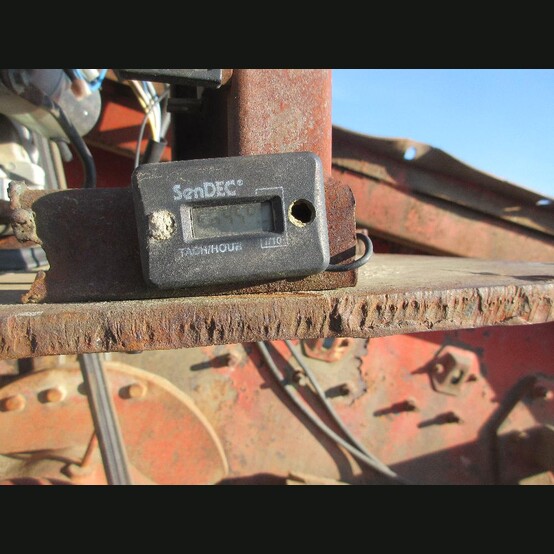

  • Hours: 6,459
  • Electric Start
  • Complete with Clutch

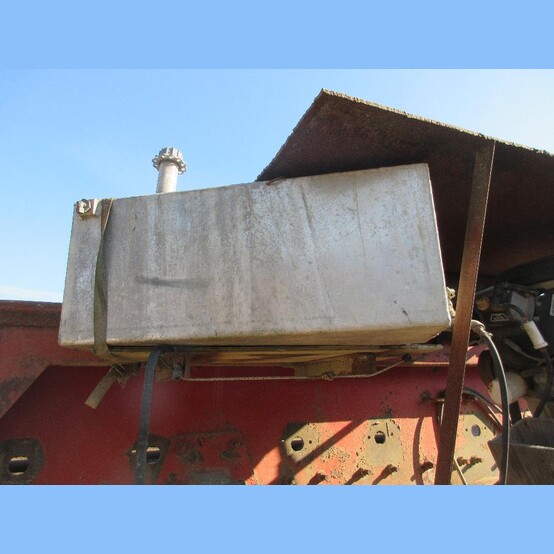

  • Fuel Tank: 65 Liter Tank


• Overall Dimensions:
  • Length: 18ft 8in
  • Width: 10ft 9in
  • Height: 8ft 4in


• Location: Savona, British Columbia, Canada
